Google Workspace SAML Setup

Create a new SAML configuration in Kasm

1. Log into the Kasm UI as an administrator.

2. Select Access Management -> Authentication -> SAML -> Add Configuration.

3. The SAML 2.0 Configuration page will auto-generate the Entity ID, Single Sign On Service, Single Logout Server, and Relay State values.

4. Check Enable, enter the Hostname of the Kasm Workspaces URL (e.g kasm.example.com) and enter a Display Name. e.g (Login with Google).

5. Update the following Settings:

Setting	Value
Group Member Attribute	groups
NameID Attribute	emailAddress
Want Attribute Statement	Unchecked
Want Assertions Signed	Unchecked
Want Messages Signed	Checked
Want Name ID	Checked
Signature Algorithm	rsa-sha256
Digest Algorithm	sha256

6. Leave this page open and continue to the next steps.

Add a new application in Google Workspace

1. Open the Google Admin Console, Expand Apps, then Select Web and mobile apps.

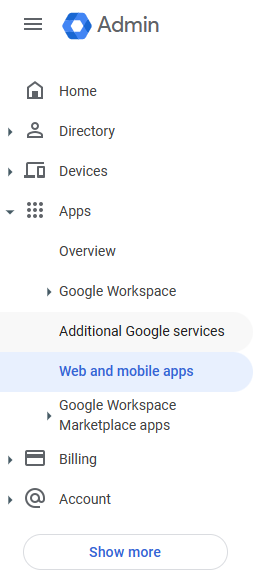

Portal Navigation

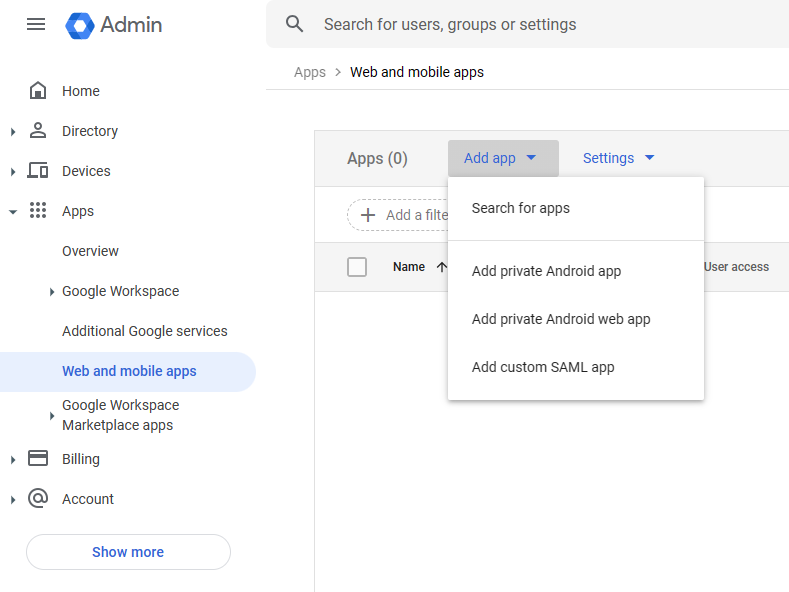

2. Select Add app, then click Add custom SAML app.

SAML Apps

3. Enter an App name (e.g Kasm Workspaces) then select Continue.

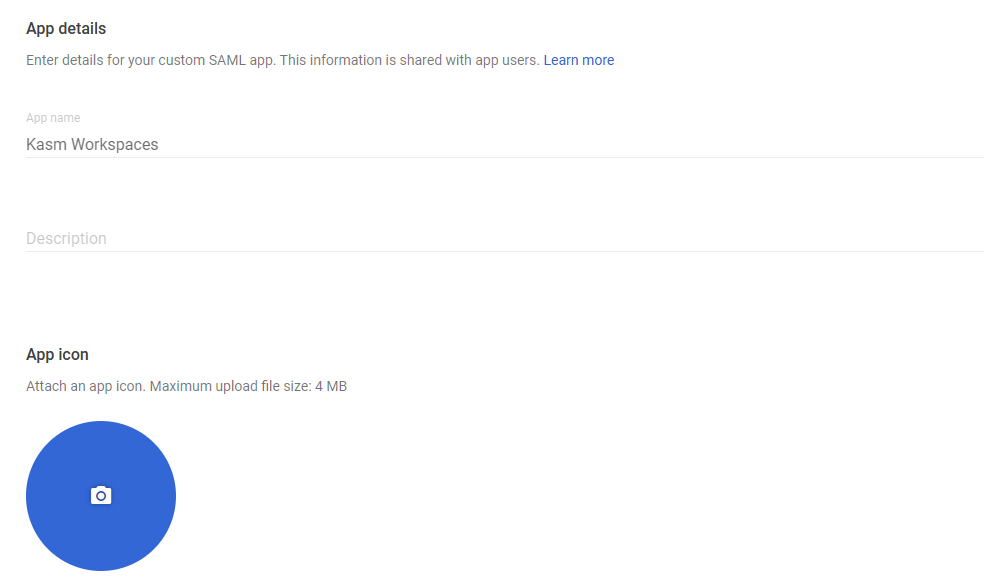

Add Applications

4. Copy the Google IdP entries to the Identity Provider section of the Kasm SAML Configurations started in the previous section. Then click Continue.

Kasm Property Name	Google Workspace Property Name
Entity ID	Entity ID
Single Sign On Service	SSO URL
X509 Certificate	Certificate

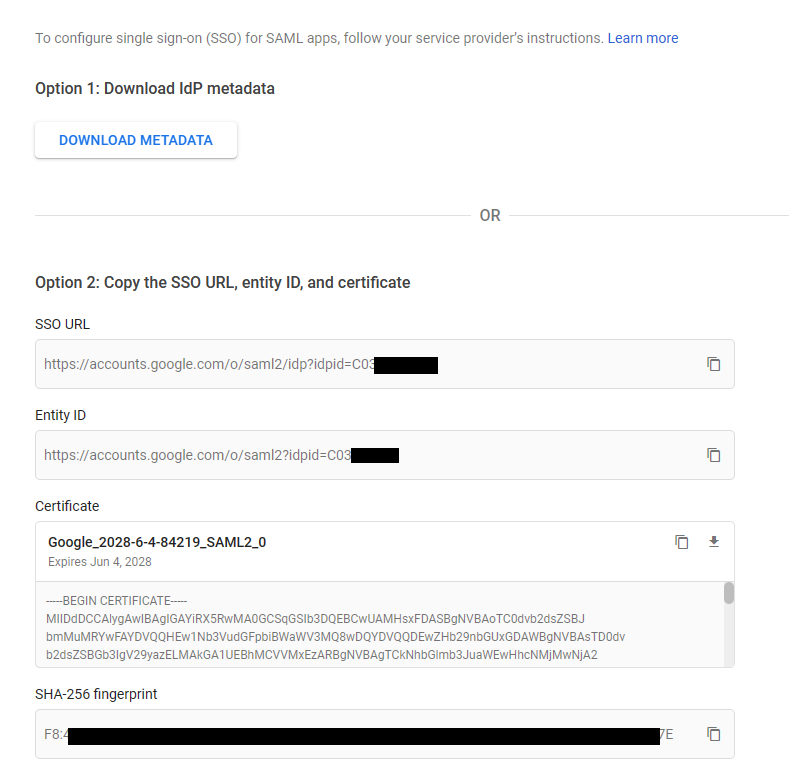

Google IdP Information

5. Copy the Kasm SAML configurations from the Service Provider section into the Service Provider Details section.

Kasm Property Name	Google Workspace Property Name
Entity ID	Entity ID
Single Sign On Service	ACS URL
https://<server-url>/#/staticlogin e.g https://kasm.example.com/#/staticlogin	Start URL

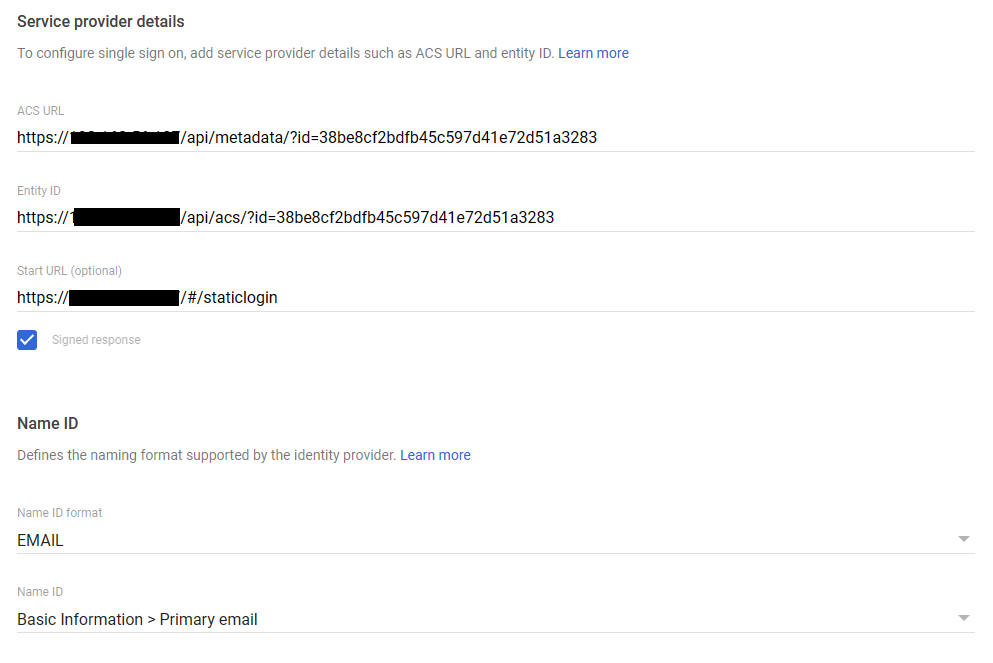

Service Provider Details

6. Ensure the following settings are configured in the Google Workspace Service Provider Details . Select Continue.

Setting	Value
Signed Response	Checked
Name ID	Basic Information / Primary Email
Name ID Format	EMAIL

7. If desired, select Google groups to pass to Kasm in the SAML assertion. Ensure the App attribute is set to groups to match the Group Membership Attribute previously configured in the Kasm SAML settings. In this example, a previously created security group KasmAdmins is selected. When complete, select Finish.

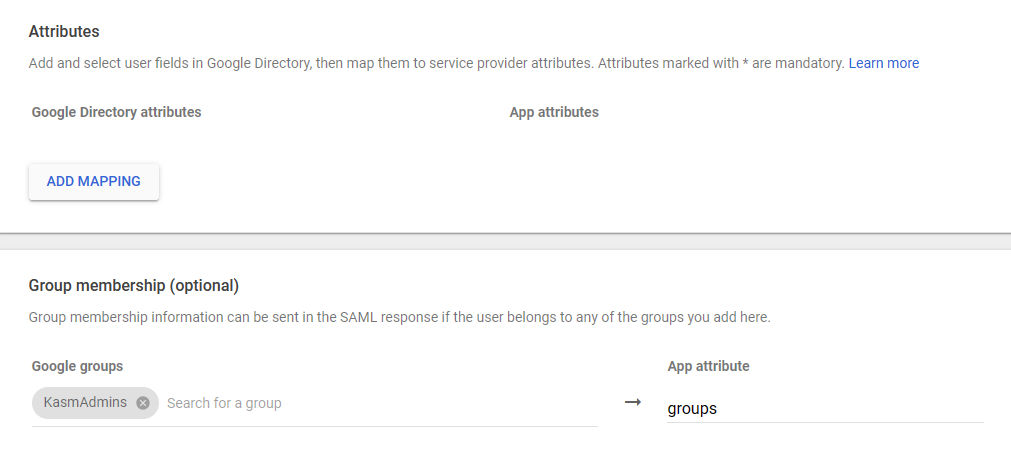

Group Mempership mapping

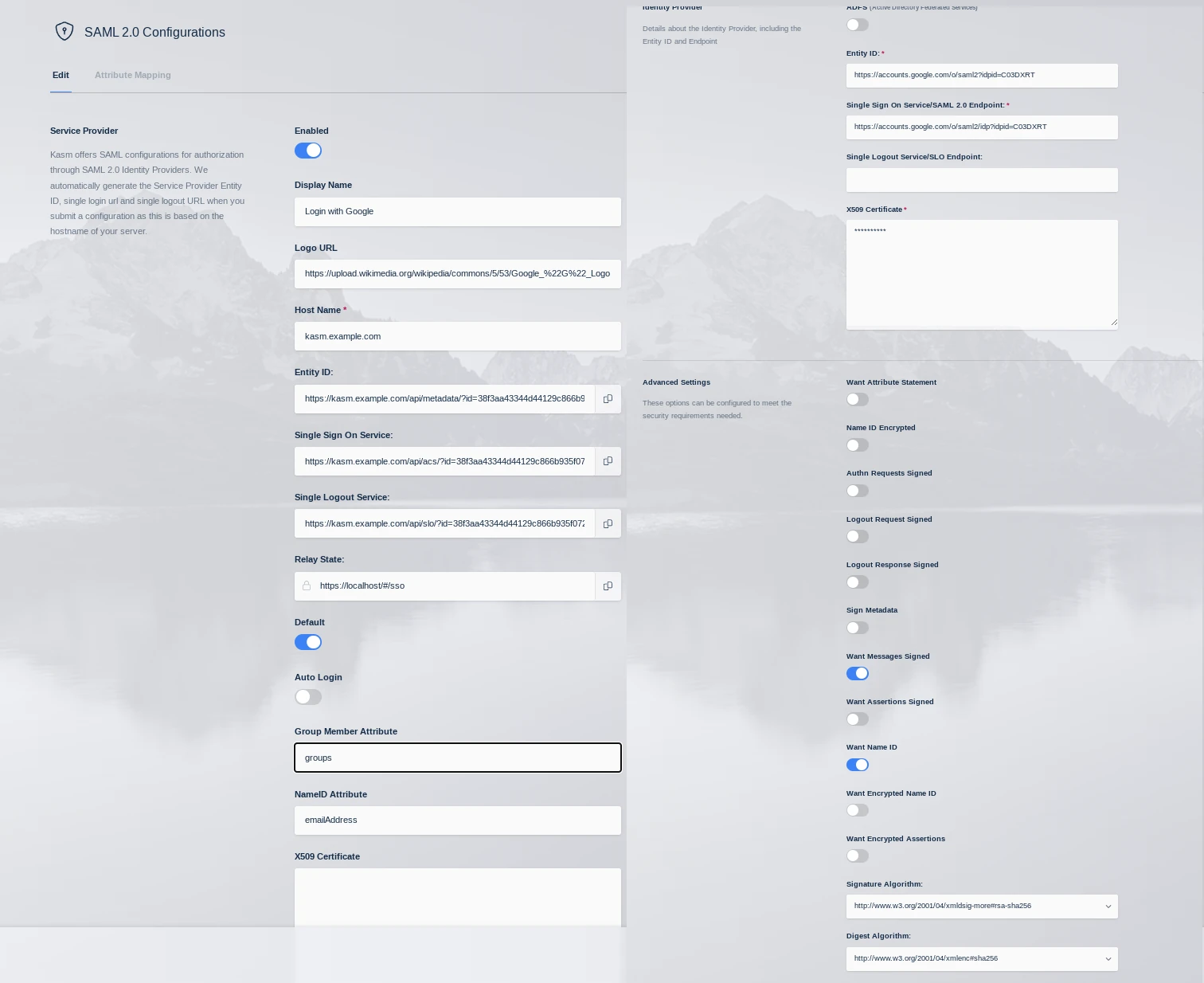

10. Review the final Kasm SAML Configuration form. Click Sumbit to save.

Google SAML Config

Enabling Access for Users

Once the Kasm SAML app is configured , access must be granted to Google users.

1. From the Google Admin Admin Console Expand Apps, then Select Web and mobile Apps, then select Kasm Workspaces

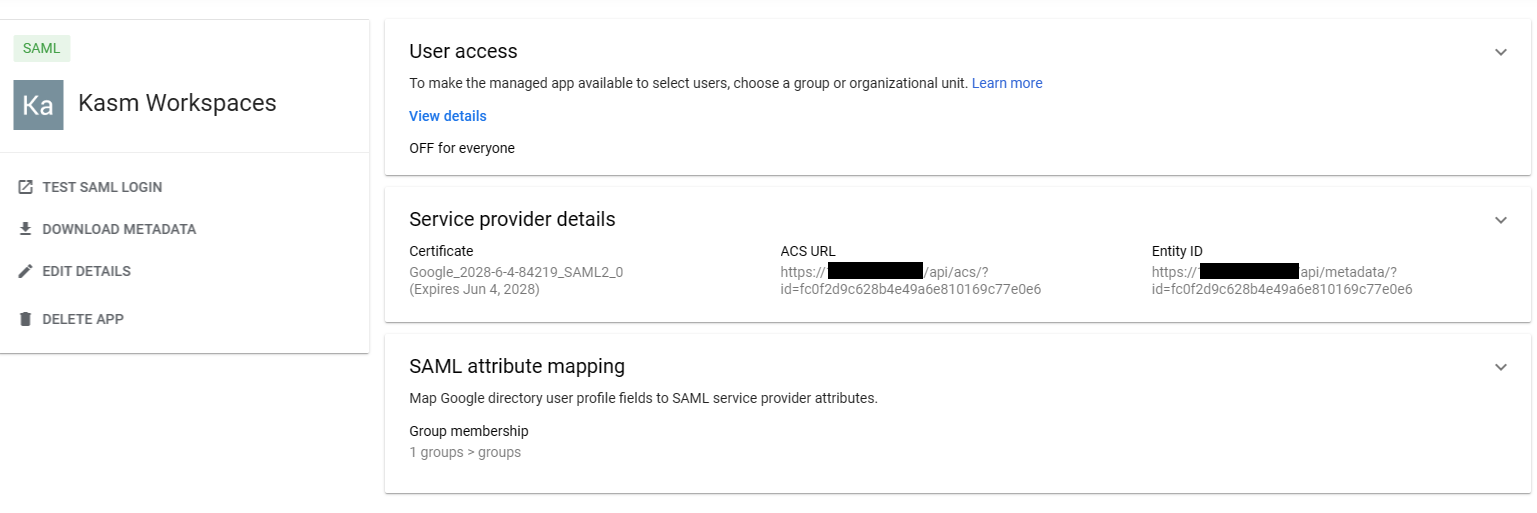

2. Click User Access

Edit Service

3. Select ON for everyone or for the desired Organizational Units or Groups, then click Save

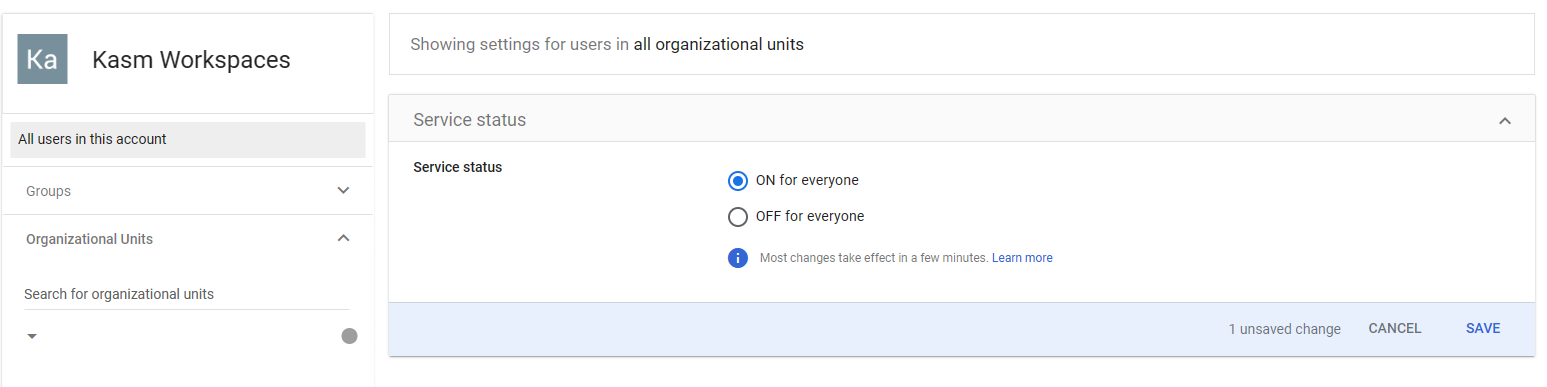

Giving App Access

Group Mappings

In the previous steps, the Google Workspace SAML configuration was configured to pass the KasmAdmin security group in the SAML assertion. The following example will demonstrate how to associate the Google group with a Kasm Group.

1. Log into the Kasm UI as an administrator.

2. Select Access Management -> Groups then select Edit next to the Administrators Group.

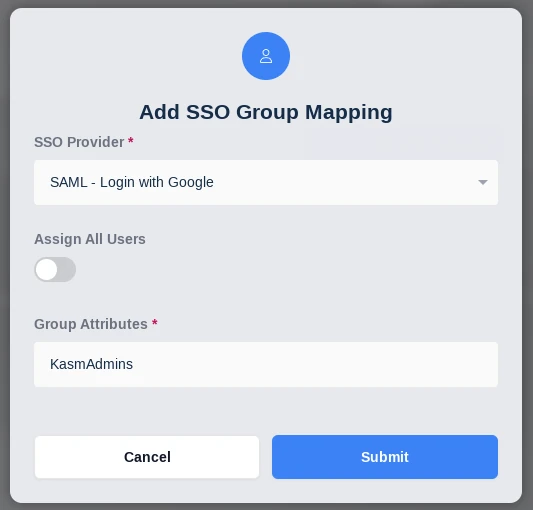

3. In the SSO Group Mappings section, select Add SSO Mapping.

4. Select SAML-Login with Google in the SSO Provider* section.

5. Enter KasmAdmins in the Group Attribute section.

SSO Group Mapping

Testing Access

1. Log out of the Kasm UI if already logged in.

2. Navigate to the Kasm UI login page.

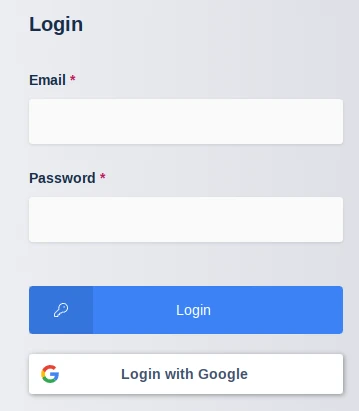

Kasm Login

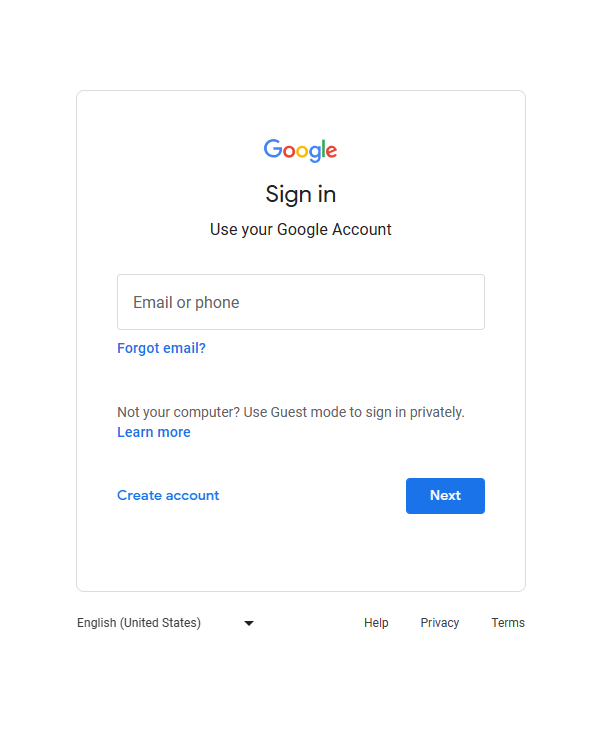

3. Click Login with Google to initiate the SAML SSO process.

Google Login

4. After logging in, you should be redirected to the Kasm UI Dashboard. If the user was a member of the KasmAdmins Google group, they should now be a member of the Administrators group within Kasm.

5. From another browser, login to Google. Click the Google Apps icon in the top right corner. Scroll down and click Kasm. You should be logged into the Kasm UI Dashboard.

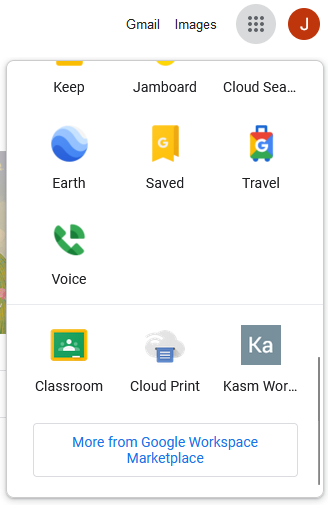

Kasm App in Google Apps
