Sessions

Administrators can view the active sessions by visiting the Sessions page from the Admin panel.

../_images/sessions_table.webp

Active Sessions

Clicking the arrow for the session will present a list of potential actions:

  • View - View more details about the session.

  • Stop - The session is stopped, preserving the disk state. Sessions resumed from a stopped state will have the previous files intact, but previously running programs will need to be restarted. This option is applicable to container-based Workspaces only.

  • Pause - The session is paused, preserving the disk, process and memory state. Paused sessions will still consume resources in physical memory and/or swap. Sessions resumed from a paused state will still have the previous programs launched and active. This action is only applicable to container-based Workspaces.

  • Start - Re-start a stopped or paused session.

  • Delete - The session is deleted.

Create Image from Session

Administrators can create new docker images from active container-based Workspace sessions. While it is recommended to utilize a more formal build process for creating images, automatically creating them from active sessions presents a simple process creating images that may require steps that cannot be automated.

  1. From the Sessions page, click the arrow to show the actions menu.

  2. Select Create Image

../_images/actions.webp

Create Image Icon

  1. A form is displayed. The only required entry is New Docker Image (repo + tag). A name will automatically be generated with the current date and time. If registry information is provided, the system will attempt a push of the newly created image.

../_images/create_image.webp

Create Image from Session

The Additional Changes field accepts a limited number of DOCKERFILE instructions that can be called during the commit. The following instructions are supported: CMD|ENTRYPOINT|ENV|EXPOSE|LABEL|ONBUILD|USER|VOLUME|WORKDIR See https://docs.docker.com/engine/reference/commandline/commit/ for more details.

Below are examples of Image/Registry configurations for common Docker registries.

Field

Value

New Docker Image

myrepo/firefox:2023-03-13.00.40

Registry URL

https://index.docker.io/v1/

When finished, click Submit.

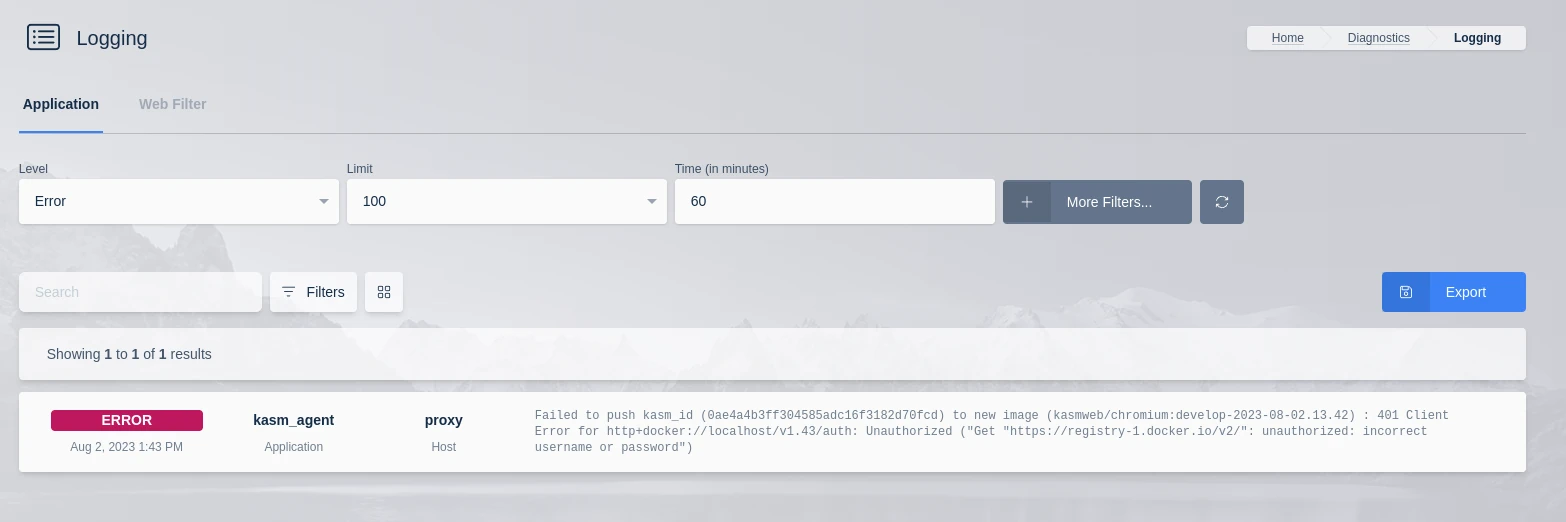

  1. A task will be sent to the Kasm Agent, to conduct a docker commit with the new image, and if configured in the previous from will attempt a docker push to the registry provided. This is a background task, so administrators may need to review the logs to identify failures in the process. For example, an error is shown below for a failed image push.

../_images/example_error.webp

Example Error

  1. A Workspace entry is automatically created and presented to the Administrator for additional configurations. When complete, click Submit

../_images/update_workspace.webp

Update Workspace

  1. Back on the Workspace Launcher, the new Workspace should be visible. (e.g Snapshot of Firefox - (develop-2023-03-12.23.44)) . If the commit succeeds, the image will be marked as available. Depending on the size of the image, this process may take several minutes.

../_images/launcher.webp

Workspaces Launcher
