Exporting Configuration Schema

Administrators are also able to export the system configuration schema ( data structure ). This may be helpful when constructing a custom yaml configuration and is analogous to a database schema dump. Like the import and export files, this will include a matching Configuration Schema Versioning and Details

1. Log into the Workspace UI as an administrator.

2. From the Admin panel, select Diagnostics -> System Info from the menu.

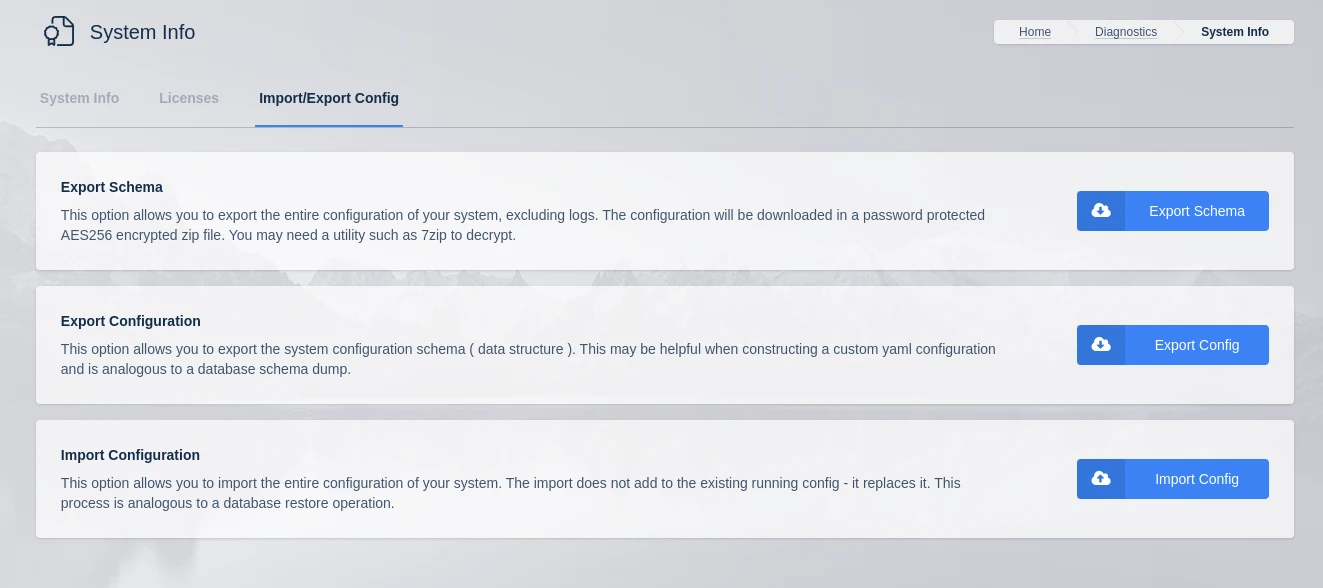

3. Navigate to the Import/Export Config tab and Click the Export Schema button.

Export Schema

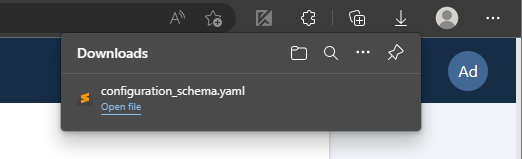

4. The configuration schema will be downloaded as a yaml file.

Schema Download

Example Export

Below is a short example snippet of the yaml based configuration schema export.

Exported Configuration Schema Snippet

  alembic_version: 52136dd39702
  images:
      allow_network_selection:
        required: false
        type: BOOLEAN
      available:
        required: false
        type: BOOLEAN
      categories:
        required: false
        type: JSON
      cores:
        required: false
        type: FLOAT
      cpu_allocation_method:
        required: false
        type: VARCHAR
      description:
        required: false
        type: VARCHAR
      docker_registry:
        required: false
        type: VARCHAR
      docker_token:
        required: false
        type: VARCHAR
      docker_user:
        required: false
        type: VARCHAR(255)
      enabled:
        required: false
        type: BOOLEAN
      exec_config:
        required: false
        type: JSON
      filter_policy_force_disabled:
        required: false
        type: BOOLEAN
      filter_policy_id:
        foreign_key: filter_policies.filter_policy_id
        required: false
        type: UUID
      friendly_name:
        required: false
        type: VARCHAR(255)
      gpu_count:
        required: false
        type: INTEGER
      hash:
        required: false
        type: VARCHAR(255)
      hidden:
        required: false
        type: BOOLEAN
      image_id:
        required: false
        type: UUID
      image_src:
        required: false
        type: VARCHAR(255)
      image_type:
        required: false
        type: VARCHAR
      link_url:
        required: false
        type: VARCHAR
      memory:
        required: false
        type: BIGINT
      name:
        required: false
        type: VARCHAR(255)
      notes:
        required: false
        type: VARCHAR
      persistent_profile_path:
        required: false
        type: VARCHAR
      require_gpu:
        required: false
        type: BOOLEAN
      restrict_network_names:
        required: false
        type: JSON
      restrict_to_network:
        required: false
        type: BOOLEAN
      restrict_to_server:
        required: false
        type: BOOLEAN
      restrict_to_zone:
        required: false
        type: BOOLEAN
      run_config:
        required: false
        type: JSON
      server_id:
        foreign_key: servers.server_id
        required: false
        type: UUID
      server_pool_id:
        foreign_key: server_pools.server_pool_id
        required: false
        type: UUID
      session_time_limit:
        required: false
        type: INTEGER
      volume_mappings:
        required: false
        type: JSON
      x_res:
        required: false
        type: INTEGER
      y_res:
        required: false
        type: INTEGER
      zone_id:
        foreign_key: zones.zone_id
        required: false
        type: UUID
