Google GSuite SAML Setup

Create a new SAML configuration in Kasm

1. Log into the Kasm UI as an administrator.

2. Select Authentication -> SAML -> Create New Configuration

3. The SAML 2.0 Configuration page will auto-generate the Entity ID, Single Sign On Service, Single Logout Server, and Relay State values.

4. Check Enable and enter a Display Name. e.g (Gsuite)

5. Update the following Settings

Setting	Value
NameID Attribute	emailAddress
Want Attribute Statement	Unchecked
Want Message Signed	Checked
Want Name ID	Checked
Signature Algorithm	rsa-sha256
Digest Algorithm	sha256

6. Leave this page open and continue to the next steps.

Add a new application in GSuite

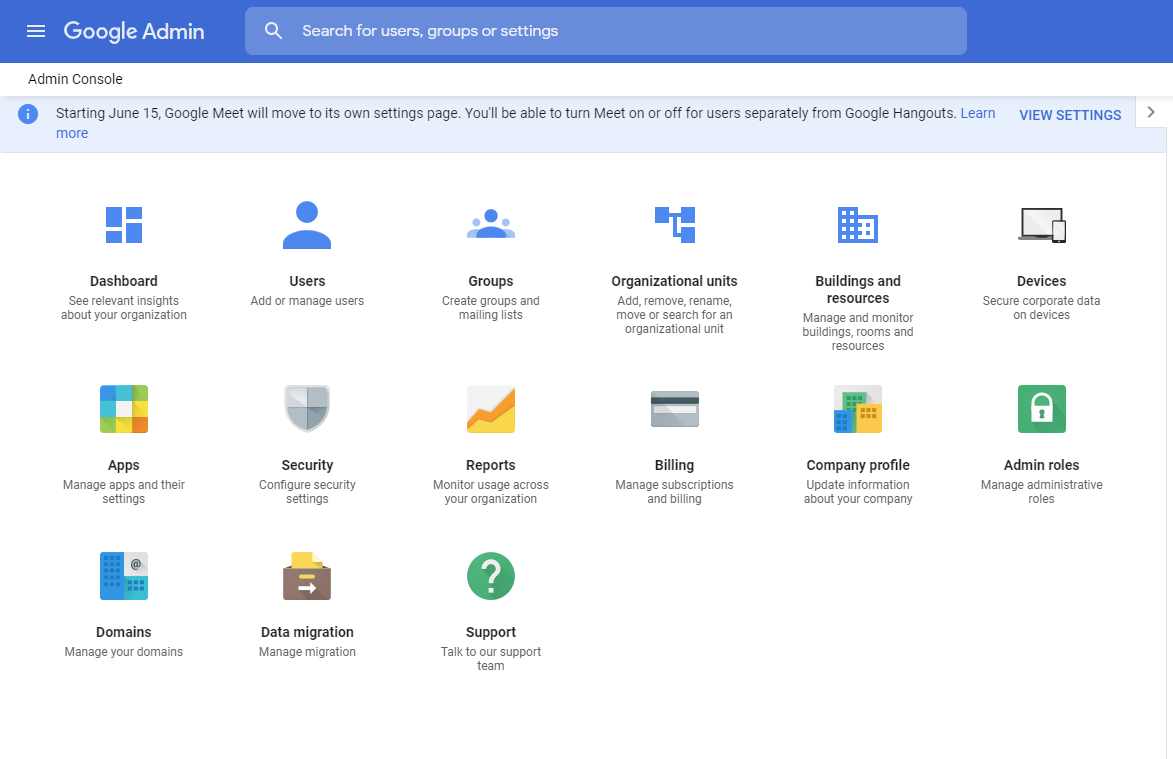

1. Open the Google Admin Admin Console and Select Apps.

Google Portal

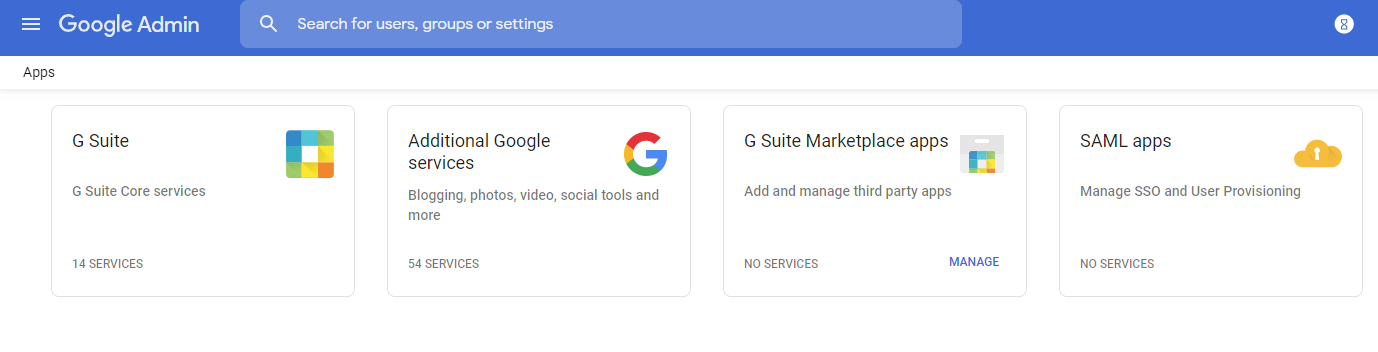

2. Select SAML apps.

SAML Apps

3. Click the Plus button to add a new SAML App

Add Applications

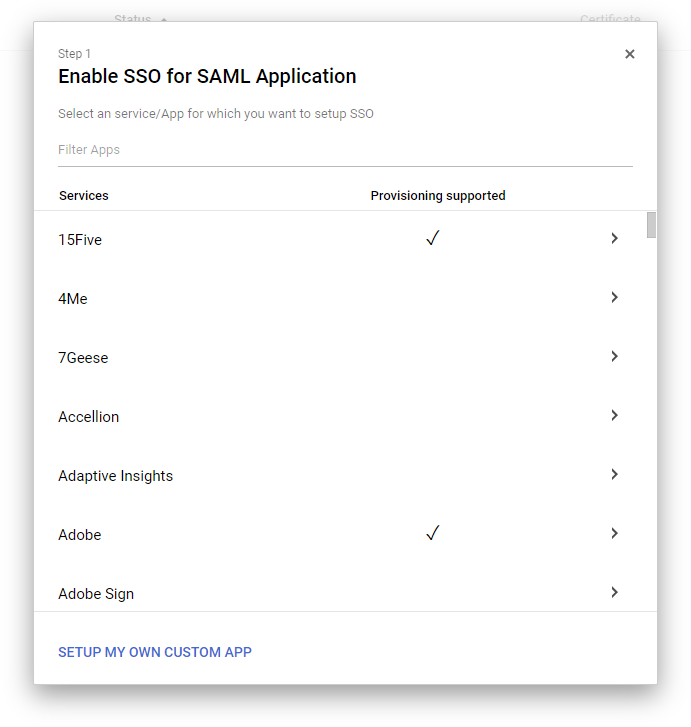

4. Click Setup My Own Custom App

Setup Custom App

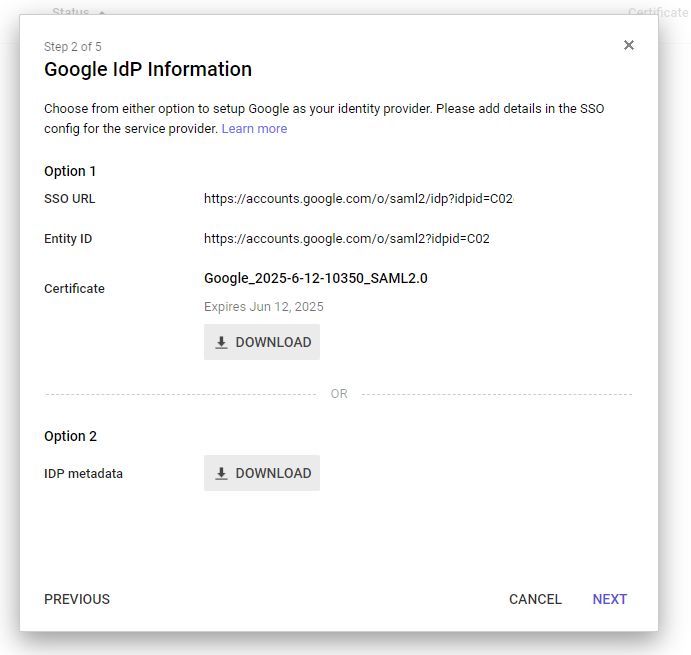

5. Copy the Google IdP entries to the Identity Provider section of the Kasm SAML Configurations started in the previous section.

Kasm Property Name	GSuite Property Name
Entity ID	Entity ID
Single Sign On Service	SSO URL

Google IdP Information

6. Click Download to download the Certificate from the Google IdP Information form. Open the certificate file in a text editor. Copy the contents and paste into the x509 Certificate in the Identity Provider provider section of the Kasm SAML Configuration

Identity Provider Configuration

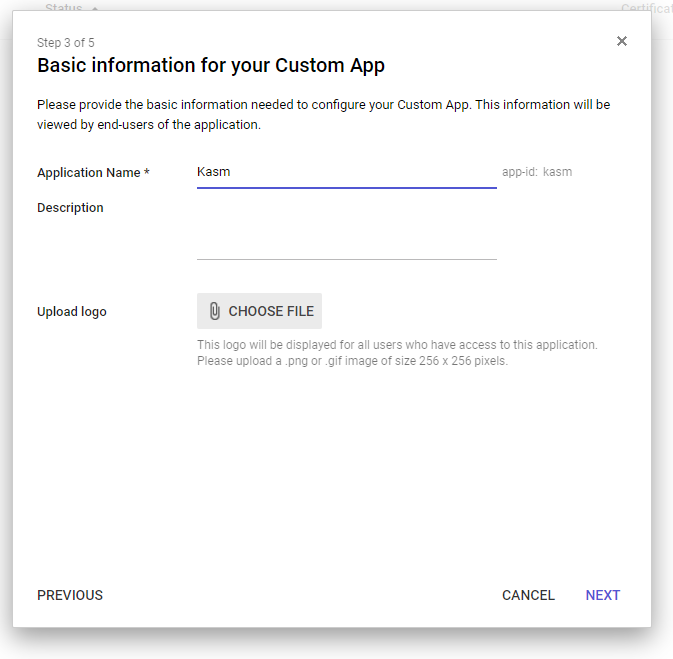

7. Click Next in the Google IdP Information window to be taken to the Basic Information for your Custom App section. Enter an Application Name (e.g Kasm) and click Next

Basic Information

8. Copy the Kasm SAML configurations from the Service Provider section into the Service Provider Details section.

Kasm Property Name	GSuite Property Name
Entity ID	Entity ID
Single Sign On Service	ACS URL
https://<server-url>/#/staticlogin e.g https://kasm.server/#/staticlogin	Start URL

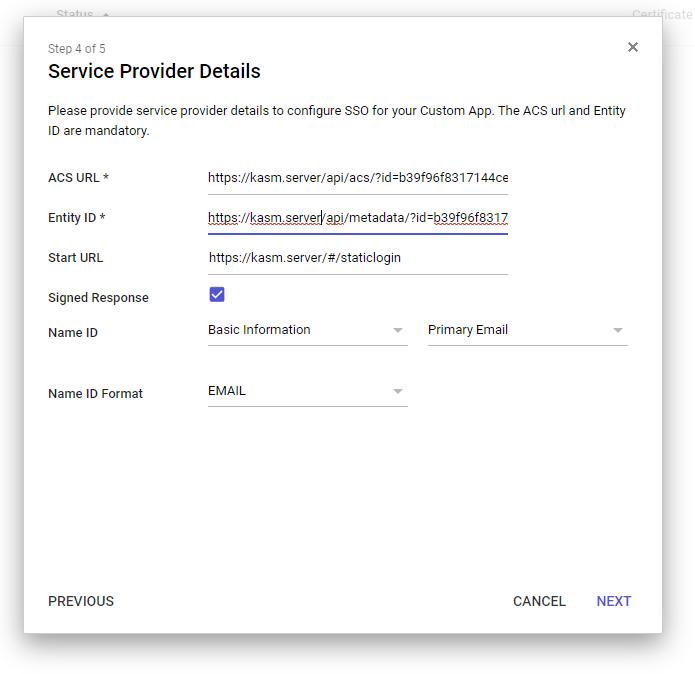

9. Ensure the following settings are configured in the GSuite Service Provider Details . Select Next

Setting	Value
Signed Response	Checked
Name ID	Basic Information / Primary Email
Name ID Format	EMAIL

Service Provider Details

9. No additional configurations are needed on the Attribute Mapping page . Select Finish

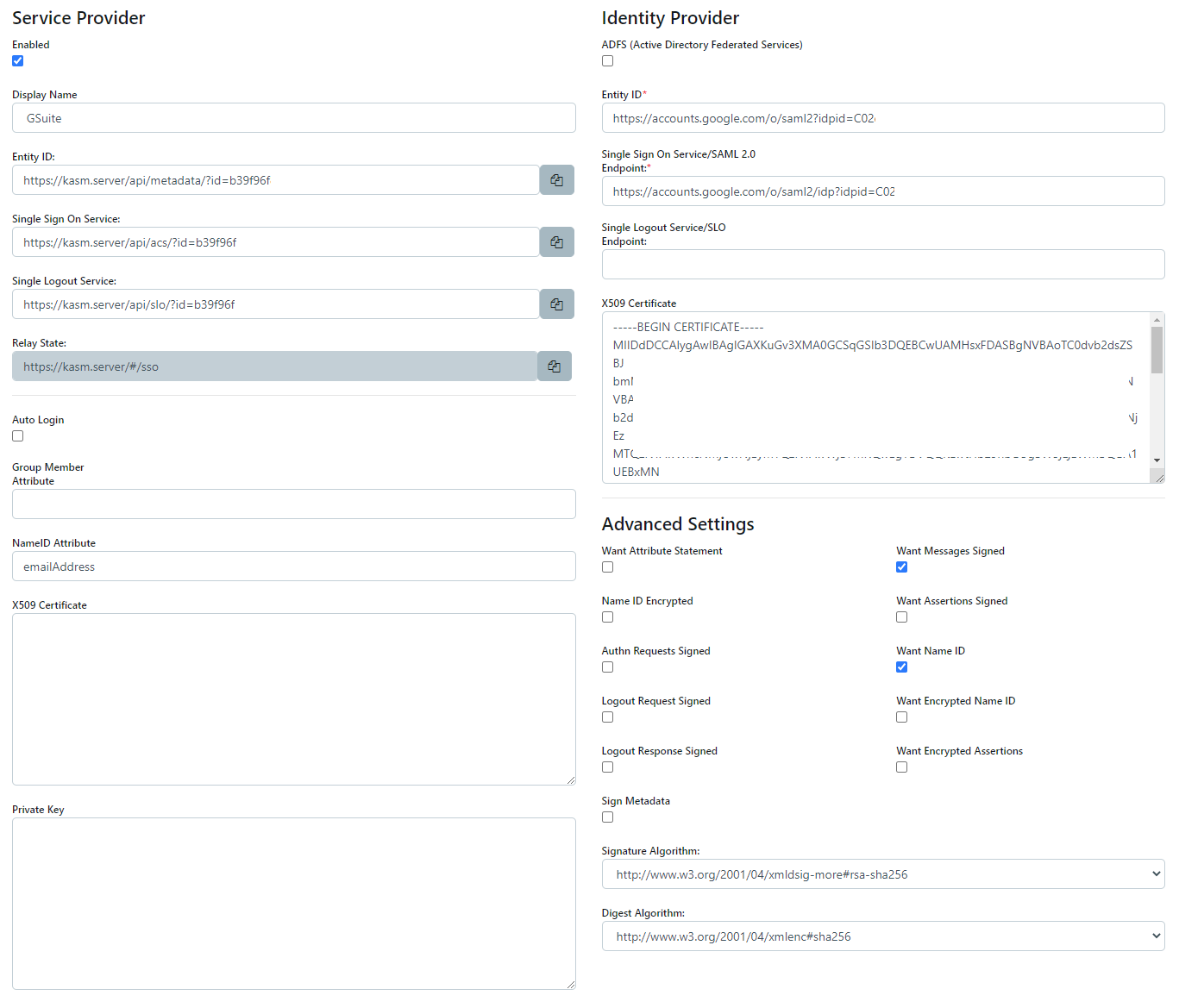

10. Review the final Kasm SAML Configuration form. Click Sumbit to save.

Enabling Access for Users

Once the Kasm SAML app is configured in GSuite, access must be grated to Google users.

1. From the Google Admin Admin Console Select Apps -> SAML Apps -> Kasm

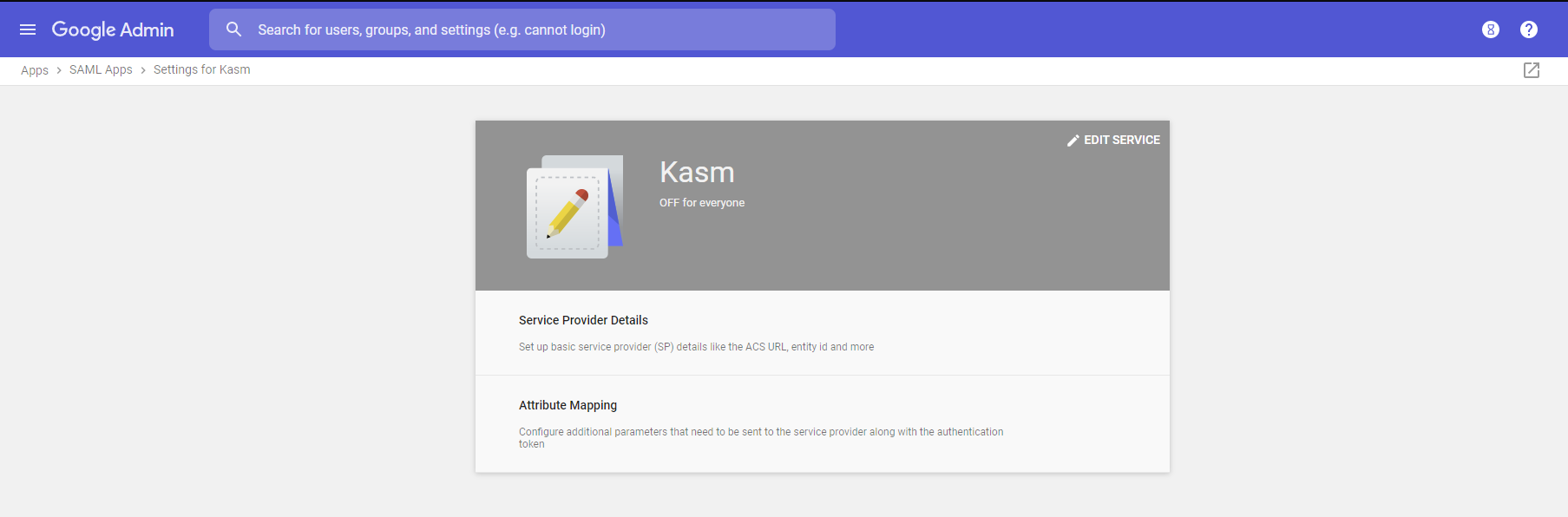

2. Select Edit Service

Edit Service

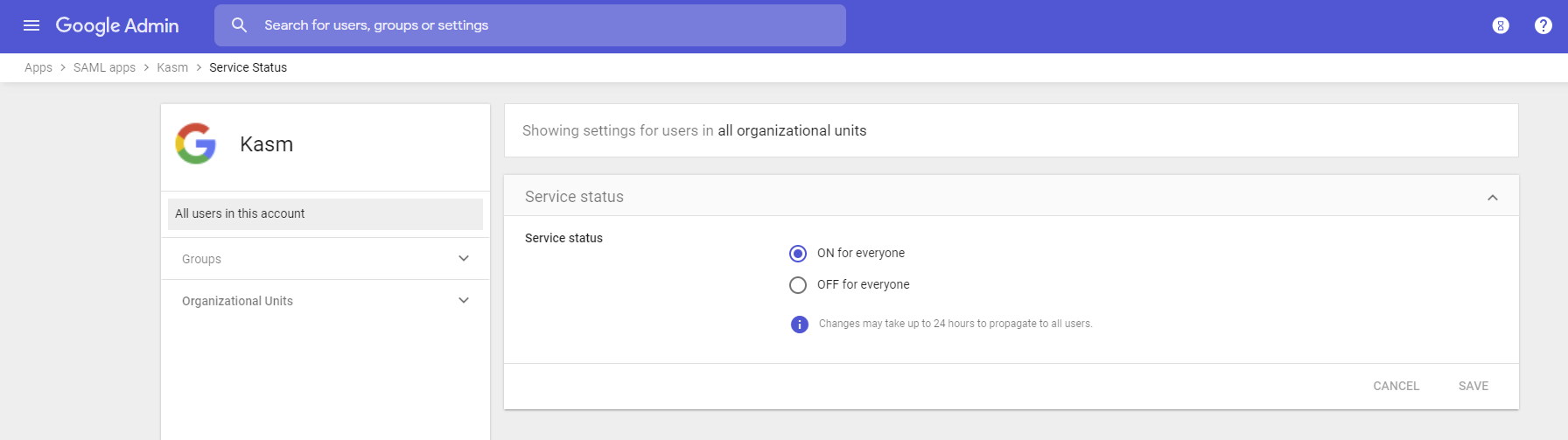

3. Select All users in this account or the desired Organizational Units Groups, Select ON for everyone and click Save

Giving App Access

Mapping Users

At this time GSuite does not allow group membership to be passed in SAML assertions. However Kasm Workspaces has an option that allows automatically mapping every user that authenticates against a SAML IDP to a Kasm group.

1. Log into the Kasm UI as an administrator.

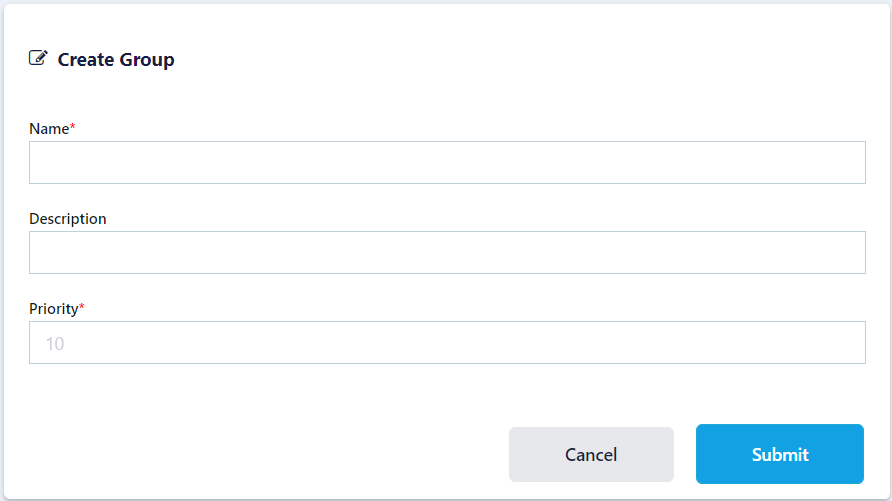

2. Select Groups then click Create New Group.

3. Enter a Name and Priority.

4. Save the new group by clicking Submit.

5. On the groups screen, using the three dot menu select View on the group that was just created.

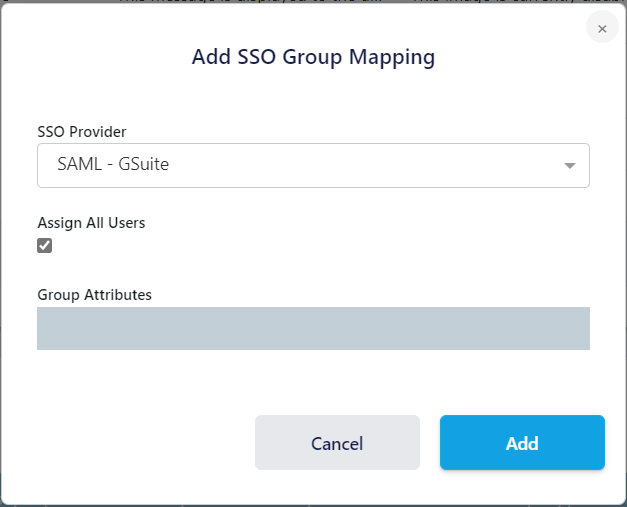

6. Scroll to the bottom of the screen and select Add SSO Mapping.

7. Select the SAML IDP that was created above e.g. “SAML - Gsuite” for the SSO Provider.

8. Check the Assign All Users check box.

9. Click Add.

7. Login via SAML, notice the users is automatically placed in the Kasm group.

Testing Access

1. Log out of the Kasm UI if already logged in.

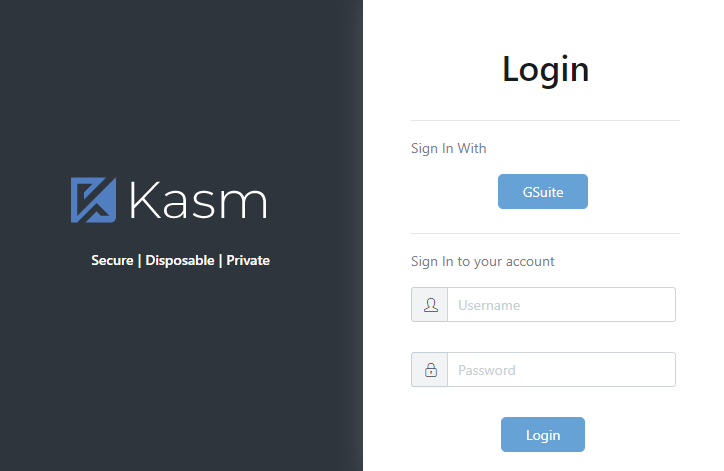

2. Navigate to the Kasm UI login page.

Kasm Login

3. Click Gsuite to initiate the SAML SSO process.

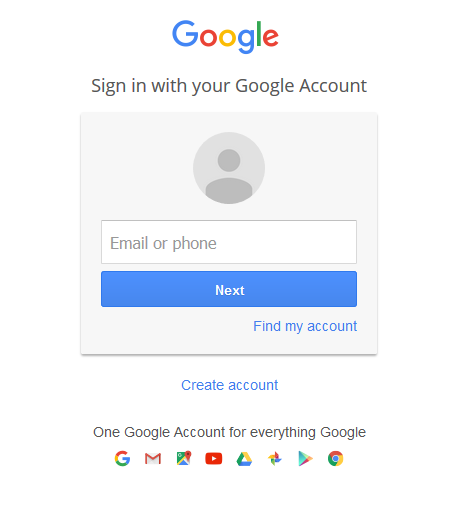

Google Login

4. After logging in, you should be redirected to the Kasm UI Dashboard

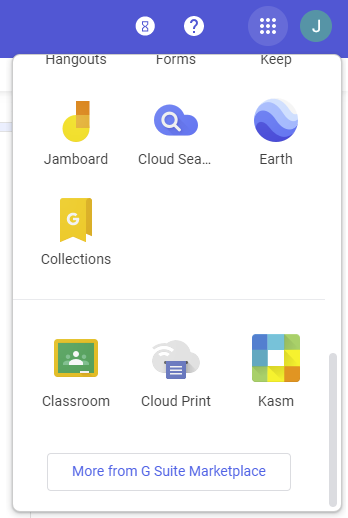

5. From another browser, login to Google. Click the Google Apps icon in the top right corner. Scroll down and click Kasm. You should be logged into the Kasm UI Dashboard.
