VMware Workspace ONE SAML Setup

Create a new SAML configuration in Kasm

Log into the Kasm UI as an administrator.
Select Authentication -> SAML -> Create New Configuration
The SAML 2.0 Configuration page will auto-generate the Entity ID, Single Sign On Service, Single Logout Server, and Relay State values.
Check Enable and enter a Display Name. e.g (Workspace One)
Update the following Settings

Setting	Value
Group Member Attribute	groupNames
NameID Attribute	emailAddress
Want Attribute Statement	Unchecked
Want Message Signed	Checked
Want Name ID	Checked

Leave this page open and continue to the next steps.

Add a new SaaS Application

Open the Workspace One Access Admin Console and select the Catalog tab, then select New.

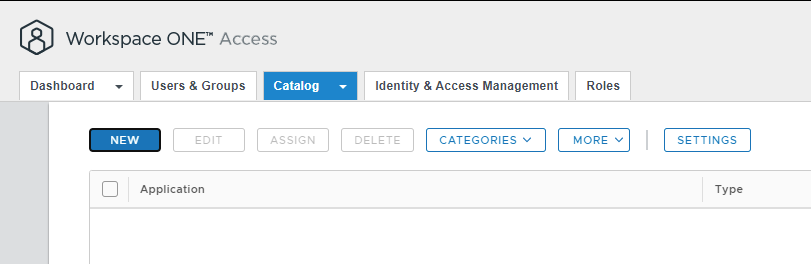

../../_images/access1.png — **Workspace One Access Portal**

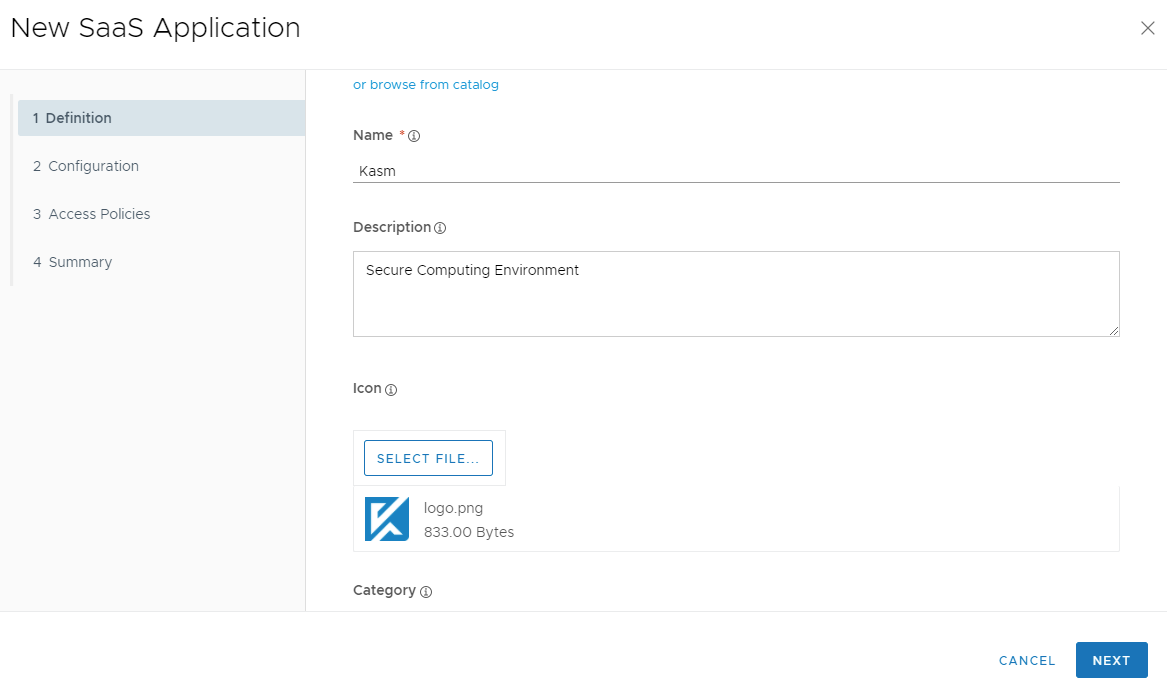

In the New SaaS Application dialogue, enter a Name (e.g Kasm) and optionally a Description and Icon. Select Next.

../../_images/definition.png — **New SaaS Application Definition**

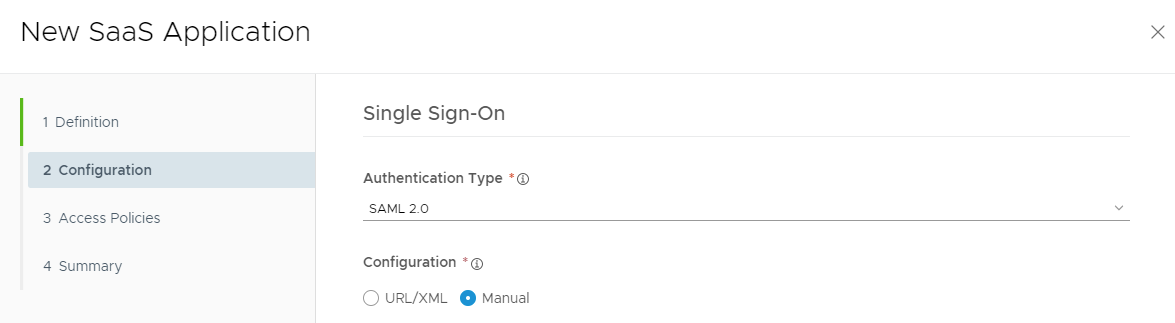

Select SAML 2.0 as the Authentication Type and select Manual for the Configuration.

../../_images/auth_type.png — **Authentication Type**

Copy the following values from the Kasm SAML Configurations started in the previous section into the New SaaS Application form.

Workspace One Property Name	Kasm Property Name
Single Sign-On URL	Single Sign On Service
Recipient URL	Single Sign On Service
Application ID	Entity ID
Relay State URL	Relay State

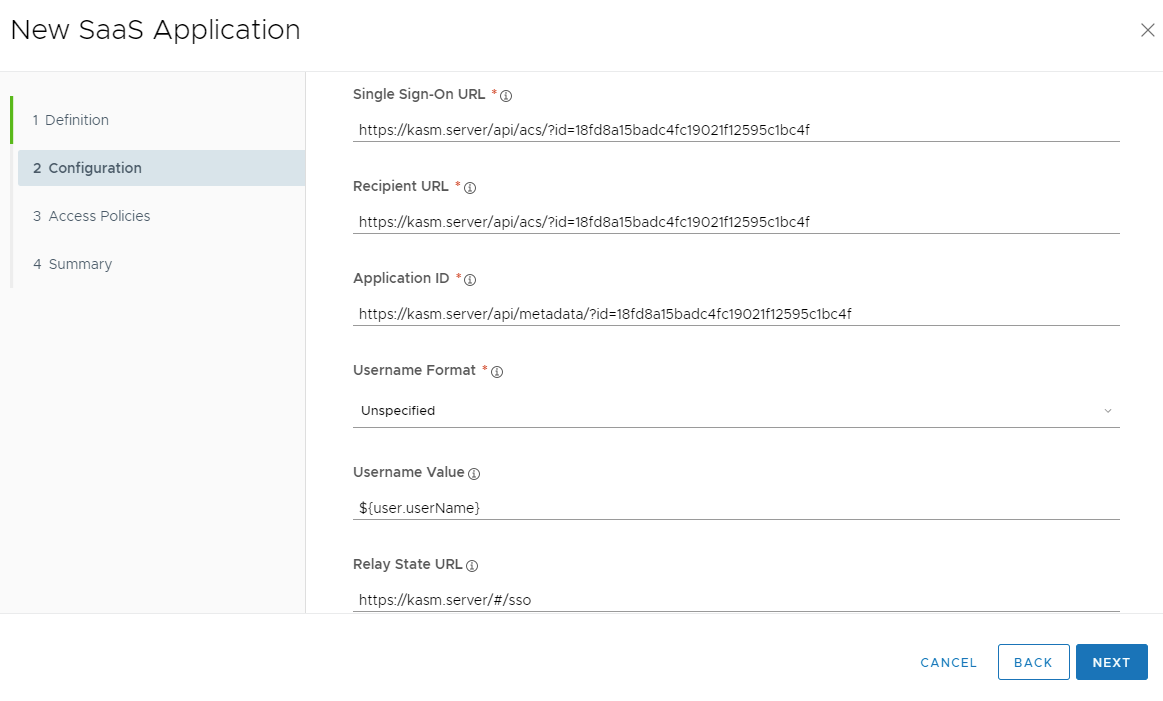

../../_images/saml_urls.png — **SAML URL Configuration**

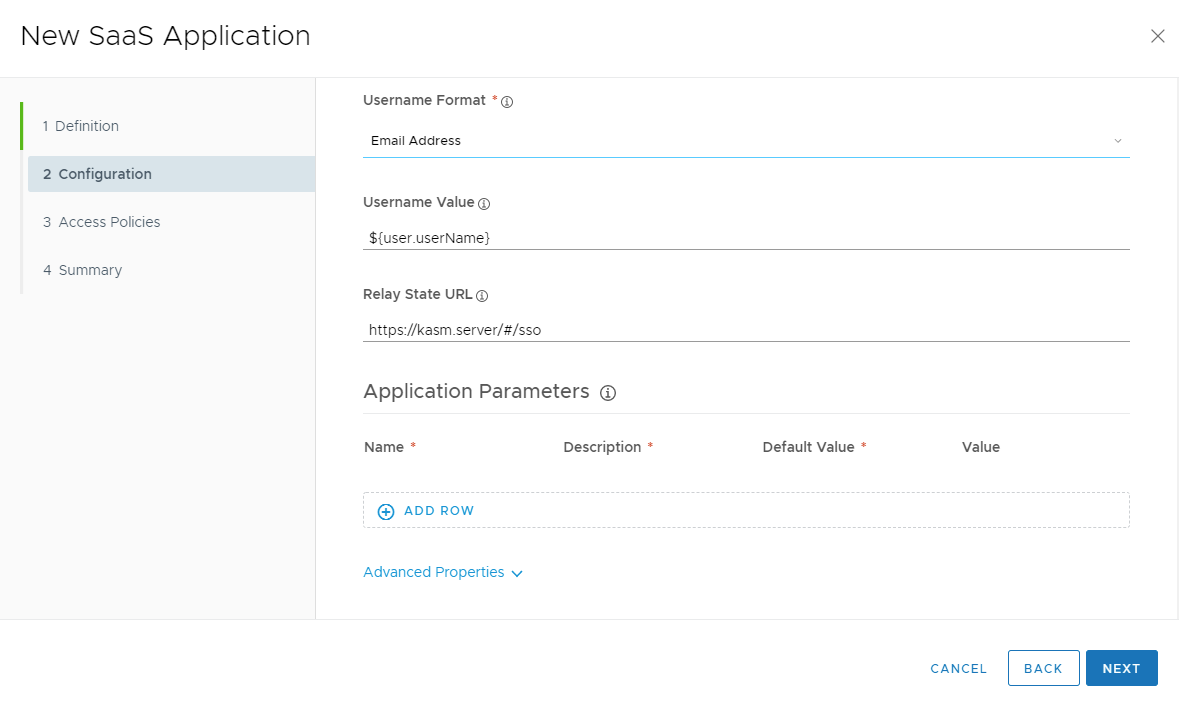

Select Email Address as the Username Format.

../../_images/username_format.png — **Username Format**

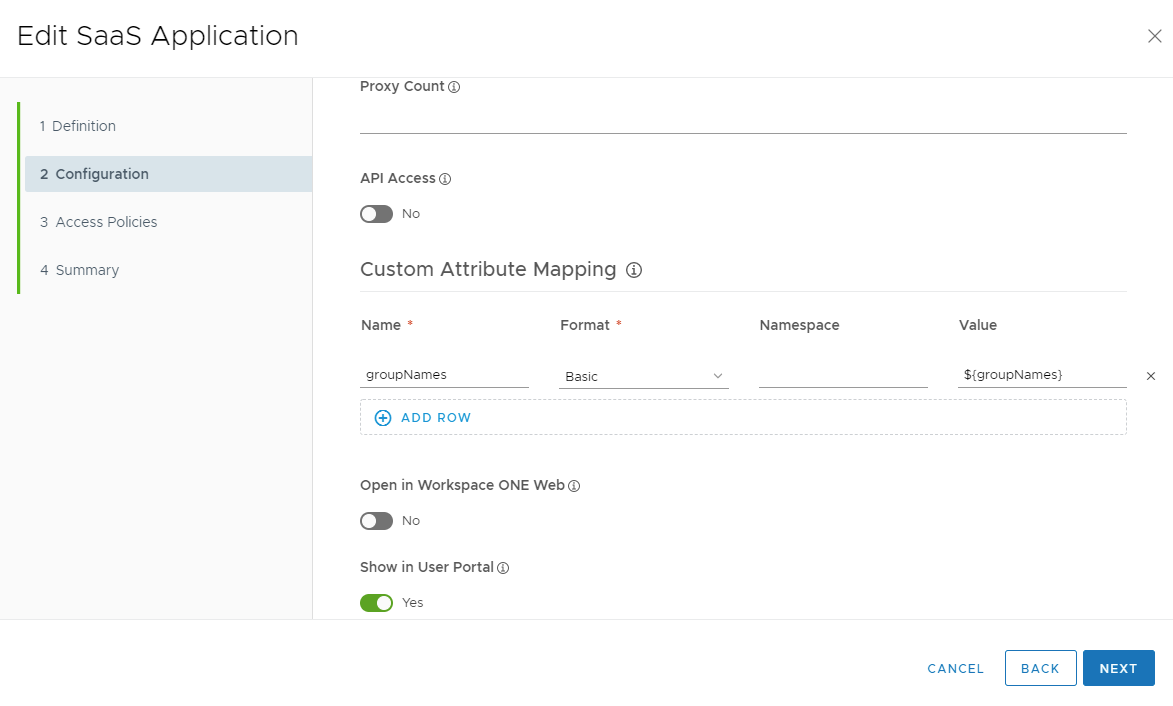

Click Advanced Properties. Scroll down to the Custom Attribute Mapping section. Add an entry with the following information then click Next

Attribute	Value
Name	groupNames
Format	Basic
Namespace	<blank>
Value	${groupNames}

../../_images/group_names.png — **Group Names**

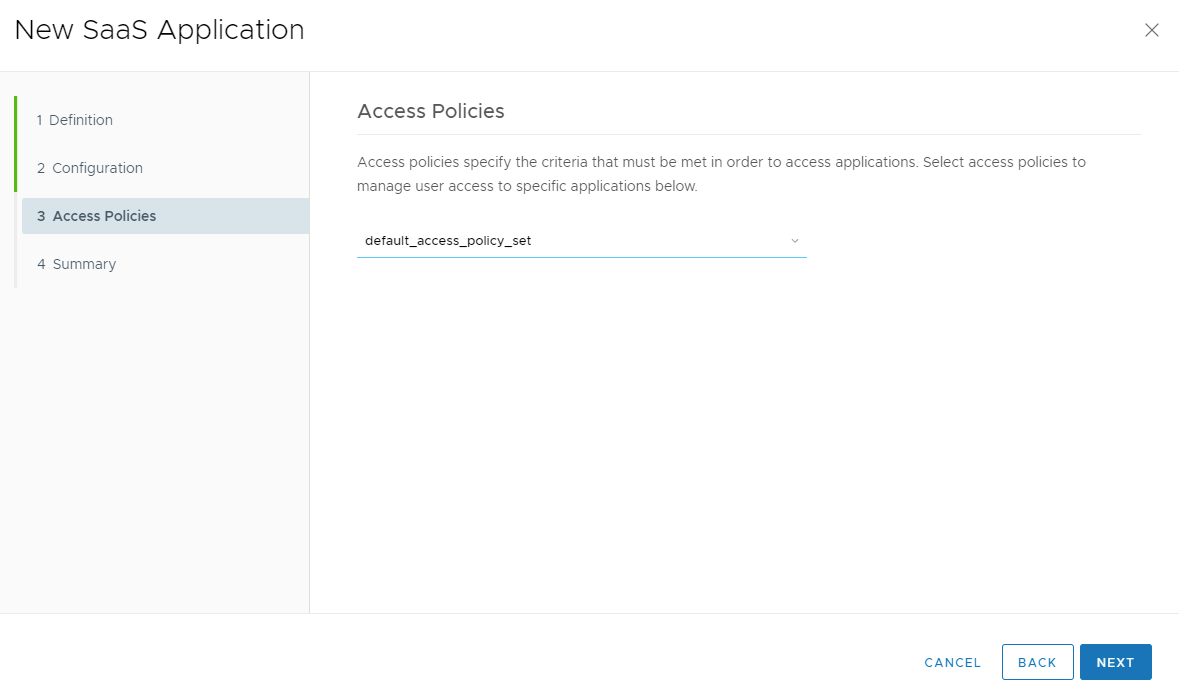

Select a desired Access Policy. In this example we will use the default_access_policy_set. Select Next.

../../_images/access_policy.png — **Access Policies**

Review the configuration then select Save & Assign.

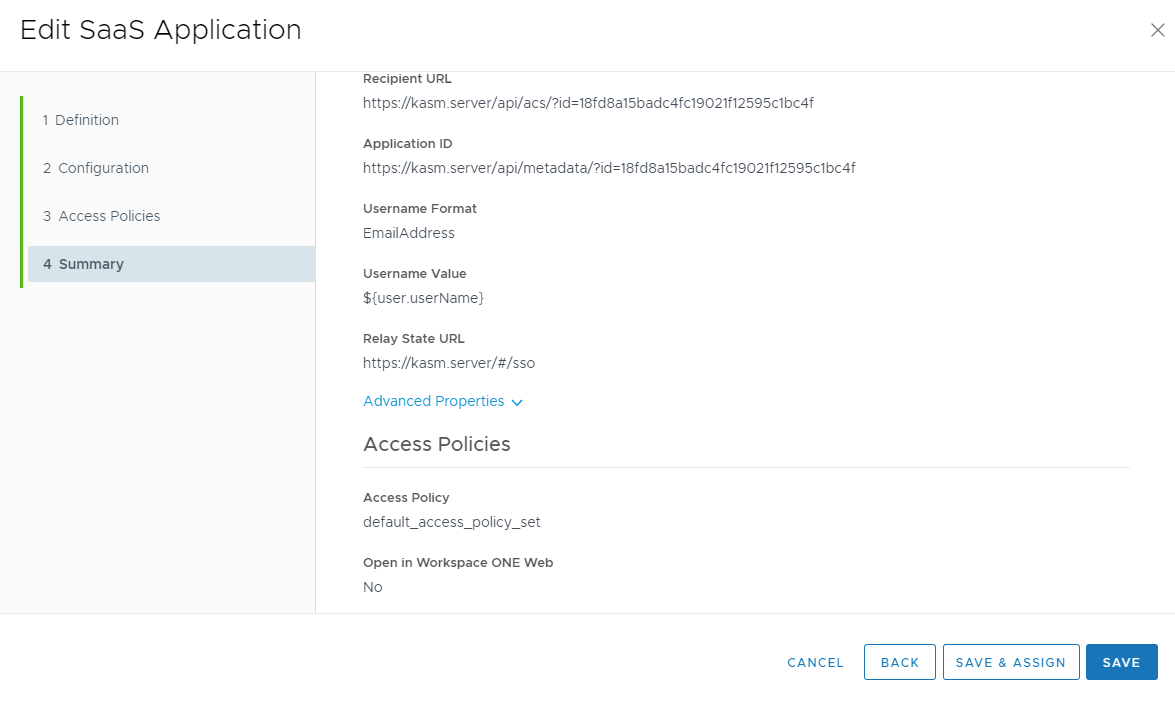

../../_images/review1.png — **Review Configuration**

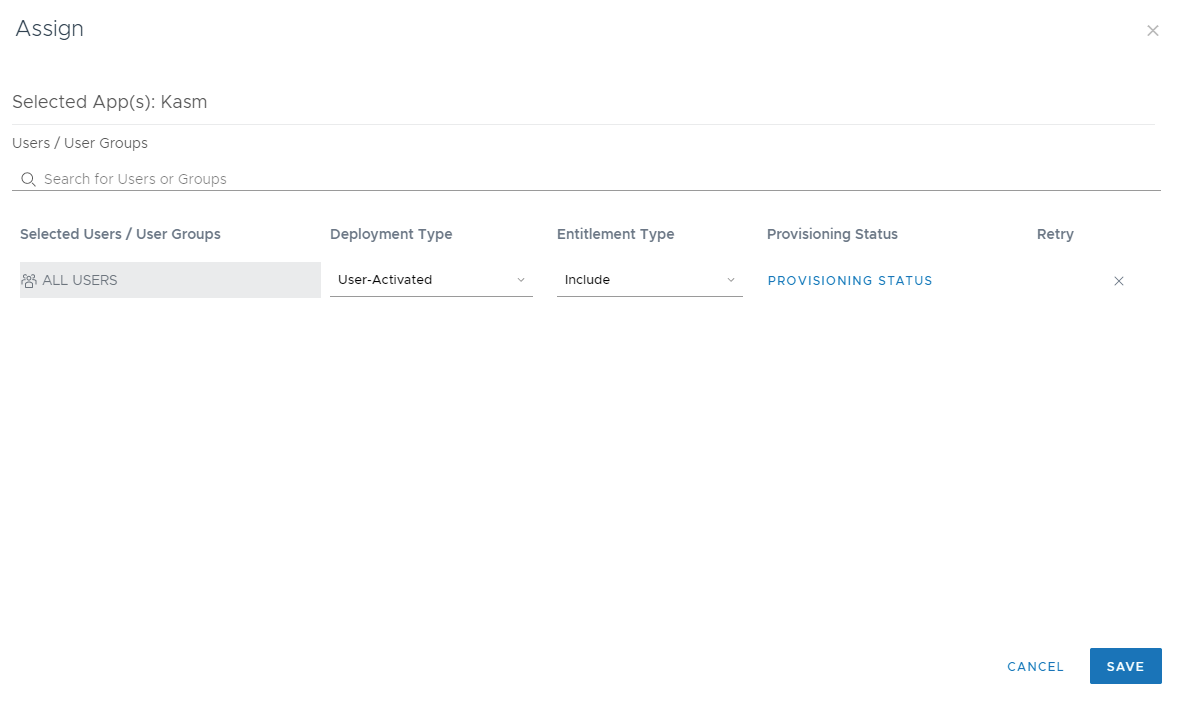

In the Assign dialogue, type in the desired user or group. In this example the ALL USERS group is used. Select Save

../../_images/assign.png — **Assign Users/Groups**

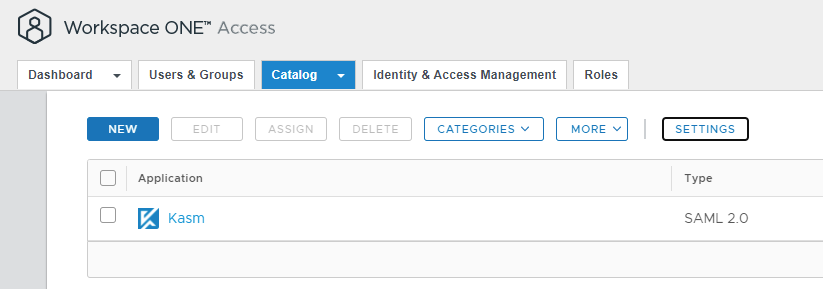

From the Catalog tab of the Workspace ONE Access panel, select Settings.

../../_images/settings.png — **Settings**

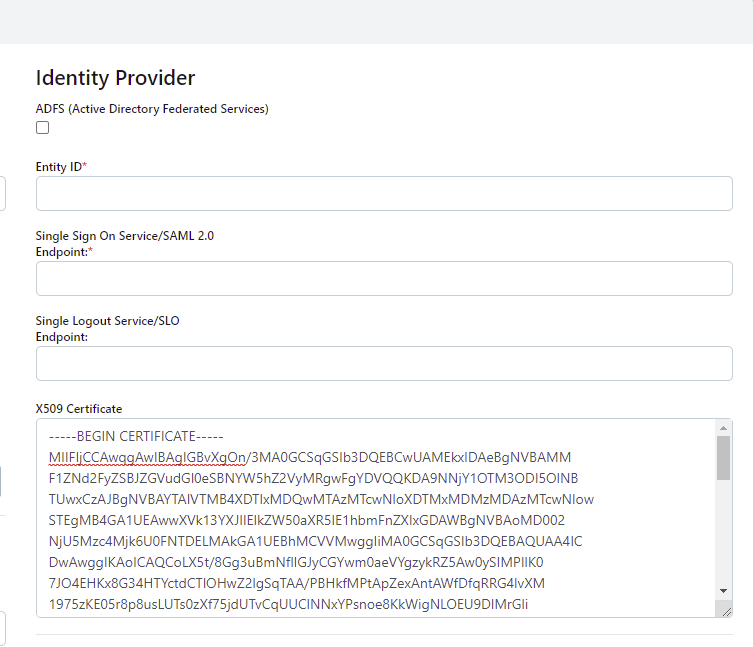

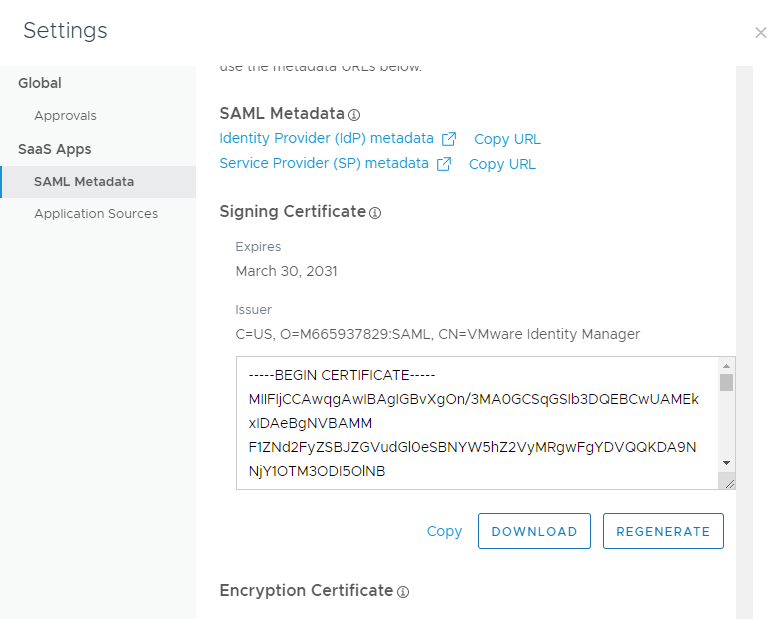

Select SAML Metadata. Copy the contents of the Signing Certificate into X509 Certificate field under Identity Provider in the Kasm SAML Configurations started in the prior section.

../../_images/signing_cert.png — **Signing Certificate**

../../_images/x509.png — **Configuring Signing Certificate**

Back in the Settings dialogue, click Identity Provider (IdP) metatdata.

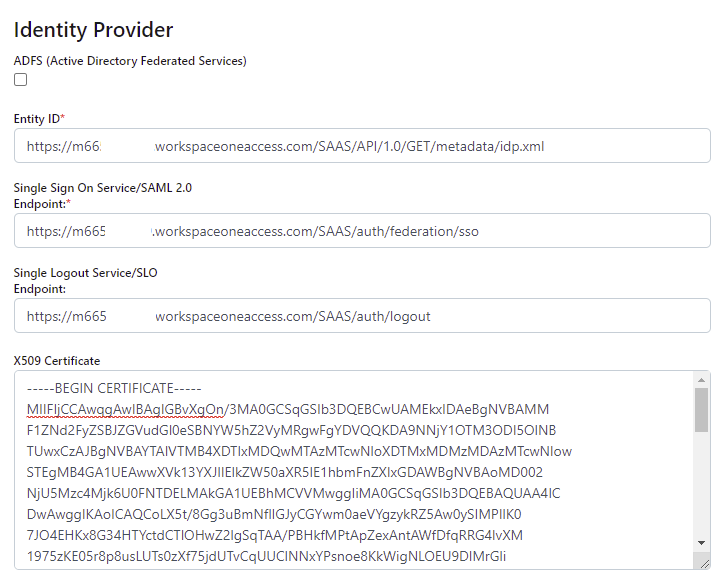

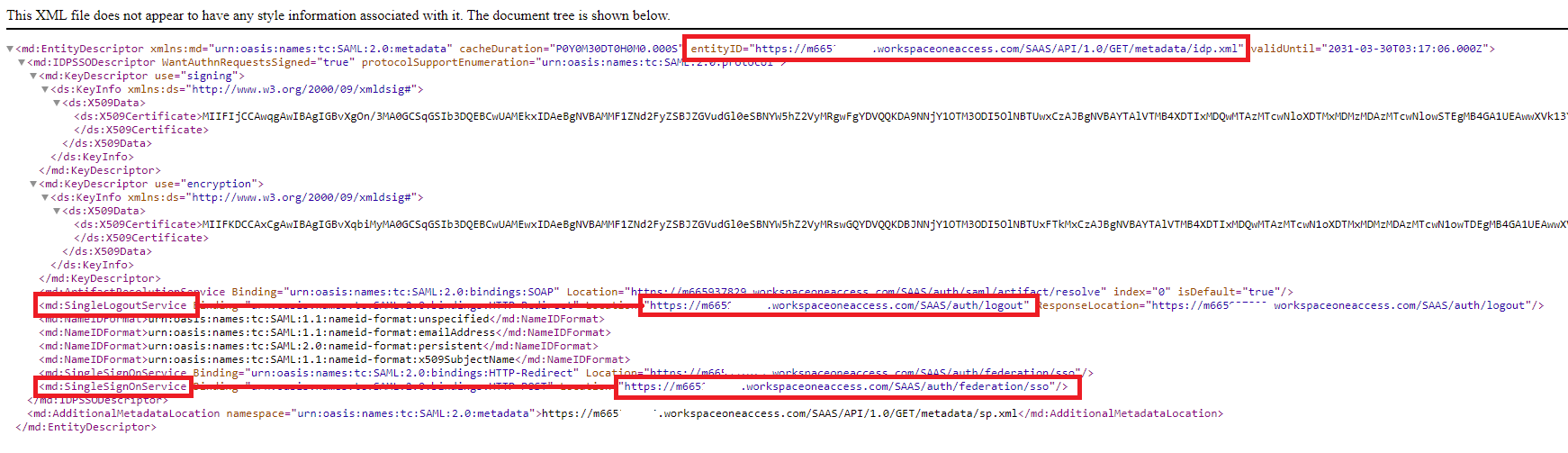

An XML metatdata file will be shown. Copy the highlighted sections into Identity Provider fields in the Kasm SAML Configurations started in the prior section. Once complete click Submit

Workspace One Property Name	Kasm Property Name
entityID	Entity ID
SingleSignOnService	Single Sign On Service/SAML 2.0 Endpoint
SingleLogoutService	Single Logout Service/SLO Endpoint

Testing Access

Log out of the Kasm UI if already logged in.
Navigate to the Kasm UI login page.

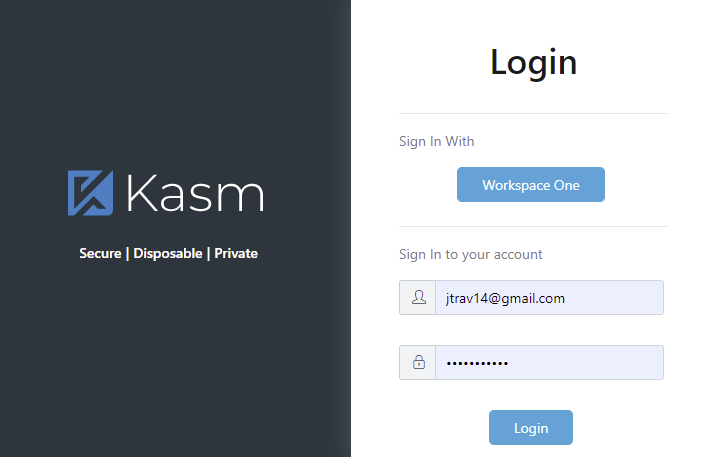

../../_images/kasm_login5.png — **Kasm Login**

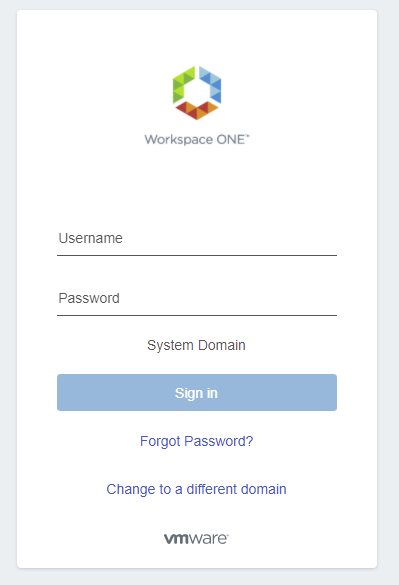

Click Workspace One to initiate the SAML SSO process.

../../_images/vmware_login.png — **VMware Login**

After logging in, you should be redirected to the Kasm UI Dashboard

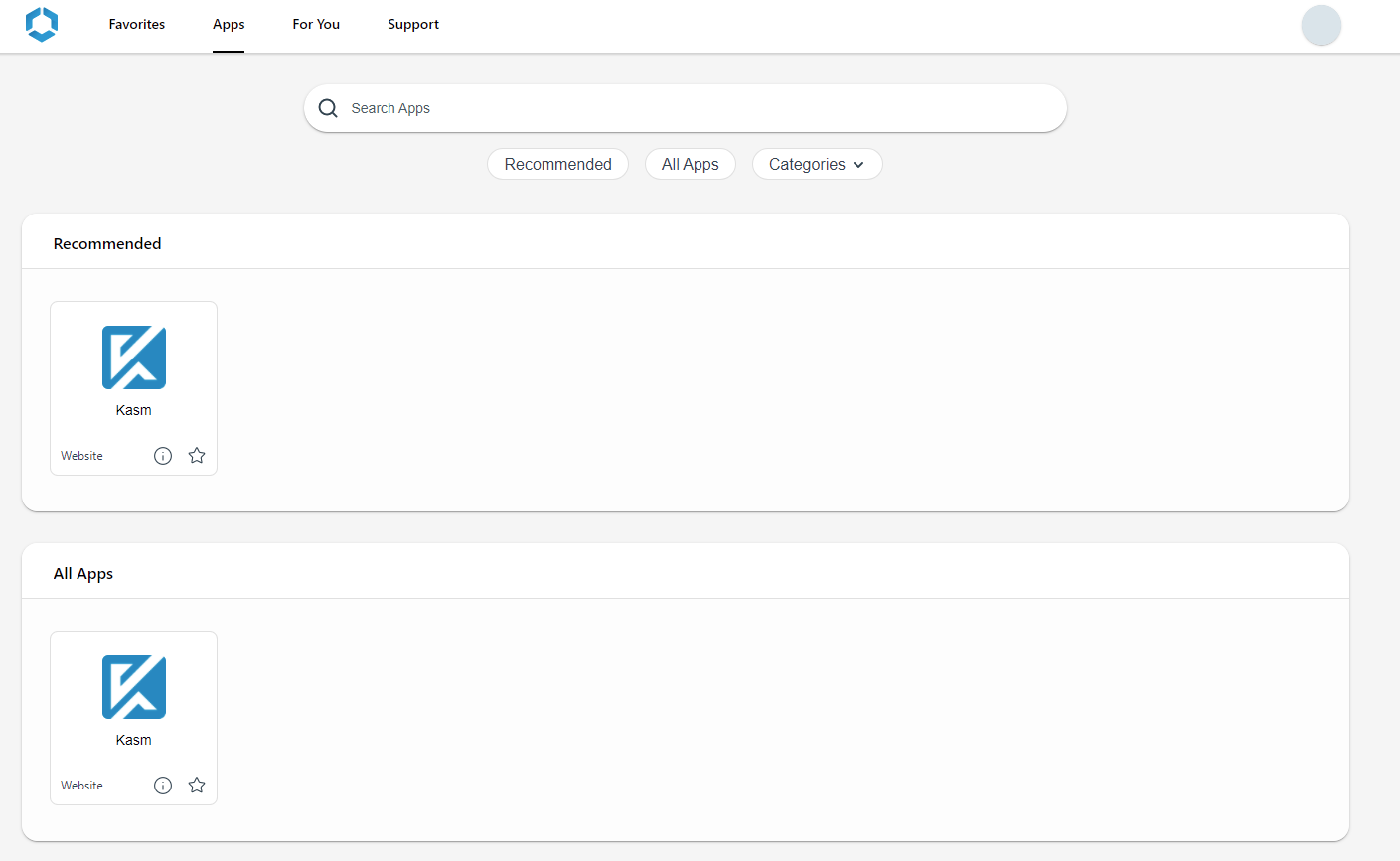

From another browser, login to Workspace ONE Access. Kasm should be displayed as an App. You may click the link to automatically open and log in to Kasm

Group Mappings

In the prior steps, Workspace One was configured to pass along the group names the user is a member of in the SAML assertion. This can be used to automatically map users into Groups within the Kasm application.

The following assumes a group is created in Workspace named Accounting

Log into the Kasm UI as an administrator.
Select Groups, the select Create New Group
Give the Group a Name (Does not need to match the Workspace ONE Group Name) and Priority
Click Submit to create the new group.

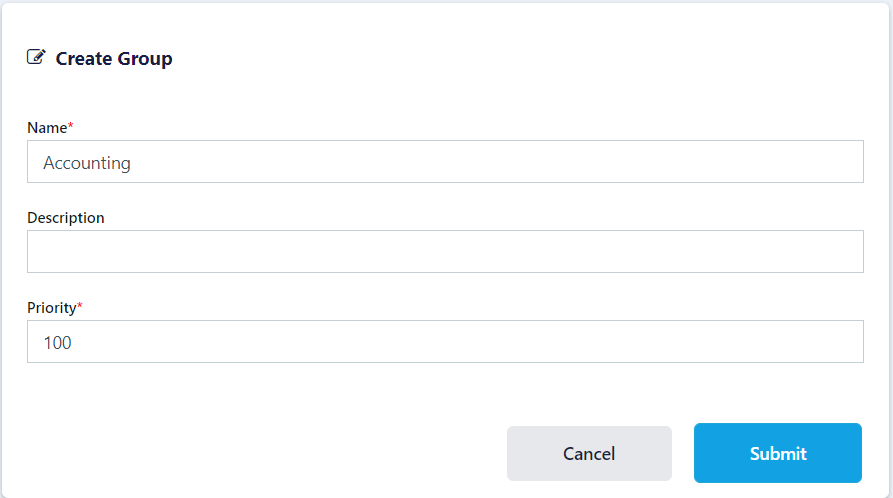

Create Group

Select Groups, then using the three dot menu click View next to the group just created.
Scroll to the bottom of the screen and select Add SSO Mapping.
Select the SAML IDP that was created above e.g. “SAML - Workspace One” for the SSO Provider.

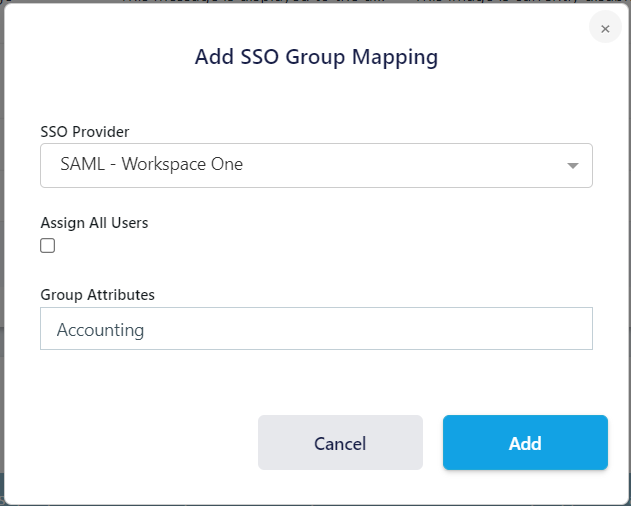

Enter the Workspace ONE Group Name in the Group Attributes field. Click Add

Add SSO Group Mapping

The next time a user of the Accounting group logs in they will automatically become a member of this Kasm Group.
