Groups

Groups are used to define roles for specific sets of users in Kasm Workspaces. By default there are two groups created by the system, the Administrators group and the All Users group, the All Users group is the default group for every user where statewide settings can be set.

Groups can be used to specify Kasm images and settings for different sets of users. For example, you may have a custom image for developers with pre-installed developer tools. You can tie that image to a group. You can define settings for that group, such as enabling bi-directional clipboard.

Create Group

Steps to create individual groups for sections of users.

• Select Groups tab from navigation menu

• Select Create New Group from the top right of the table

• Specify Group properties listed below

Group Properties

Name	Provides the name of the group
Description	Provides the description of the group
Priority	Sets the priority of the settings over other groups
Is System	System level group that cannot be deleted

There are cards in the view group page that allow for the selection of its users

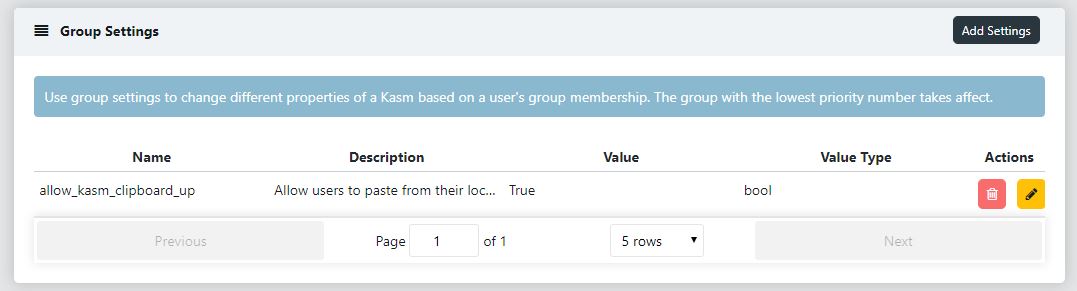

Group Settings

Group settings may be changed for the specific group by selecting the groups tab, clicking the edit icon on the desired group and the Add Settings button in the Group Settings card. There are delete setting and edit setting icons to the right of the Setting. If a user belongs to mulitple groups, the setting on the group with the lowest priority takes effect. For settings like volume_mapping, all settings are combined from all groups a user is a member of.

Here is a video that has an overview Groups and Group settings.

To configure group settings:

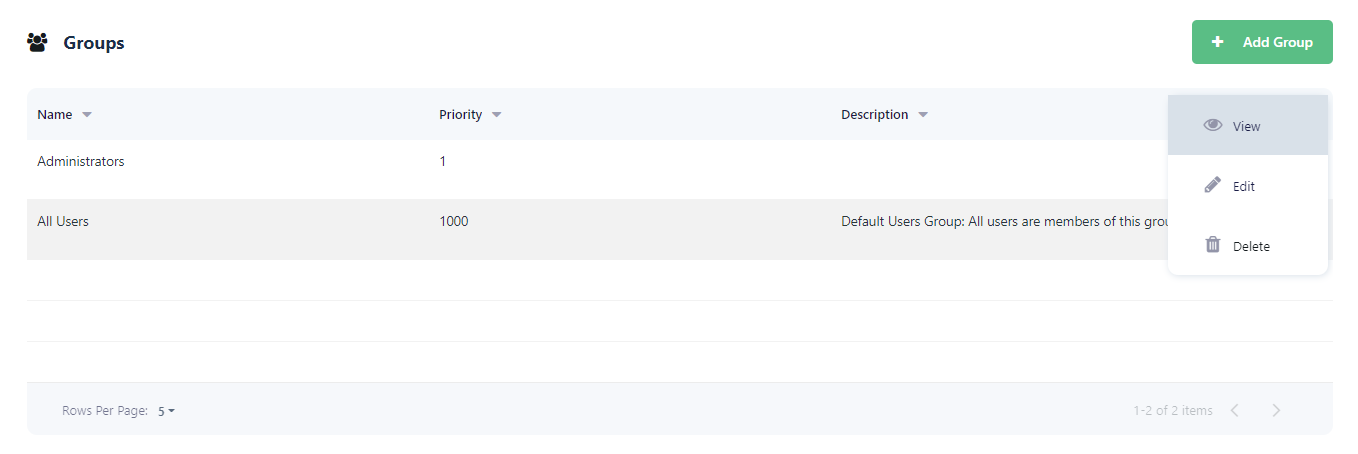

• Log into the UI as an administrator.

• Select Groups

• Next to the desired group select View from the actions menu.

• Scroll down to the Group Settings panel. Update settings as desired.

administrator	Allows users to see and edit all attributes of the Kasm application.
allow_kasm_audio	Allow audio streaming for a Kasm.
allow_kasm_clipboard_down	Allows users to paste text from the Kasm to their local computer.
allow_kasm_clipboard_seamless	Allows users to copy and paste text without using Kasm control panel. This feature is only available on Chrome and Chromium-based client browsers
allow_kasm_clipboard_up	Allow users to paste from their local computer to the Kasm.
allow_kasm_downloads	Allow users to download files from a Kasm.
allow_kasm_gamepad	Allow users to pass local gamepads into the Kasm session. See Gamepad Passthrough for more details.
allow_kasm_microphone	Allow microphone passthrough to a Kasm. When enabled, users can pass their local microphone through to the Kasm session.
allow_kasm_sharing	Allow the user to share access to their session with other users. See Session Sharing for more details.
allow_kasm_uploads	Allow users to upload files to a Kasm.
allow_persistent_profile	Allow the use of persistent profiles if configured on the Workspace. See Persistent Profiles for details
allow_point_of_presence	Allow the user to use point of presence features for certain Workspaces.
allow_zone_selection	Allow the user to specify the deployment zone when creating a session. A dropdown will appear on the user dashboard with the available Zones. Auto represents the default behavior which is to provision in current Zone. If a Zone is specified, the request will not search alternate zones if no resources are available in the requested Zone.
auto_login_to_kasm	Sends users directly to kasm using default workspace after login
chat_history_messages	The number of chat history messages to show when a new user connects to a shared Kasm. Set this value to 0 to disable showing chat history.
control_panel. advanced_settings. show_game_mode	Whether the game mode option is present in the advanced menu on the Kasm Session control panel.
control_panel. advanced_settings. show_ime_input_mode	Whether the ime input mode option is present in the advanced menu on the Kasm Session control panel.
control_panel. advanced_settings. show_keyboard_controls	Whether the keyboard controls option is present in the advanced menu on the Kasm Session control panel.
control_panel. advanced_settings. show_pointer_lock	Whether the pointer lock option is present in the advanced menu on the Kasm Session control panel.
control_panel. advanced_settings. show_prefer_local_cursor	Whether the prefer local cursor option is present in the advanced menu on the Kasm Session control panel.
control_panel. show_delete_session	Whether the delete session option is present on the Kasm Session control panel.
control_panel.show_logout	Whether the logout option is present on the Kasm Session control panel.
control_panel. show_return_to_workspaces	Whether the return to workspaces option is present on the Kasm Session control panel.
control_panel. show_streaming_quality	Whether the show streaming quality workspaces option is present on the Kasm Session control panel.
dashboard_redirect	If configured, standard users will be redirected to the defined external website instead of being shown the main dashboard screen.
default_image	The default Workspace used when the /go url is called. This is also used for the auto_login_to_kasm setting. The system will create a Workspace if one does not exist. If the user already has a Workspace, the session is resumed
display_ui_errors	If enabled, detailed information will be displayed on the client browser in the event of an error.
enable_totp_two_factor	Enables two factor authentication for group. Users will be prompted to set Key on next log on.
enable_ui_server_logging	If enabled, log messages will be sent from client browser to the Kasm Workspaces server.
expose_user_environment_vars	Expose KASM_USER and KASM_USER_ID environment variables inside the Kasm.
idle_disconnect	Disconnect the Kasm connection if idle for this long. Time specified in minutes.
inject_ssh_keys	When enabled the system will inject the user’s SSH public and private keys into new sessions automatically. Users can update their keys via the Profile.
kasm_audio_default_on	Default to audio enabled on Kasm start
kasm_ime_mode_default_on	Default to IME enabled on Kasm start
keepalive_expiration	The number of seconds a Kasm will stay alive unless a keeplive request is sent from the client.
keepalive_interval	The number of seconds in between keepalive requests from the client when the user is actively in a session.
lock_sharing_video_mode	Locks video quality to static resolution of 720p when sharing is enabled. Recommended for best performance.
max_kasms_per_user	The maximum number of simultaneous sessions a users is allowed to provision.
run_config	Specify arbitrary docker run params.
session_time_limit	The amount of time (in seconds) a session will automatically expire. A countdown timer will be displayed to the user.
usage_limit	Limits the total number of hours a user or group can have running sessions. Type Per User - Each user of the group has their own limit. Per Group - All members share the usage limit. Interval Daily , Weekly , Monthly , Total. Hours The number of hours allowed during each interval.
volume_mapping	Map a local server directory to Kasm. Details available in the Volume Mapping Guide
web_filter_policy	Enabled web filtering and sets the Web Filter Policy to be used. Policies can also be set or force disabled on Workspaces. Policies assigned to Workspaces take priority over those defined via Group Settings.

Session Time Limits

There are a multiple settings in the table above that control Kasm session lifetime. We will go into more detail about them and their relationship to each other below:

keepalive_expiration

This can also be described as the session timeout. This value determines how long Kasm will wait before destroying a session if no keepalive is received from the client. Keepalives are sent whenever a user is connected to a Kasm session even if the user is not actively using the Kasm Session. This value should be at least twice the keepalive_interval. This setting is 1 hour by default in the “All Users Group”.

keepalive_interval

The keepalive_interval is how often the client will send a keepalive request to Kasm when the user is actively using a session. This setting is 300 seconds by default for the “All Users Group”.

idle_disconnect

This setting is the number of minutes Kasm will wait when the user is idle before logging the user out of Kasm. Once the user is logged out, any Kasm sessions that the user was connected to will be disconnected and those sessions will be subject to the keepalive_expiration. This setting is set to 20 minutes by default in the “All Users Group”

usage_limit

The usage_limit setting is a highly flexible option allowing the administrator to configure a maximum usage number of hours either for each user in the group or for the entire group collectively to use over a set time period. This setting is a decimal value. When using the usage_limit setting all time that a Kasm session is running is counted against the total, this includes when the user is not actively connected to the session but the session is still running. This setting is for use cases where user workspace access should be metered. This setting is not enabled by default.

The user can see how much time they have used/have remaining on the user dashboard:

Session Time Usage

Clicking on this icon will bring up a more detailed display.

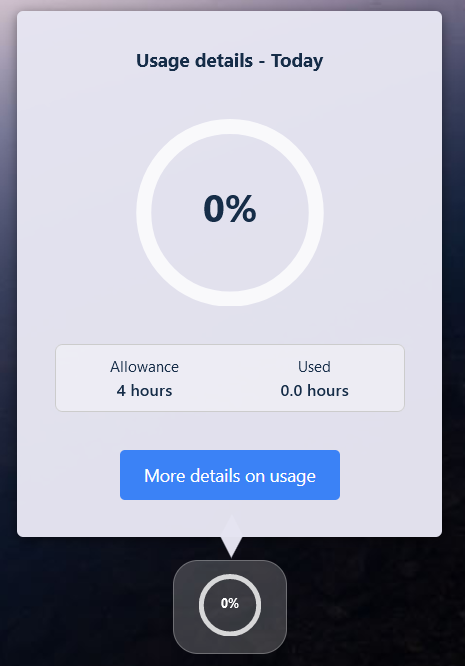

Detailed Session Time Usage

session_time_limit

The session_time_limit is a set amount of time that a workspace will be allowed to run once that workspace is created. This time limit is irrespective of whether the user is actively using the session or if the session is disconnected and running in the background. When session_time_limit is configured, the keepalive_expiration setting is not used. This setting is not enabled by default

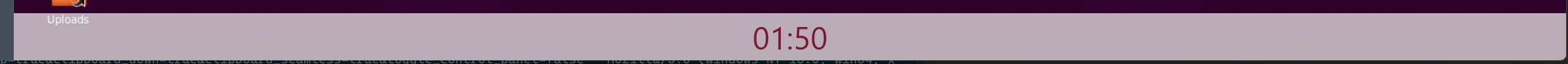

Session Time Limit Countdown

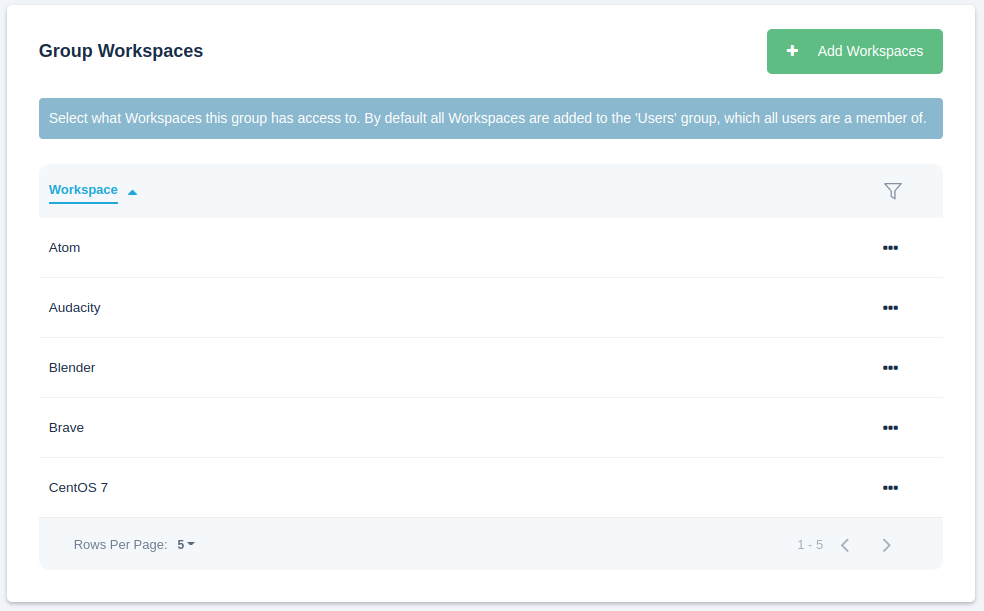

Group Workspaces

Administrators can define which Workspaces are available to each group. By default newly created workspaces are automatically assigned to the All Users group. This behavior can be changed by modifying the Add Images To Default Group global Settings.

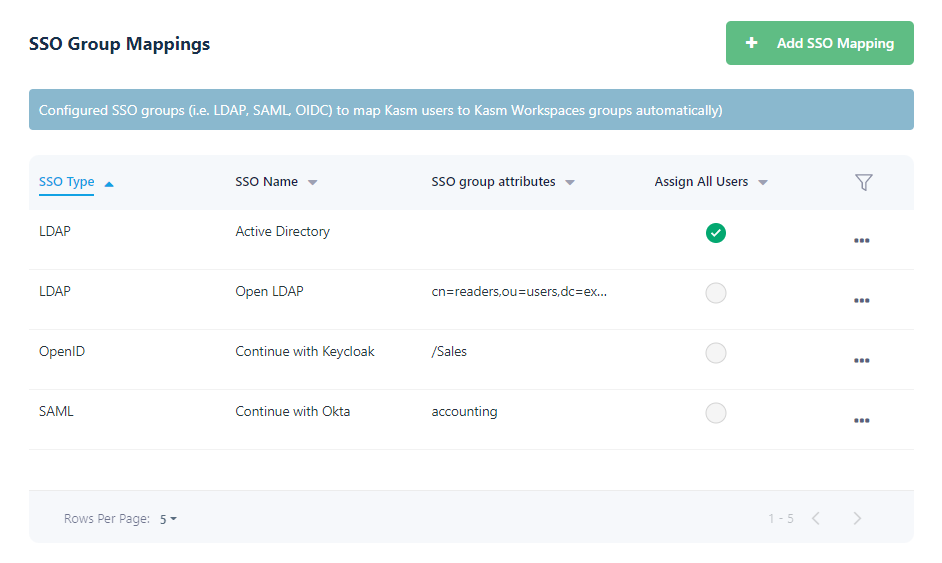

SSO Group Mappings

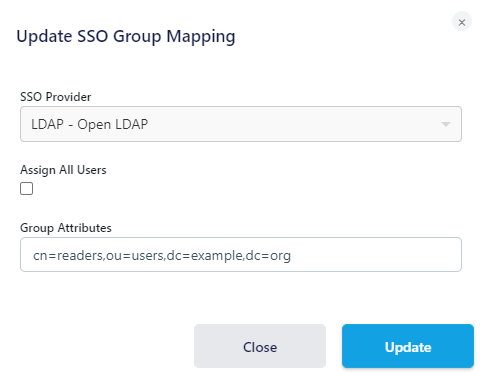

Administrators can configure the system to automatically map users that authenticate with an SSO provider (e.g SAML, OpenID, LDAP) into Kasm Groups.

If Assign All Users is selected, any user that authenticates with the defined SSO provider will be added to the Kasm group. Otherwise, only users that have the defined Group Attributes passed in by the SSO provider will be added to the group.

These group mappings are evaluated and updated at each user login. If a mapping is defined and a user does not have the group attributes listed, the user will be removed from the group.
