JumpCloud

This example assumes the use of JumpCloud LDAP-as a Service with the following configurations.

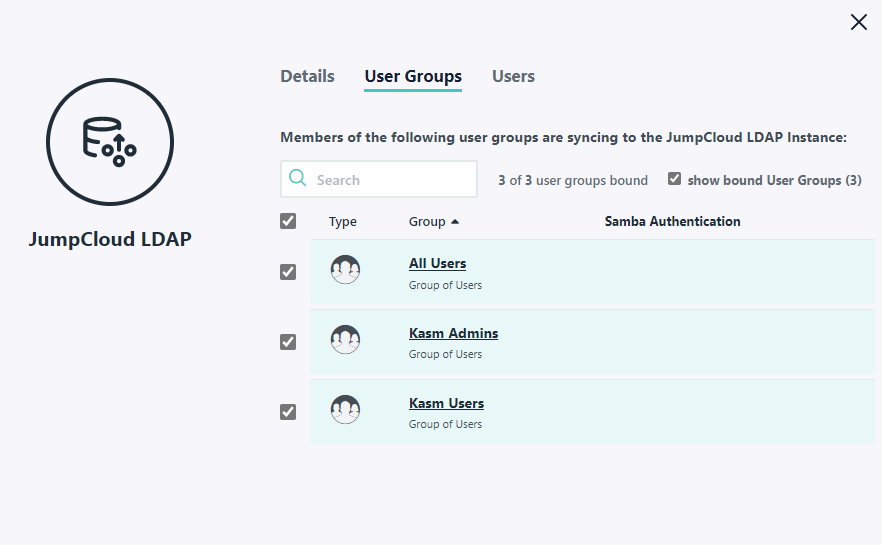

  • A User Group named Kasm Users that is bound to LDAP. Only users that are members of this group should be allowed to authenticate to Kasm

    • Users named kasm-user-1 and kasm-admin-1 are a member of this group.

  • A User Group group named Kasm Admins that is bound to LDAP. Users that are a member of this group will be placed in Kasm’s Administrators group

    • A user named kasm-admin-1 is a member of this group.

    ../../_images/ldap_groups.png

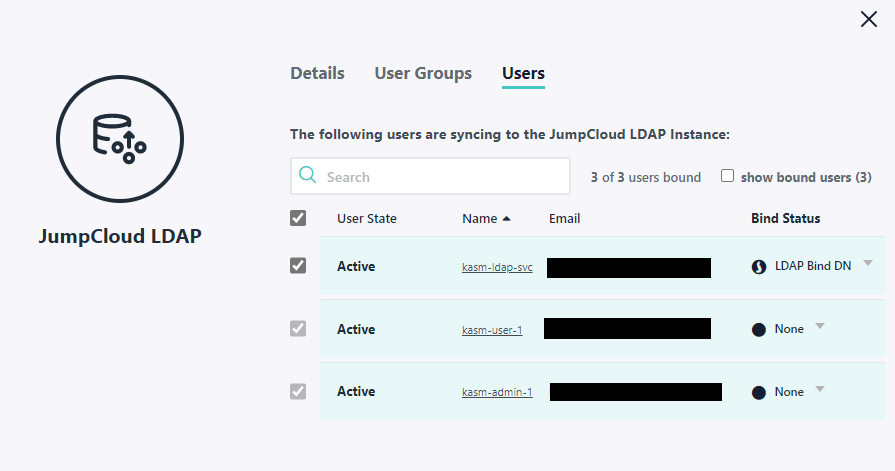

  • A user account named kasm-ldap-svc is configured as an LDAP Binding User

    ../../_images/ldap_users.png

Kasm LDAP Configuration

  • Log into the Kasm Web UI as an administrator

  • Click Authentication -> LDAP

  • Click Create New Configuration

  • Enter the following information , substituting the example Organization ID 633df00190c6d619236d3ae1 with your own.

Property

Value

Name

JumpCloud

URL

ldaps://ldap.jumpcloud.com:636

Search Base

ou=Users,o=633df00190c6d619236d3ae1,dc=jumpcloud,dc=com

Search Filter

&(objectClass=inetOrgPerson)(uid={0})(memberOf=cn=Kasm Users,ou=Users,o=633df00190c6d619236d3ae1,dc=jumpcloud,dc=com)

Group Membership Filter

(&(objectClass=groupOfNames)(member={0}))

Email Attribute

mail

Service Account DN

uid=kasm-ldap-svc,ou=Users,o=633df00190c6d619236d3ae1,dc=jumpcloud,dc=com

Service Account Password

password

Search Subtree

Checked

Auto Create App User

Checked

Enabled

Checked

LDAP Group Mapping

The following settings can be used to map the JumpCloud Kasm Admins group to the Kasm Workspaces build in Administrators Group.

See Create LDAP linked Group for more details.

Settings for the SSO Group Mapping screen

Property

Description

SSO Provider

LDAP - Kasm Test LDAP Settings

Assign All Users

Unchecked

Group Attributes

cn=Kasm Admins,ou=Users,o=633df00190c6d619236d3ae1,dc=jumpcloud,dc=com

Verifying Configurations

  • Verify you can log into the Workspaces UI with user. kasm-user-1@jumpcloud.com.

  • Verify you can log into the Workspaces UI with user. kasm-admin-1@jumpcloud.com. Once authenticated the user should now have access to administrative functions within the app.

  • Attempting to log into Workspaces as any other user that is NOT a member of the JumpCloud Kasm Users group should not succeed.

Helpful References

  • https://support.jumpcloud.com/support/s/article/using-jumpclouds-ldap-as-a-service1

  • https://support.jumpcloud.com/support/s/article/filtering-by-user-or-group-in-ldap-search-filters1

  • https://support.jumpcloud.com/support/s/article/using-ldapsearch-with-jumpcloud1

  • https://support.jumpcloud.com/support/s/article/user-attributes-2019-08-21-10-36-47
