Active Directory / OpenLDAP

The following section gives an example of a typical LDAP configuration of users and groups using Active Directory.

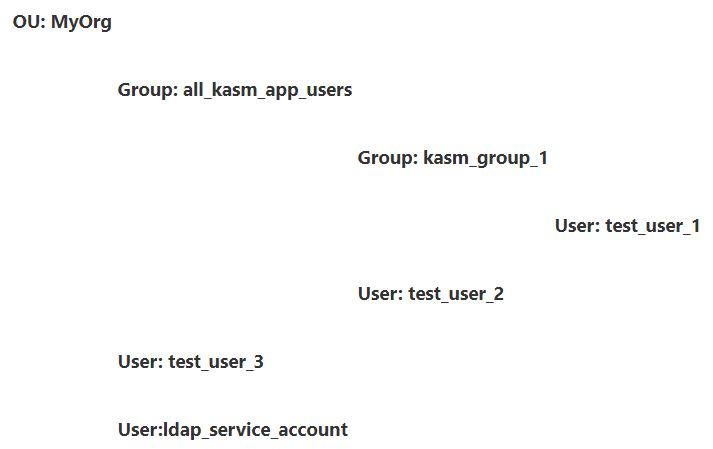

Consider the following domain “kasm.core” with the following structure

../../_images/fake_ldap_domain.jpg
  • MyOrg : Top level OU in the kasm.core domain

  • all_kasm_app_users : Security Group under the MyOrg OU that houses all users and groups that should be allowed access to the Kasm App. If a user is not a member of this group they should not be allowed to log into the app.

  • kasm_group_1 : A Security group that is a member of the all_kasm_app_users Group. Members of this group should automatically be mapped to a group in Kasm named Ldap Group 1

  • Test_user_1 : A user that is a member of kasm_group_1

  • Test_user_2 : A user that is a member of all_kasm_app_users. This user should be allowed to access the Kasm app but is not automatically placed in to special groups

  • test_user_3 : This user is not a member of the all_kasm_app_users group and therefore not be allowed to log in to the Kasm application

  • ldap_service_account : This user will be used as a service or ‘bot’ account do to LDAP queries

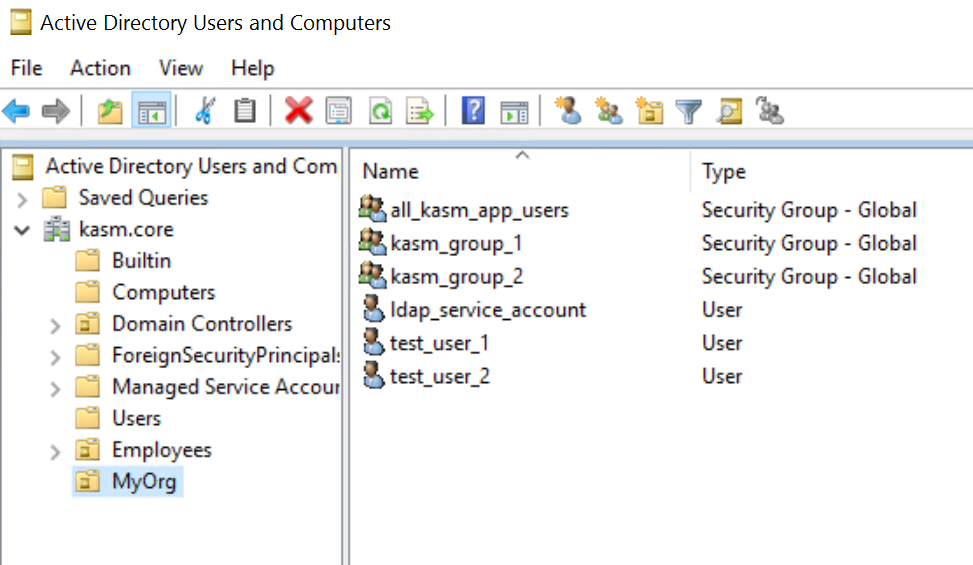

../../_images/ldap_domain.png

Configure the LDAP Configuration (Active Directory)

  • Log into the Kasm Web UI as an administrator

  • Click Authentication -> LDAP

  • Click Create New Configuration

  • The configurations for Microsoft Active Directory are as follows

Property

Value

Name

Kasm Test LDAP Settings

URL

ldaps://ldap.kasm.core:636

Search Base

OU=MyOrg,DC=kasm,DC=core

Search Filter

&(objectClass=user)(sAMAccountName={0})(memberof:1.2.840.113556.1.4.1941:=CN=all_kasm_app_users,OU=MyOrg,DC=kasm,DC=core)

Group Membership Filter

&(objectClass=group)(member:1.2.840.113556.1.4.1941:={0})

Email Attribute

mail

Service Account DN

CN=ldap_service_account,OU=MyOrg,DC=kasm,DC=core

Service Account Password

password

Search Subtree

Checked

Auto Create App User

Checked

Enabled

Checked

Note

1.2.840.113556.1.4.1941 is a special OID allowing for recursive enumeration of objects. Effectively this allows users to be determined to members of members. Otherwise the user would need to be a direct member of the specified group. See Microsoft Docs for details

Configure the LDAP Configuration (OpenLDAP / IDM)

  • Log into the Kasm Web UI as an administrator

  • Click Authentication -> LDAP

  • Click Create New Configuration

  • The configurations for OpenLDAP or IDM are as follows

Property

Value

Name

Kasm Test LDAP Settings

URL

ldaps://ldap.kasm.core:636

Search Base

OU=MyOrg,DC=kasm,DC=core

Search Filter

(&(objectClass=posixAccount)(uid={0})

Group Membership Filter

(&(objectClass=groupOfNames)(member={0}))

Email Attribute

mail

Service Account DN

CN=ldap_service_account,OU=MyOrg,DC=kasm,DC=core

Service Account Password

password

Search Subtree

Checked

Auto Create App User

Checked

Enabled

Checked

Note

Kasm only supports the “groupOfNames” or “groupOfUniqueNames” objectClasses in OpenLDAP/IDM, linking to a “posixGroup” objectClass is not currently supported.

Configure an LDAP Enabled Group

The following settings can be used to create a group in Kasm named “LDAP Group 1”. It will be mapped to LDAP group kasm_group_1. When LDAP users that are members of kasm_group_1 sign in they will automatically be put in the LDAP Group 1 Kasm group.

Settings for the group creation screen:

Property

Description

Name

LDAP Group 1

Description

Group mapped to kasm_group_1 in Active Directory

Priority

100

Settings for the SSO Group Mapping screen

Property

Description

SSO Provider

LDAP - Kasm Test LDAP Settings

Assign All Users

Unchecked

Group Attributes

CN=kasm_group_1,OU=MyOrg,DC=kasm,DC=core

Verifying Configurations

Discovering and Authenticating Users

  • Log into the Kasm Web UI as an administrator

  • Click Authentication -> LDAP

  • Click the Test LDAP Connection icon for Kasm Test LDAP Settings

  • Enter test_user_1@kasm.core and the correct password

  • The test should succeed. test_user_1 is a member of kasm_group_1 which is a member of all_kasm_app_users

  • Enter test_user_2@kasm.core and the correct password

  • The test should succeed. test_user_2 is a member of all_kasm_app_users

  • Enter test_user_3@kasm.core and the correct password

  • The test should fail. test_user_3 is NOT a member of all_kasm_app_users group or any group that is a member of that group

Group Assignment

  • Log out of the Kasm Application and Log in as test_user_1@kasm.core

  • Click Profile. Notice the user is a member of All Users ( set by default) and LDAP Group 1

  • Log out of the Kasm Application and Log in as test_user_2@kasm.core

  • Login will succeed.

  • Click Profile. Notice the user is only a member of the All Users Group (Set by default) but is not a member of any additional groups

  • Log out of the Kasm Application. Attempt to log in as test_user_3@kasm.core

  • Access is denied. test_user_3 is not a member of the required all_kasm_app_user group so is denied access because the LDAP query cant find the user.
