Restricting Workspaces to Docker Networks

Workspaces allows the administrator to restrict certain Docker workspace images to only provision on specified custom docker networks. This may be useful if there is a need to use specialized networking such as macvlan/ipvlan or Bridged Network Source NAT. But, it is also useful to provision sessions on groups of Agents to achieve a more simple multi-enclave architecture similar to what can be accomplished with the use of multiple Deployment Zones or with Agents that have certain characteristics (e.g specialized hardware) that are helpful to be grouped and associated with certain workspace images.

In this guide we will demonstrate how to:

  1. Create custom docker networks on Agents

  2. Configure an image to use one or more custom networks

  3. Allow the user to select a network at runtime

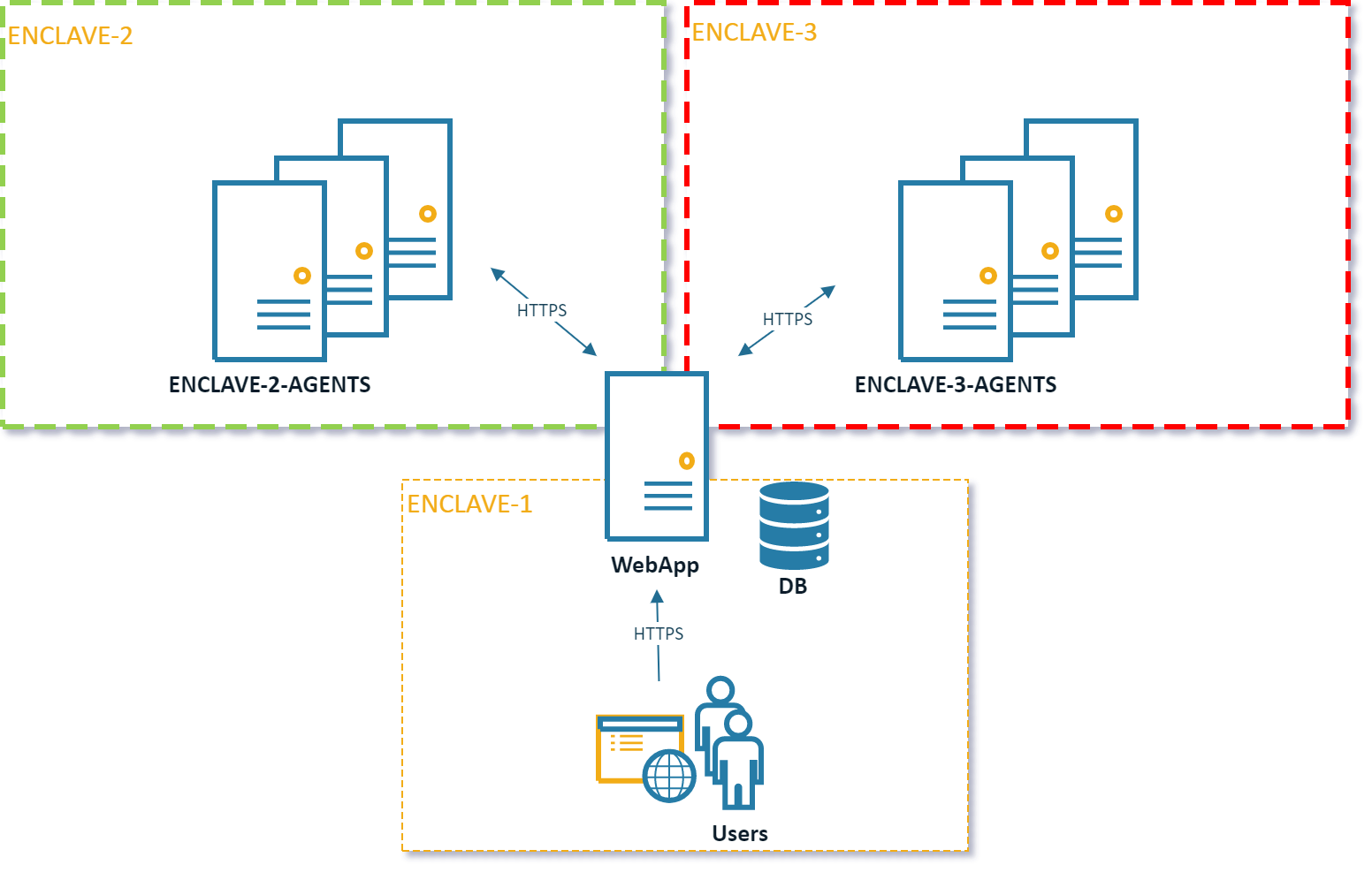

Architecture

For this example, we are using in multi-server deployment, with a single webapp, and 4 Agents, each in different enclaves.

../_images/architecture.png

Creating Custom Networks

Workspaces installs a customer bridged docker network named kasm_default_network. By default, all sessions are created on this network. For this example, we will create an additional custom bridged docker network that represents the target enclave.

  1. SSH to the desired Agent.

  2. Create a custom docker network.

sudo docker network create z_enclave_2

Note

The docker network names used in this example are intentionally prefixed with z_ . Due to a quirk docker will choose the default route for the container based on the name of the docker network ordered alphabetically. We name these custom networks accordingly so that they won’t cause interruptions with the Kasm service containers or user workflow.

  1. Repeat this step for each Agent. In our example, creating the z_enclave_2 network on all the Agents in enclave 2 and z_enclave_3 on all the Agents in enclave 3.

Workspace Configuration

  1. Log into the Workspaces UI as an admin.

  2. Select Workspaces.

  3. Click Edit next to the desired Workspace (e.g Chrome).

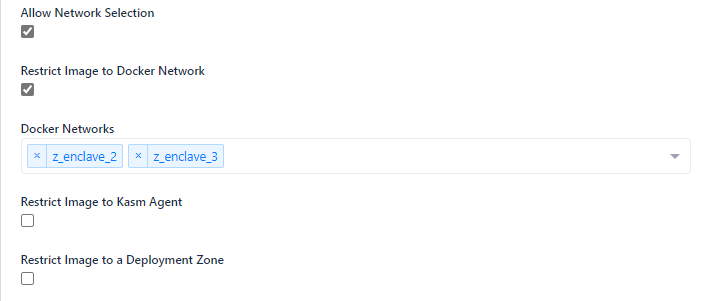

  4. Check Restrict Image to Docker Network and add the custom networks (e.g z_enclave_2 and z_enclave_3). Note. Custom networks will appear in this list a few minutes after they are created on an active Agent.

  5. Check Allow Network Selection. This will allow the user to choose from the listed networks when they launch a session.

../_images/workspace_configuration.png

Workspace Configuration

  1. Click Submit.

Launching the Workspace

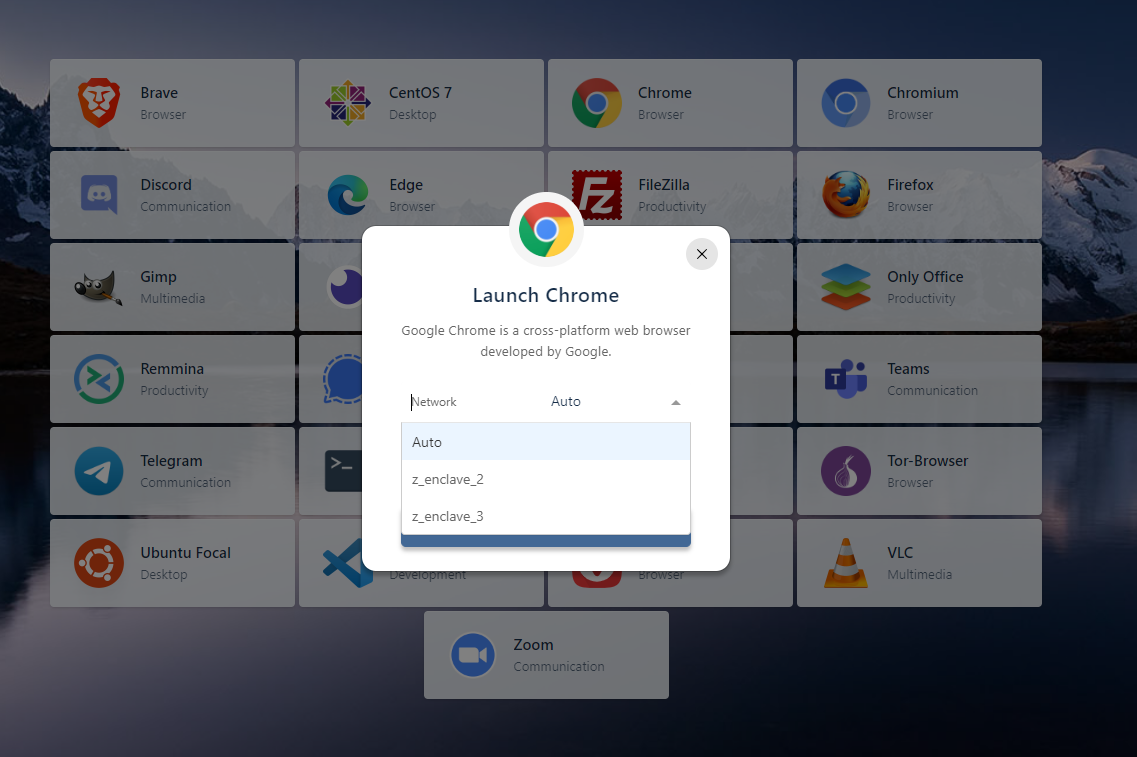

  1. From the Workspaces launcher, click on the previously modified Workspace. A dropdown will appear with a list of the networks defined.

  2. Select the desired network and launch the session. Selecting Auto will provision the session on any Agent with one of the previously specified networks.

../_images/launch.png

Network Selection
