Cisco Umbrella / OpenDNS

Administrators have several options for integrative Kasm with Cisco Umbrella / OpenDNS.

  • Users can be redirected to Kasm session when accessing restricted sites.

  • Kasm sessions can be configured to use custom DNS servers, thus using DNS filtering systems such as Cisco Umbrella / OpenDNS. In some situations this may be preferred to Kasm Workspace’s built in Web Filtering.

Redirect Blocked Requests to Kasm

Administrators can configure Cisco Umbrella to redirect the user’s request to Kasm when a policy is violated. For example, it certain categories of sites are denied by Cisco Umbrella policy, the Administator may wish to provide access to the site only through Kasm isolation. This is instrumented via the use of a Custom Block Page that is coded to either automatically redirect the user to Kasm or provide a link for the user to click.

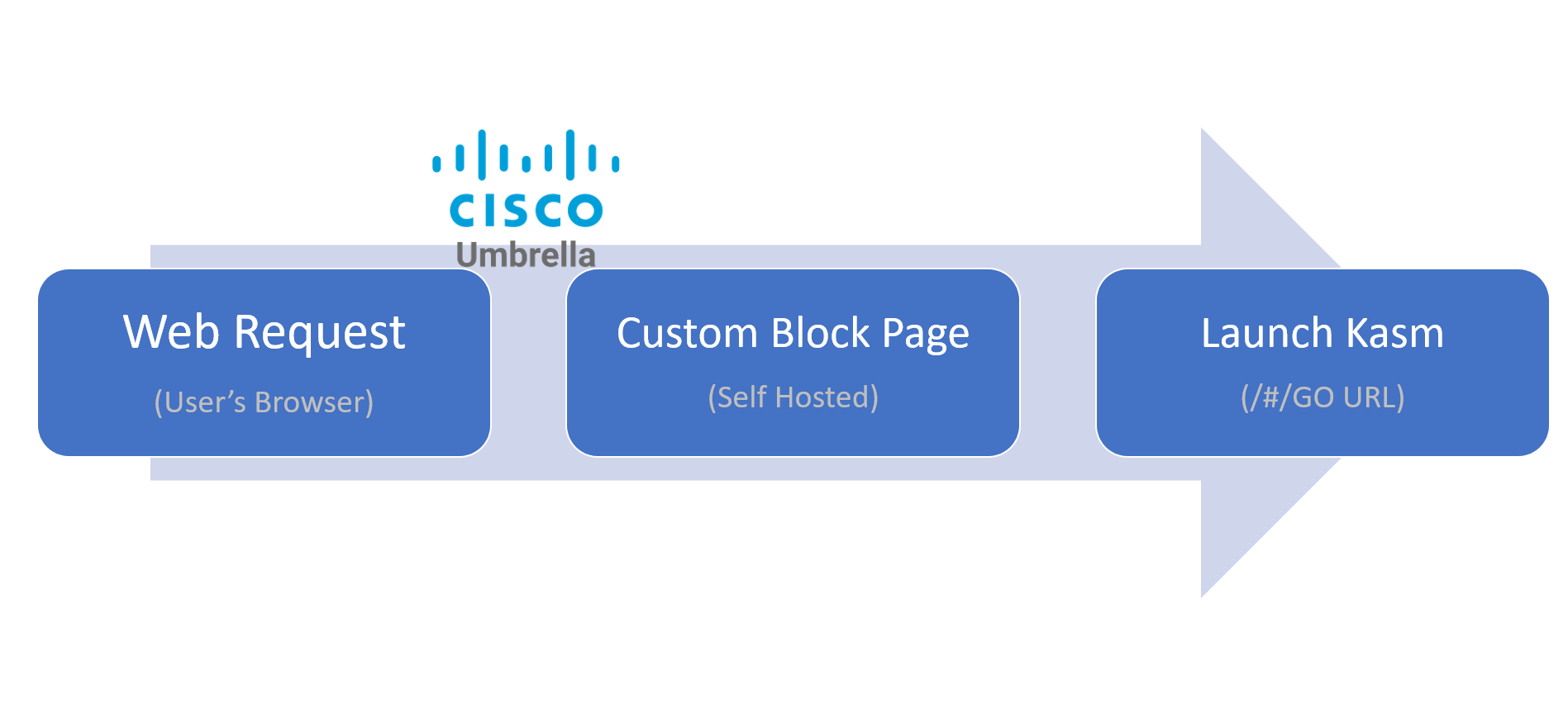

../_images/process.png

Redirect Process

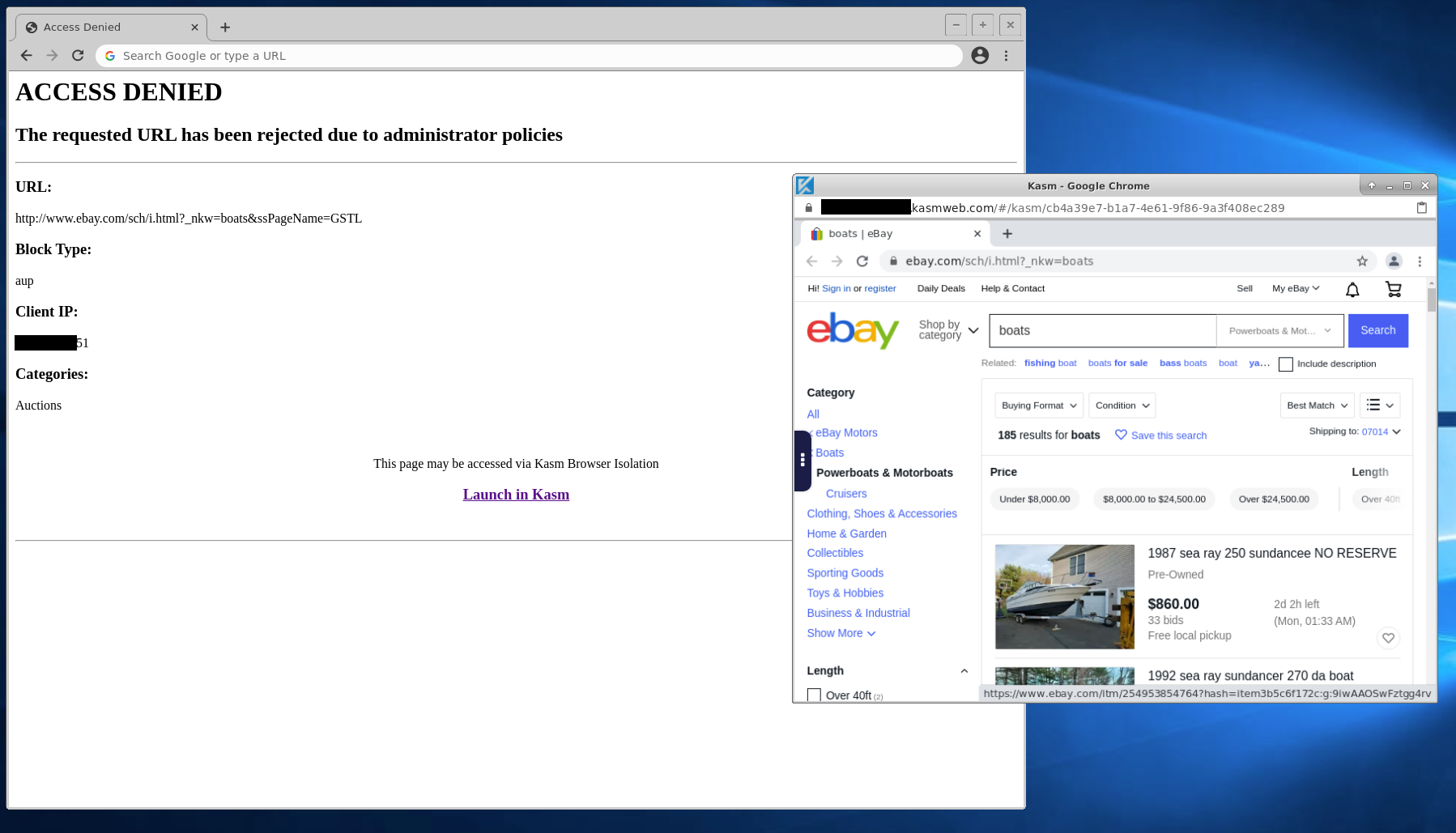

The following figure shows an example of a user’s request being denied by Cisco Umbrella policy to auctions sites. The custom block page is shown, and the user has the option to open the link inside a Kasm session. The Kasm session is opened in a new window and automatically launches to the requested site.

../_images/block_example.png

Block Page in Action

Deploy a Custom Block Page

A custom block page is used to redirect the user’s original request to Kasm or provide them a link to do so. Administrator’s must customize and place the block page in a website that is accessible to all users.

  1. Download the example block page: Custom Block Page Example (Right Click and Save)

    Note

    The example block page is intentionally devoid of styling to more simply illustrate the workflow. Administrators can customize the page with styling and branding as desired.

  2. Edit the file and replace kasm.server in the kasm_url variable with a domain for your Kasm Deployment.

    Partial Block Page Contents
      ...
      var kasm_url = "https://kasm.server/#/go?kasm_url=";
      var urlParams = new URLSearchParams(window.location.search);

      var kasm_message_elem = document.getElementById("kasm");
      var kasm_link_elem = document.getElementById("kasm_link");

      var url_elem = document.getElementById('url');
      ...

  3. Deploy the file to a web server that is accessible by the users. e.g https://my.server/block.html

Update Cisco Umbrella

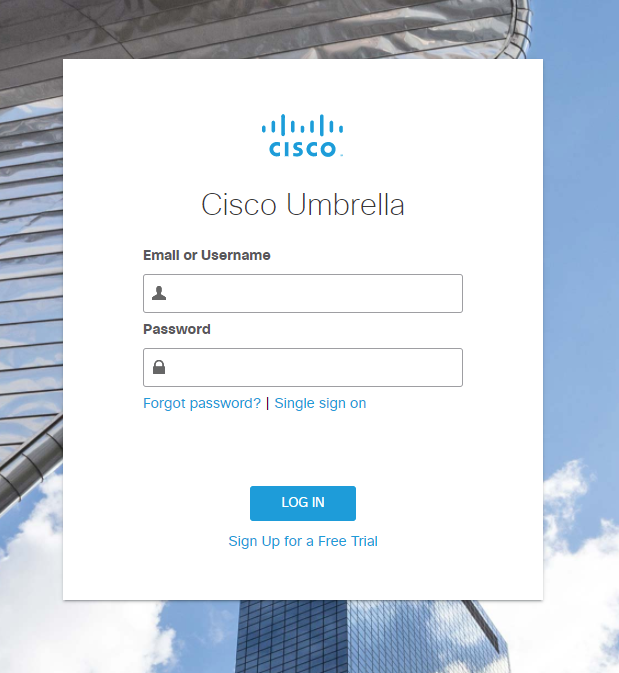

  1. Log into the Cisco Umbrella Portal

    ../_images/portal_login.png

    Portal Login

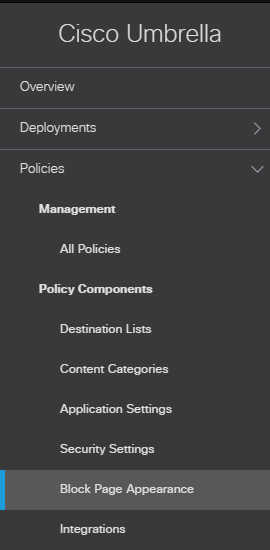

  2. Select Policies -> Policy Components -> Block Page Appearance

    ../_images/policy_menu.png

    Policies Menu

  3. Click Add

  4. Update the Block Page Appearance Name (e.g Kasm Block Page)

  5. Choose a Blocked requests should be treated: method.

  6. Select Redirect users to this URL and enter the address of the deployed custom block page: e.g https://my.server/block.html

  7. Select Save

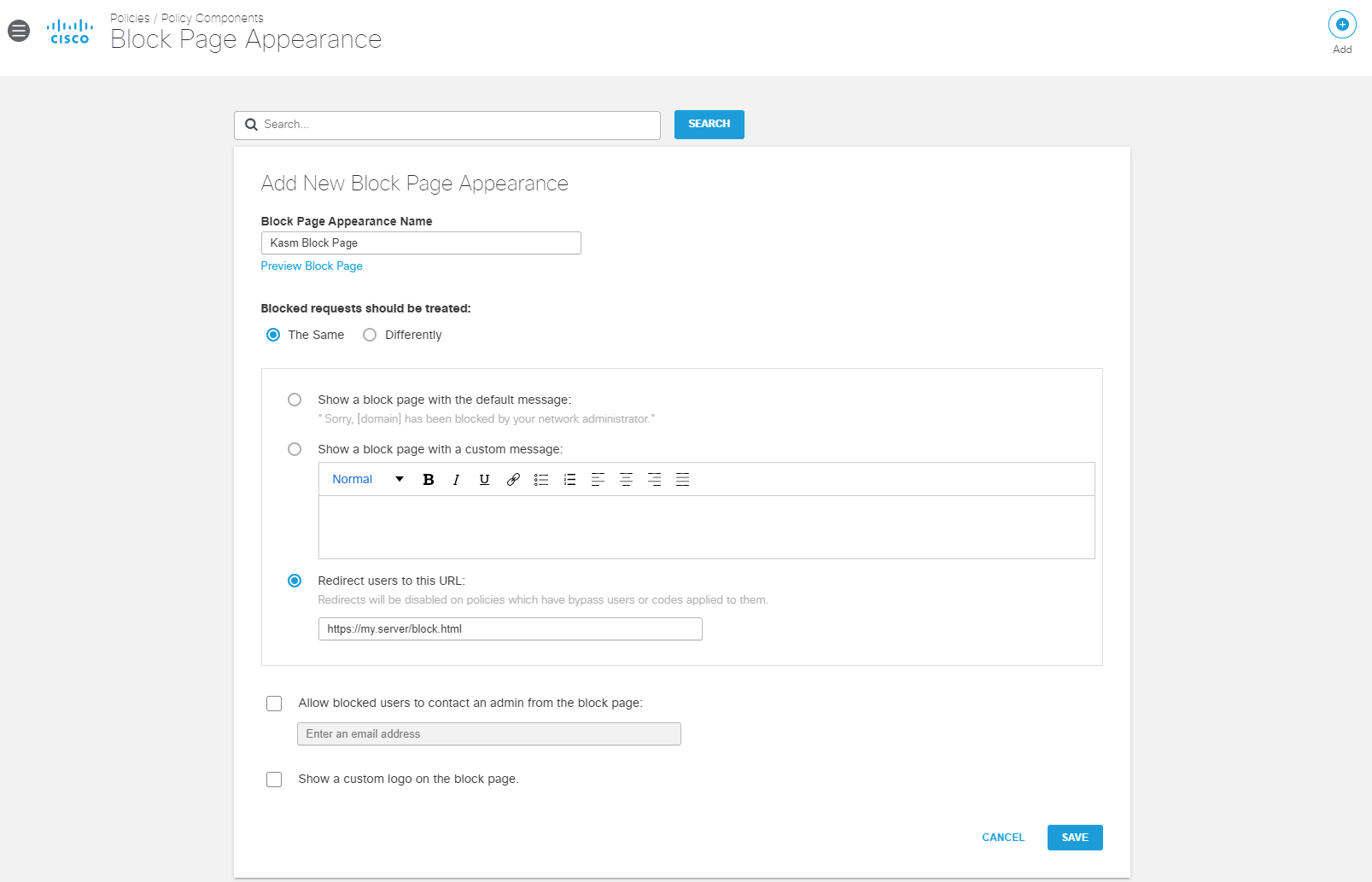

    ../_images/block_page_appearance_config.png

    Add New Block Page Appearance

  8. Select Policies -> Management -> All Policies

  9. Expand the desired policy (e.g Default Policy) and select Edit under Custom Block Page Applied

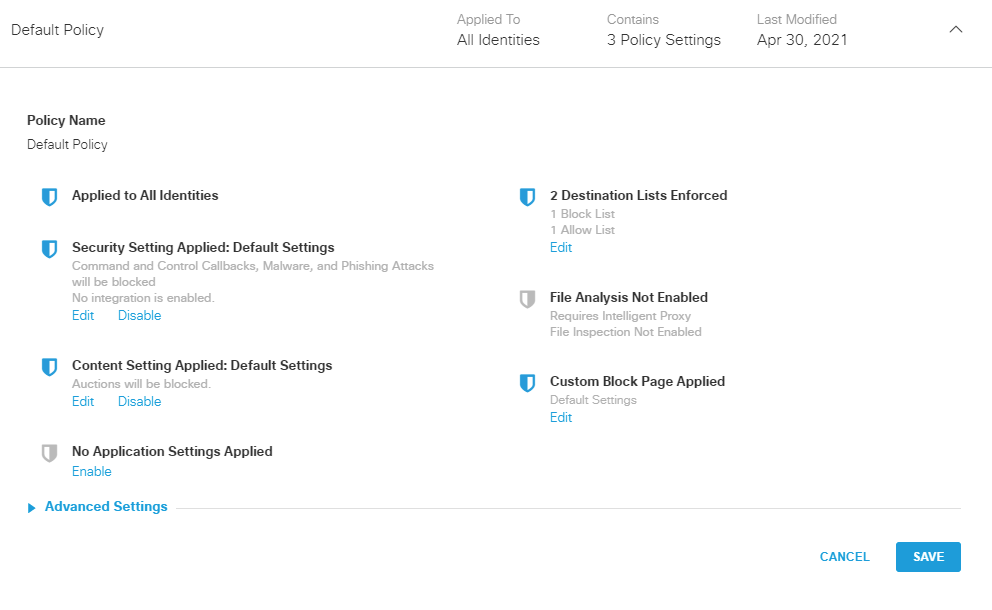

    ../_images/default_policy.png

    The Default Policy

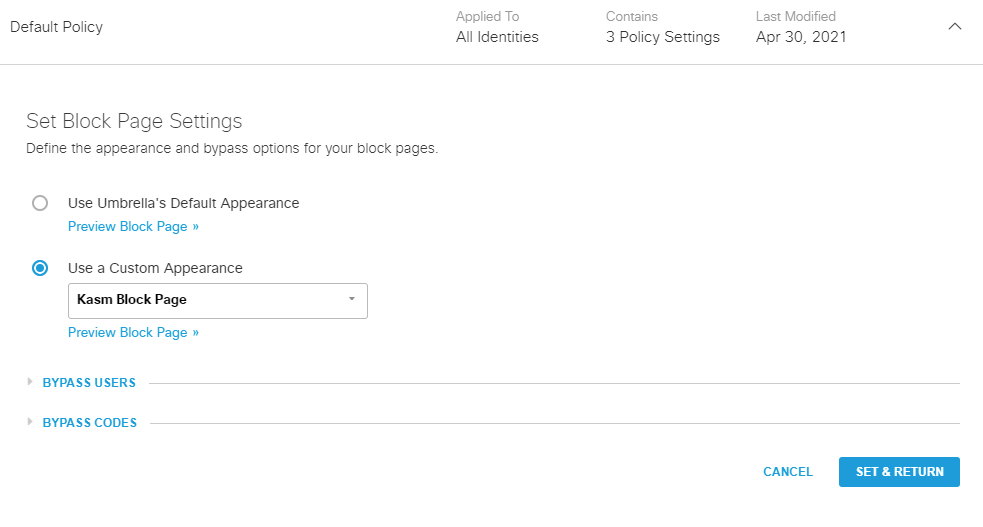

  10. Select Use a Custom Appearance and select the policy created in the previous steps (e.g Kasm Block Page)

    ../_images/set_block_policy.png

    Set Block Page

  11. Select Set & Return then select Save

    Note

    It may take several minutes for changes to the policy to take effect.

  12. When applicable users violate the policy they should see the configured block page with the option to open the link in Kasm. Cisco provides Test URLs to help verify behavior.

Kasm Sessions as Cisco Umbrella / OpenDNS Clients

DNS Configuration

Administrators can configure Kasm sessions to use custom DNS server such as those provide by Cisco Umbrella / OpenDNS. Use the following steps to locate the Cisco Umbrella DNS servers for the account, then see Custom DNS Servers for configuration details details.

  1. Log into the Cisco Umbrella Portal

  2. Select Deployments -> Core Identities -> Networks

    ../_images/networks_menu.png

    Networks Menu

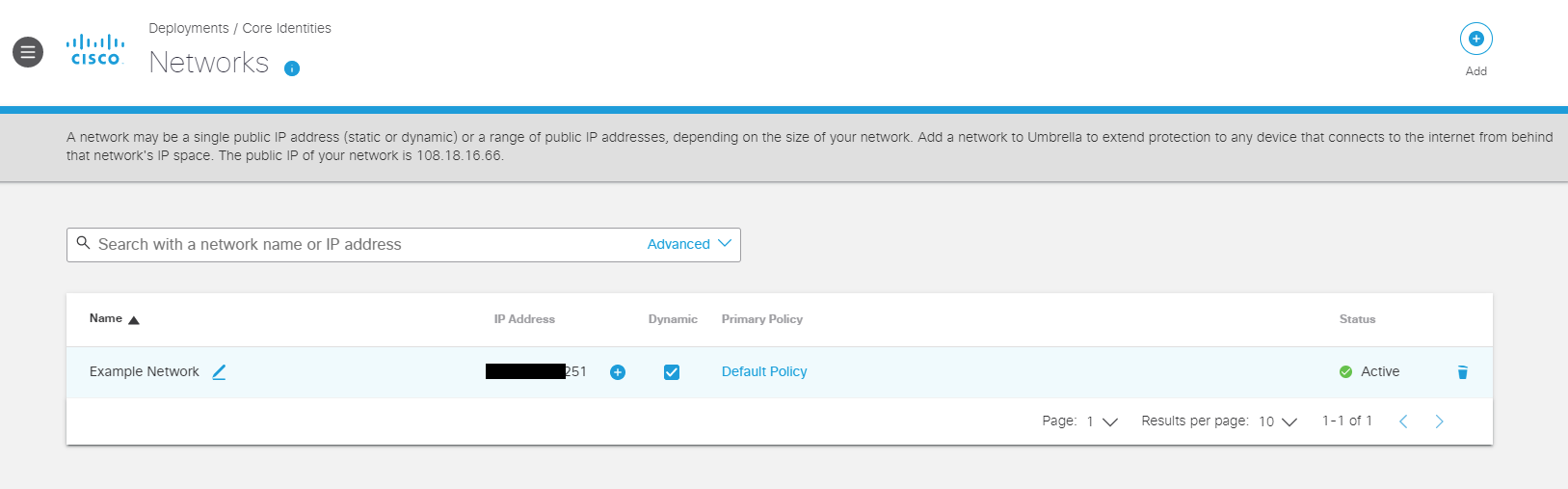

  3. Select + next to desired networks’s IP address

    ../_images/network_selection.png

    Network Selection

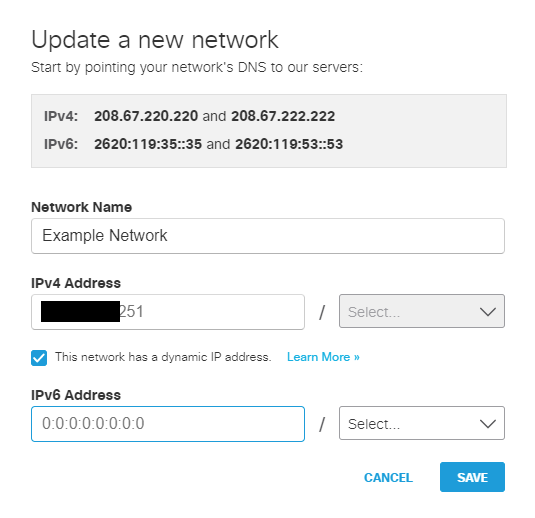

  4. The DNS Servers are displayed. Utilize the IPv4 DNS Servers when configuring an image with Custom DNS Servers

    ../_images/dns_servers.png

    DNS Servers

  1. Once configured, navigate to one of the Test URLs from within the Kasm session to verify the configuration.

Root Certificate Installation

In order to for Cisco Umbrella / OpenDNS to utilize more advanced filtering , inspect SSL traffic and display block pages without the user getting a warning, the custom root certificate must be installed within the Kasm Image. Use the following steps to retrieve the CA cert provided by Cisco. Once retrieved, create a custom Image using the certificate by following the Custom CA Certificates instructions.

Helpful References * https://docs.umbrella.com/umbrella-user-guide/docs/install-the-cisco-umbrella-root-certificate

  1. Log into the Cisco Umbrella Portal

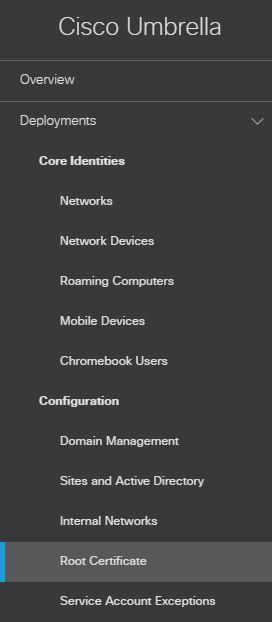

  2. Select Deployments -> Configuration -> Root Certificate

    ../_images/root_certificate_menu.png

    Root Certificate Menu

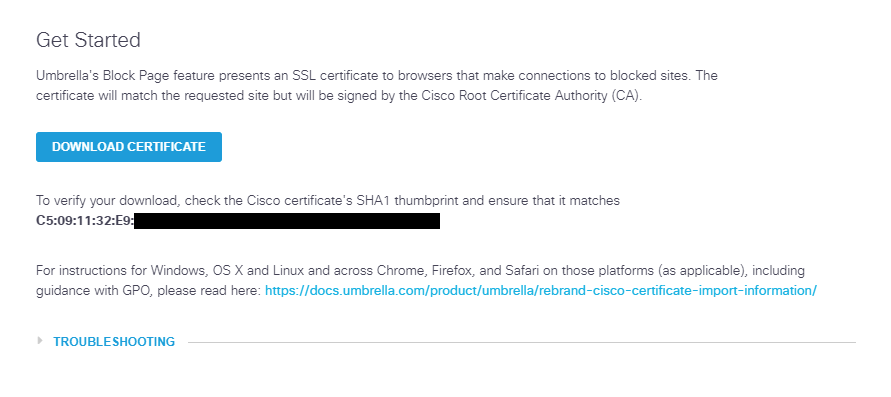

  3. Select Download Certificate

    ../_images/root_certificate_download.png

    DNS Servers

  4. Create a custom Image using the certificate by following the Custom CA Certificates instructions.
