Developer API
The Kasm Workspaces Developer API can be leveraged to extend the systems functionality and/or integrate with an exiting platform. Integrators interface with the API to create and manage sessions, users and groups.

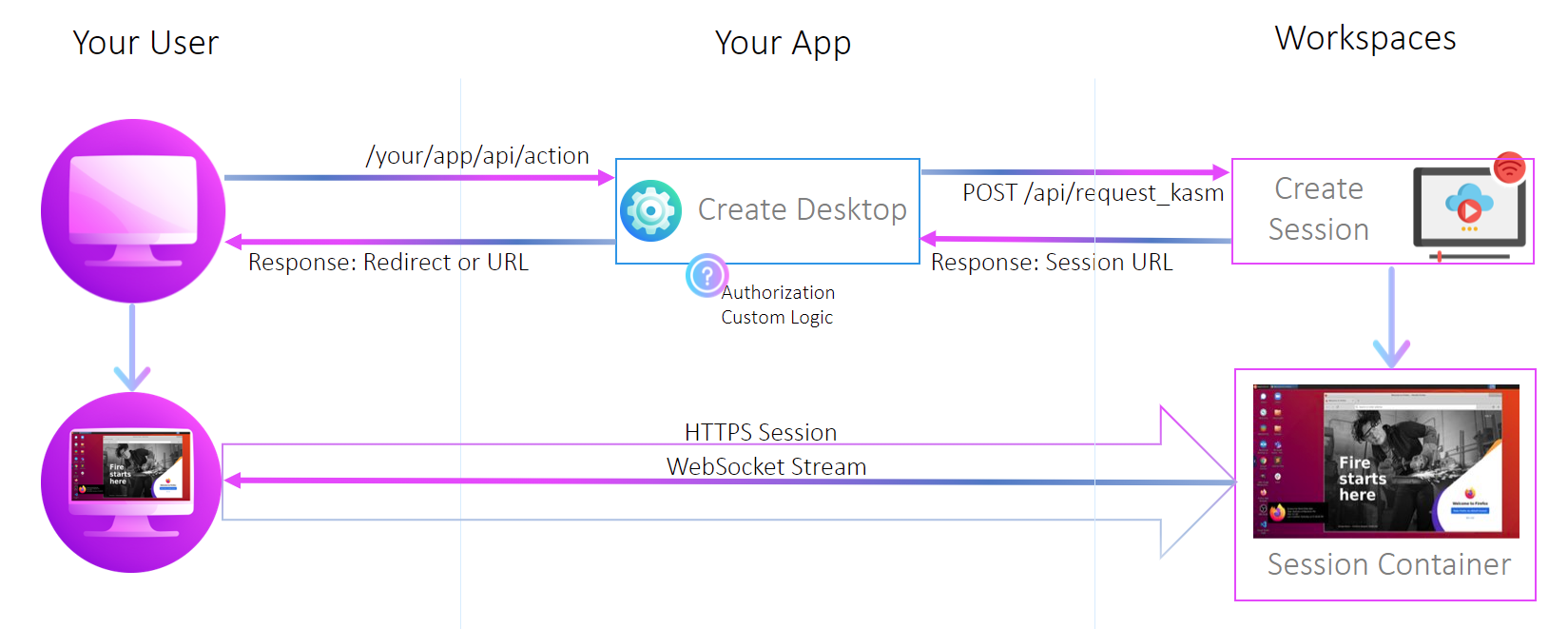

Integration Workflow
Code-less Integration Options
Integrators are encouraged to review Session Casting which provides an easy way to expose access to Kasm sessions via special URLs.
API Keys
API Keys can be generated via the Developers tab. An API_KEY and API_KEY_SECRET will be automatically generated.

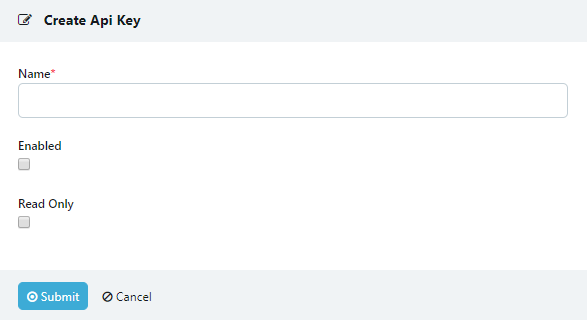

Creating an API Key
Authentication
The API key and secret must be sent with all of the following requests as json data.
{ "api_key": "bMjMwTT0JKUQ" "api_key_secret": "KUNAvRw4KLHGmldBxhRUD5sAhWkvJVzS" }
Base URL
https://<kasm_server>/api/public/
Errors
In the event of an error processing an api request, Kasm will respond with an error_message in the body of the json response
Example Response
{"error_message": "<error details>"}
Users
Create User
Create a new user.
- POST /api/public/create_user
Example request:
{ "api_key":"{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_user": { "username" : "test_user1@example.com", "first_name" : "Bob", "last_name" : "Williams", "locked": false, "disabled": false, "organization": "example", "phone": "123-456-7890", "password": "3UPKGg7g!a9g2@39v6" } }
Example response:
{ "user": { "first_name": "Bob", "username": "test_user1@example.com", "realm": "local", "last_name": "Williams", "phone": "123-456-7890", "last_session": null, "notes": null, "user_id": "50faa5439c574b518cd868dac9256e4b", "groups": [ { "name": "All Users", "group_id": "68d557ac4cac42cca9f31c7c853de0f3" } ], "disabled": false, "organization": "example", "locked": false } }
Get User
Retrieve the properties of an existing user. target_user.user_id or target_user.username can be passed
- POST /api/public/get_user
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_user": { "user_id": "4bbb6998064a4d1ea4685f3cdd05feb4", "username": "user@kasm.local" } }
Example response:
{ "user": { "user_id": "4bbb6998064a4d1ea4685f3cdd05feb4", "username": "user@kasm.local", "locked": false, "last_session": "2020-11-09 14:41:33.578622", "groups": [ { "name": "All Users", "group_id": "68d557ac4cac42cca9f31c7c853de0f3" } ], "first_name": null, "last_name": null, "phone": null, "organization": null, "notes": null, "kasms": [ { "kasm_id": "28cfc2a510bb424cad18e571f11ee26c", "start_date": "2020-11-09 14:46:42.321900", "keepalive_date": "2020-11-09 14:46:43.140623", "expiration_date": "2020-11-09 15:46:43.140623", "server": { "server_id": "36e2aeff0e02445db26a521c9c85f1c1", "hostname": "proxy", "port": 443 } } ], "realm": "local", "two_factor": false, "program_id": null, "hash": "9fdfdaad0098cdd8a466b2badbaf962e40214affb07596a6e9d776a409793780" } }
Get Users
Retrieve the list of users registered in the system.
- POST /api/public/get_users
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", }
Example response:
{ "users": [ { "kasms": [], "company": {}, "username": "user@kasm.local", "locked": false, "realm": "local", "phone": null, "first_name": null, "notes": null, "user_id": "57e8fc1a-fa86-4ff4-9474-60d9831f42d5", "last_session": "2020-11-12 14:29:25.808258", "groups": [ { "name": "All Users", "group_id": "68d557ac4cac42cca9f31c7c853de0f3" } ], "disabled": true, "organization": null, "last_name": null }, { "kasms": [], "company": {}, "username": "admin@kasm.local", "locked": false, "realm": "local", "phone": null, "first_name": null, "notes": null, "user_id": "4acb13bf-1215-4972-9f0d-8c537d17f2da", "last_session": "2020-11-12 14:35:19.700863", "groups": [ { "name": "All Users", "group_id": "68d557ac4cac42cca9f31c7c853de0f3" }, { "name": "Administrators", "group_id": "31aa063c670648589533d3c42092d02a" } ], "disabled": false, "organization": null, "last_name": null } ] }
Update User
Update the properties of an existing user.
- POST /api/public/update_user
Example request:
{ "api_key":"{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_user": { "user_id": "4acb13bf-1215-4972-9f0d-8c537d17f2da", "username" : "test_user1@example.com", "first_name" : "Bob", "last_name" : "Williams", "locked": false, "disabled": false, "organization": "example", "phone": "123-456-7890", "password": "3UPKGg7g!a9g2@39v6" } }
Example response:
{ "user": { "first_name": "Bob", "username": "test_user1@example.com", "realm": "local", "last_name": "Williams", "phone": "123-456-7890", "last_session": null, "notes": null, "user_id": "50faa5439c574b518cd868dac9256e4b", "groups": [ { "name": "All Users", "group_id": "68d557ac4cac42cca9f31c7c853de0f3" } ], "disabled": false, "organization": "example", "locked": false } }
Delete User
Delete an existing user. If the user has any existing Kasm sessions, deletion will fail. Set the force option to true to delete the user’s sessions and delete the user.
- POST /api/public/delete_user
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_user": { "user_id": "4bbb6998064a4d1ea4685f3cdd05feb4" }, "force": false }
Example response:
{}
Logout User
Logout all sessions for an existing user.
- POST /api/public/logout_user
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_user": { "user_id": "4bbb6998064a4d1ea4685f3cdd05feb4" } }
Example response:
{}
Get User Attributes
Get the attribute (preferences) settings for an existing user.
- POST /api/public/get_attributes
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_user": { "user_id": "67d7c4e6-f891-4900-897f-ce5ed62fecc0", } }
Example response:
{ "user_attributes": { "ssh_public_key": "ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCjy8izTD7DlykY0J7iiBn4ysIRqLBwM94ZnjfYH1XAo96ay3grQjSDl5f4u0hrVz6bX62kgPlm9QvTqceNZ+rC/anKp/9nQIrDM6y2W3jNUM6Eo+Ryh7xIOII2lnCbtE/M4urX4lZx3oB2JyIMSIN3yvKUBCSht5FsFabguc8i+nwLvXjmnZx+fcR2/BNcIM9UjCfYBjLFd1XFER7aIXjRy7y2MJQHCFrzhDThNllJ6C1oMZiBsBJ5lXpBmlim80A9IvcW7YBgsAQoqLgrCvRc7IdENTzPAyyhODE/ib5SkwK/peUuCRM+SZnPpUGlv9emLXVjrg5P+TPO/N/v7lyj", "show_tips": false, "user_id": "57e8fc1afa864ff4947460d9831f42d5", "toggle_control_panel": false, "chat_sfx": true, "user_attributes_id": "ef7b72db25b14ab1ac98ac19676ac93f", "default_image": null, "auto_login_kasm": null } }
Update User Attributes
Update a users attributes.
- POST /api/public/update_user_attributes
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_user_attributes": { "user_id": "67d7c4e6-f891-4900-897f-ce5ed62fecc0", "auto_login_kasm": false, "default_image": "b2609fbf72954b20a56c1fe502aa2c41", "show_tips": false, "toggle_control_panel": false } }
Example response:
{}
Kasms
Request Kasm
Requesting a Kasm will create and start the container and assign a user to that Kasm.
Note
If you intend to integrate Kasm into your app and will utilize iframes to load user sessions, be sure to set the Same Site Cookie Policy Global Setting to None if the Kasm Workspaces server is hosted under a different domain name. Reference: https://developer.mozilla.org/en-US/docs/Web/HTTP/Headers/Set-Cookie/SameSite
- POST /api/public/request_kasm
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "user_id": "8affcdbc16fc4910acb8a6dc268cd7ed", "image_id": "6a2d63fa8959412ca5fddd3890fb7223", "enable_sharing": true, "environment": { "ENV_VAR": "value" } }
Example response:
{ "kasm_id": "6d62ec66-3062-4f1d-b861-aeb3f5ca2390", "session_token": "b03bf84a-53fc-4934-85e4-c434461f1178", "username": "1d47uudwcynkd2su", "status": "starting", "share_id": "fe9770a4", "user_id": "8affcdbc16fc4910acb8a6dc268cd7ed", "kasm_url": "/#/connect/kasm/6d62ec66-3062-4f1d-b861-aeb3f5ca2390/8affcdbc16fc4910acb8a6dc268cd7ed/b03bf84a-53fc-4934-85e4-c434461f1178" }
Arguments
- user_id* string:
An user Id can be specified to create the Kasm under that user. If no User ID is sent an anonymous user will be created and used for the Kasm.
- image_id* string:
An image id can be sent for the desired image. Otherwise the default image sent on the group or user level will be used.
- enable_sharing* boolean:
When the enable sharing flag is set to true the kasm will be created with sharing mode automatically enabled.
- kasm_url* string:
If specified, the browser inside the Kasm session will navigate to this page. This is only applicable if the Image used is Kasm Chrome, Kasm Firefox, or Kasm Tor Browser.
- environment* dict:
Optional environmental variables to inject into the created container.
* Optional
Response Format
- kasm_id string:
Returns the ID for the newly created Kasm.
- session_token string:
Returns the token created for the user used in authorization of the Kasm.
- username string:
Returns the username of the specified or newly created user.
- status string:
Returns the operational status of the Kasm. Will be in Starting, Running or Stopped state.
- share_id string:
Returns the Share id
- user_id string:
Returns the user id of the specified or newly created user
- kasm_url string:
Returns the url path to the specified kasm. This path must be appended to the current Kasm Workspaces server address. It is in the form of /#/connect/kasm/<kasm_id>/<user_id>/<session_token>
Direct the user’s browser to this url to access the Kasm session. This link should not be re-used for different users.
Get Kasm Status
After creating a kasm the status can be checked with get_kasm_status. This call also updates the session token for the user creating a new connection link and invalidating the old one.
- POST /api/public/get_kasm_status
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "user_id": "c7357f11eb4d47ad8021b5847d8415d8", "kasm_id": "d79ccb22-f6e7-4473-b8a2-a77da82278da" }
Example response:
{ "current_time": "2020-11-12 13:30:24.833834", "kasm_url": "/#/connect/kasm/116f18170fdc4a1a87146164a880fb93/583035bb-5819-4e51-83b9-21223badc569/2d110a49-4c6a-48b9-8cfb-398d6f543d5b", "kasm": { "expiration_date": "2020-11-12 14:28:40.446756", "container_ip": "192.168.32.9", "start_date": "2020-11-12 13:28:40.446737", "point_of_presence": null, "token": "43ab8a765e1e42fe9ee637783731f577", "image_id": "e12266d0f5f44bf5afb80b6c41fabce2", "view_only_token": "6f756f76e8704772bd8e32eb4d7bb835", "cores": 1.0, "hostname": "kasm.server", "kasm_id": "116f18170fdc4a1a87146164a880fb93", "port_map": { "audio": { "port": 443, "path": "desktop/116f1817-0fdc-4a1a-8714-6164a880fb93/audio" }, "vnc": { "port": 443, "path": "desktop/116f1817-0fdc-4a1a-8714-6164a880fb93/vnc" }, "audio_input": { "port": 443, "path": "desktop/116f1817-0fdc-4a1a-8714-6164a880fb93/audio_input" }, "uploads": { "port": 443, "path": "desktop/116f1817-0fdc-4a1a-8714-6164a880fb93/uploads" } }, "image": { "image_id": "e12266d0f5f44bf5afb80b6c41fabce2", "name": "kasmweb/chrome:1.8.0", "image_src": "img/thumbnails/chrome.png", "friendly_name": "Kasm Chrome" }, "is_persistent_profile": false, "memory": 1768000000, "operational_status": "running", "client_settings": { "allow_kasm_audio": false, "idle_disconnect": 20, "lock_sharing_video_mode": true, "allow_persistent_profile": false, "allow_kasm_clipboard_down": false, "allow_kasm_microphone": false, "allow_kasm_downloads": false, "kasm_audio_default_on": false, "allow_point_of_presence": false, "allow_kasm_uploads": false, "allow_kasm_clipboard_up": false, "enable_webp": false, "allow_kasm_sharing": true, "allow_kasm_clipboard_seamless": false }, "container_id": "dbc977159f79e55c466fec52a5b4954b7c26ba88e51937d85a5077d7c79e92e5", "port": 443, "keepalive_date": "2020-11-12 13:28:40.446754", "user_id": "583035bb58194e5183b921223badc569", "persistent_profile_mode": null, "share_id": "30a09d61", "host": "192.168.32.8", "server_id": "8270f8f0acfd4a34a56cc9a9cb7a67d9" } }
Arguments
- user_id string:
The user ID associated with the requested kasm.
- kasm_id string:
The ID of the desired Kasm.
- skip_agent_check bool
Skip connecting out to the agent to verify status of the container, instead use the current value in the database for the status.
Response Format
- current_time string:
Returns the time at which the call was recieved in UTC.
- kasm json object:
Returns the Kasm object containing all of the current information.
- kasm_url string:
Returns the link path to the specified kasm. This path must be appended to the current Kasm Workspaces server address. It is in the form of /#/connect/kasm/<kasm_id>/<user_id>/<session_token>
Direct the user’s browser to this url to access the Kasm session. This link should not be re-used for different users.
Join Kasm
Join Kasm returns the status of the shared kasm and a join url to connect to the Kasm session as a view-only user.
- POST /api/public/join_kasm
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "user_id":"c7357f11eb4d47ad8021b5847d8415d8", "share_id":"89cc8cd3" }
Example response:
{ "current_time": "2020-11-12 13:36:16.065711", "session_token": "c9ade890-7693-44bc-a1d4-797bbddf6771", "user_id": "583035bb58194e5183b921223badc569", "kasm": { "port_map": { "vnc": { "port": 443, "path": "desktop/116f1817-0fdc-4a1a-8714-6164a880fb93/vnc" }, "audio": { "port": 443, "path": "desktop/116f1817-0fdc-4a1a-8714-6164a880fb93/audio" } }, "port": 443, "hostname": "kasm.server", "image": { "image_id": "e12266d0f5f44bf5afb80b6c41fabce2", "name": "kasmweb/chrome:1.8.0", "image_src": "img/thumbnails/chrome.png", "friendly_name": "Kasm Chrome" }, "view_only_token": "6f756f76e8704772bd8e32eb4d7bb835", "user": { "username": "anon_2wipg0symxwmm4i1" }, "share_id": "30a09d61", "host": "192.168.32.8", "client_settings": { "allow_kasm_audio": false, "idle_disconnect": 20, "lock_sharing_video_mode": true, "allow_persistent_profile": false, "allow_kasm_clipboard_down": false, "allow_kasm_microphone": false, "allow_kasm_downloads": false, "kasm_audio_default_on": false, "allow_point_of_presence": false, "allow_kasm_uploads": false, "allow_kasm_clipboard_up": false, "enable_webp": false, "allow_kasm_sharing": true, "allow_kasm_clipboard_seamless": false }, "kasm_id": "116f18170fdc4a1a87146164a880fb93" }, "username": "anon_2wipg0symxwmm4i1", "kasm_url": "/#/connect/join/30a09d61/583035bb58194e5183b921223badc569/c9ade890-7693-44bc-a1d4-797bbddf6771" }
Arguments
- user_id* string:
The user ID used to create the join link. If none supplied an anonymous user will be created.
- share_id string:
The share ID of the desired kasm.
* Optional
Response Format
- current_time string:
Returns the time at which the call was received in UTC.
- kasm json object:
Returns the Kasm object containing all of the current information.
- kasm_url string:
Returns the link path to the specified shared kasm. This path must be appended to the current kasm server address. It is in the form of /#/connect/join/<share_id>/<user_id>/<session_token>
Direct the user’s browser to this url to access the Kasm session. This link should not be re-used for different users.
- session_token string:
Returns the token created for the user used in authorization of the Kasm.
- username string:
Returns the username of the specified or newly created user.
- user_id string:
Returns the user ID of the specified or newly created user.
Get Kasms
Retrieve a list of live sessions.
- POST /api/public/get_kasms
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}" }
Example response:
{ "current_time": "2020-11-12 13:45:33.253299", "kasms": [ { "expiration_date": "2020-11-12 14:28:40.446756", "container_ip": "192.168.32.9", "server": { "port": 443, "hostname": "proxy", "zone_name": "default", "provider": "hardware" }, "user": { "username": "anon_2wipg0symxwmm4i1" }, "start_date": "2020-11-12 13:28:40.446737", "point_of_presence": null, "token": "43ab8a765e1e42fe9ee637783731f577", "image_id": "e12266d0f5f44bf5afb80b6c41fabce2", "view_only_token": "6f756f76e8704772bd8e32eb4d7bb835", "cores": 1.0, "hostname": "proxy", "kasm_id": "116f18170fdc4a1a87146164a880fb93", "port_map": { "audio": { "port": 443, "path": "desktop/116f1817-0fdc-4a1a-8714-6164a880fb93/audio" }, "vnc": { "port": 443, "path": "desktop/116f1817-0fdc-4a1a-8714-6164a880fb93/vnc" }, "audio_input": { "port": 443, "path": "desktop/116f1817-0fdc-4a1a-8714-6164a880fb93/audio_input" }, "uploads": { "port": 443, "path": "desktop/116f1817-0fdc-4a1a-8714-6164a880fb93/uploads" } }, "image": { "image_id": "e12266d0f5f44bf5afb80b6c41fabce2", "name": "kasmweb/chrome:1.8.0", "image_src": "img/thumbnails/chrome.png", "friendly_name": "Kasm Chrome" }, "is_persistent_profile": false, "memory": 1768000000, "operational_status": "running", "client_settings": { "allow_kasm_audio": false, "idle_disconnect": 20, "lock_sharing_video_mode": true, "allow_persistent_profile": false, "allow_kasm_clipboard_down": false, "allow_kasm_microphone": false, "allow_kasm_downloads": false, "kasm_audio_default_on": false, "allow_point_of_presence": false, "allow_kasm_uploads": false, "allow_kasm_clipboard_up": false, "enable_webp": false, "allow_kasm_sharing": true, "allow_kasm_clipboard_seamless": false }, "container_id": "dbc977159f79e55c466fec52a5b4954b7c26ba88e51937d85a5077d7c79e92e5", "port": 443, "keepalive_date": "2020-11-12 13:28:40.446754", "user_id": "583035bb58194e5183b921223badc569", "persistent_profile_mode": null, "share_id": "30a09d61", "host": "192.168.32.8", "server_id": "8270f8f0acfd4a34a56cc9a9cb7a67d9" } ] }
Destroy Kasm
Destroy kasm can be called to destroy a Kasm.
- POST /api/public/destroy_kasm
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}" "kasm_id": "1a85859d-9d75-45e1-a173-e720472a24f8", "user_id": "4d892bf39321494da9a159178972c147", }
Example response:
{}Arguments
- user_id string:
The user ID used of the kasm owner.
- kasm_id string:
The ID of the kasm to be destroyed.
Response Format
If empty response is sent the Kasm was successfully deleted.
Keepalive
Issue a keepalive to reset the expiration time of a Kasm session. The new expiration time will be updated to reflect the keepalive_expiration Group Setting assigned to the Kasm’s associated user.
- POST /api/public/keepalive
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}" "kasm_id": "1a85859d-9d75-45e1-a173-e720472a24f8" }
Example response:
{ "usage_reached": false }
Arguments
- kasm_id string:
The ID of the kasm to issue the expiration update.
Response Format
The response returns a single value usage_reached. If true, the user has exceeded the quota defined be the usage_limit group setting and the expiration time was not reset.
Frame Stats
Gets timing statistics for the next processed frame for a Kasm session. A user must be logged in and using a session for this API call to work. The stats include detailed timing stats on the processing of a single frame. Stats include frame analysis, jpeg/webp encoding, time in flight to client, and more.
- POST /api/public/get_kasm_frame_stats
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "kasm_id": "1a85859d-9d75-45e1-a173-e720472a24f8", "user_id": "4035b5e67750416cb8d6db14573ea38c", "client": "auto" }
Example response:
{ "frame": { "resx": 1512, "resy": 858, "changed": 10, "server_time": 12}, "clients": [ { "client": "172.18.0.8_1635856777.276370::websocket", "client_time": 0, "ping": 27, "processes": [{"process_name": "scanRenderQ", "time": 0}] } ], "analysis": 2, "screenshot": 2, "encoding_total": 2, "videoscaling": 0, "tightjpegencoder": {"time": 0, "count": 5, "area": 23005}, "tightwebpencoder": {"time": 0, "count": 0, "area": 0} }
Arguments
- kasm_id string:
The ID of the kasm to get the stats for
- user_id string:
The ID of the user the session belongs to
- client* string:
Which client to retrieve stats for: none, auto, all, or <user_websocket_id>. auto is the default and this will automatically select the client side stats for only the owner of the Kasm session. Use none for Server side stats only. Use all to get stats for all websocket clients. Use a KasmVNC websocket id, such as 172.18.0.8_1627985086.157123::websocket, to specify a specific client.
* Optional
Response Format
- resx integer:
Resolution of frame on x axis.
- resy integer:
Resolutino of frame on y axis.
- changed integer:
Percentage of frame that had changes from last frame.
- server_time integer:
Wall clock time to process frame in ms. Many processes are multi-threaded, this stat shows what the actual time was to fully process the frame serverside.
- analysis integer:
Time taken, in ms, to perform pre-processing of the frame to determine changes.
- encoding_total integer:
Time taken, in ms, to perform encoding. A frame is broken down into rects and based on processing power the rects are encoded in a mix of jpeg and webp and multiple threads. This time indicates the total wall clock time taken to perform encoding.
- videoscaling integer:
When in video mode this represents the time taken, in ms, to perform scaling of the frame.
- tightjpegencoder integer:
Total time, in ms, taken to processes all jpeg rects. Processing occurs in parrallel and this is the aggregate runtime of all threads and is thus not wall clock time.
- tightwebpencoder integer:
Total time, in ms, taken to process all webp rects. Processing occurs in parrallel and this is the aggregate runtime of all threads and is thus not wall clock time.
- clients array:
Array of client side stats for each connected client. At this time, ping is the only relevant stat. Ping is the amount of round trip time it takes for comms to the client, divide by two to get one way trip time.
Bottleneck Stats
Returns CPU and network bottleneck statistics that are relevant to the Kasm rendering process, KasmVNC. These metrics may be used to determine if rendering performance issues are CPU constraints on the server-side KasmVNC process or network bandwidth constraints. Stats are returned for each connected client. Since Kasm supports sharing sessions, there can be multiple clients connected to a single session.
- POST /api/public/get_kasm_bottleneck_stats
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "kasm_id": "1a85859d-9d75-45e1-a173-e720472a24f8", "user_id": "4035b5e67750416cb8d6db14573ea38c" }
Example response:
{ "kasm_user": { "172.18.0.8_1635858087.783615::websocket": [ 9.8, 9.8, 9.7, 9.7 ] } }
Arguments
- kasm_id string:
The ID of the kasm to issue the expiration update.
- user_id string:
The ID of the user that owns the session.
Response Format
The response is JSON data containing an array of kasm user sessions. Each session has a dictionary entry with the key being the KasmVNC identifier for that websocket connection. The value is an array of decimal values ranging from 0 to 10. They represent, in order: CPU, CPU average, network, and network average. The lower the number, the moreconstrained KasmVNC is in being able to keep up with the target framerate.
Screenshot
Gets a screenshot of the requested session.
- POST /api/public/get_kasm_screenshot
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "kasm_id": "1a85859d-9d75-45e1-a173-e720472a24f8", "user_id": "4035b5e67750416cb8d6db14573ea38c", "width": 300, "height": 300 }
curl https://kasm.example.com/api/public/get_kasm_screenshot -X POST -H 'Content-Type: application/json' -k -d '{ "api_key": "Tqfi8qmFOrkp", "api_key_secret": "nEtNfNkXx46nEoYpJpVug2c9xP4dpqR8", "kasm_id": "95018d17759e4fffbb5670c9d6c412d0", "user_id": "4035b5e67750416cb8d6db14573ea38c", "width": 1000 }' -o /tmp/image.jpg
Arguments
- kasm_id string:
The ID of the kasm to issue the expiration update.
- user_id string:
The ID of the user the session belongs to.
- width* integer:
The width of the image. Default is 300.
- height* integer:
The height of the image. Height is automatically overriden because the apsect ratio is kept and the height is adjusted accordingly.
* Optional
Response Format
The response is a JPEG image.
Exec Command
Execute an arbitrary command inside of a user’s session.
- POST /api/public/exec_command_kasm
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "kasm_id": "1a85859d-9d75-45e1-a173-e720472a24f8", "user_id": "4035b5e67750416cb8d6db14573ea38c", "exec_config": { "cmd": "xterm -c 'echo hello'", "environment": { "SOME_ENV_VAR": "some value" }, "workdir": "/home/kasm-user", "privileged": false, "user": "root" } }
curl https://kasm.example.com/api/public/exec_command_kasm -X POST -H 'Content-Type: application/json' -k -d '{ "api_k "Tqfi8qmFOrkp", "api_key_secret": "nEtNfNkXx46nEoYpJpVug2c9xP4dpqR8", "kasm_id": "5dff73a8-8b6b-4b8b-bff7-48183a7c757b", "user_id": "4035b5e67750416cb8d6db14573ea38c", "exec_config": { "cmd": "xterm", "environment": { "SOME_ENV_VAR": "value" } } }'
Arguments
- kasm_id string:
The ID of the kasm to issue the expiration update.
- user_id string:
The ID of the user the session belongs to.
- exec_config dict:
Dictionary of execution settings and the command to run.
- exec_config.cmd string:
The command to run within the user’s container.
- exec_config.environment* dict:
Environmental variables to be added to the environment for this exec session.
- exec_config.workdir* string:
Path to working directory for this exec session.
- exec_config.privileged* bool:
Run exec session as privileged.
- exec_config.user* string:
The user to run the command as. By default it runs as the sandboxed normal user account. Specifying ‘root’ as the value will run the command as root inside the container and bypass the sandboxing that Kasm puts in place. The user value should be either root or not specified so that it runs as the sandboxed user, any other setting will result in the command failing.
* Optional
Response Format
- kasm dict:
A dictionary containing details about the container that the command was executed on.
- current_time timestamp:
The date and time the command was executed, in UTC.
Session Component Control
The developer may choose to hide the display of certain visual components that normally appear during a Kasm session.
This is done by appending the following query arguments to any of the kasm_url response urls generated by the apis
above.
Example
/#/connect/join/89cc8cd3/c7357f11eb4d47ad8021b5847d8415d8/070fce1f-86c6-4e05-9b10-935632acb8ce?disable_control_panel=1&disable_tips=1&disable_chat=1&disable_fixed_res=1
Query Arguments
disable_control_panel=1
Hides the Kasm control panel that is normally used for uploads, downloads etc. Users will be unable to access this functionality.
disable_tips=1
Stops the tips modal from showing when the user connects to a session.
disable_chat=1
Hides the chat interface for shared sessions.
disable_fixed_res=1
By default, shared sessions are forced into a fixed resolution and aspect ratio. When specified this will allow the shared session to operate with a dynamic resolution and aspect ratio.
Images
Get Images
Retrieve a list of available images.
- POST /api/public/get_images
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}" }
Example response:
{ "images": [ { "restrict_to_network": false, "memory": 768000000, "zone_name": null, "x_res": 800, "description": "Single-Application : Chrome", "image_id": "b483f0a4fb6546f79064f9b6759758cb", "persistent_profile_path": null, "friendly_name": "Kasm Chrome", "volume_mappings": {}, "restrict_to_zone": false, "docker_token": null, "persistent_profile_config": {}, "cores": 1.0, "cpu_allocation_method": "Inherit", "docker_registry": "https://index.docker.io/v1/", "available": true, "run_config": { "hostname": "kasm" }, "imageAttributes": [ { "image_id": "b483f0a4fb6546f79064f9b6759758cb", "attr_id": "11cd3b92d73c4caaa84c70e75190ec25", "name": "vnc", "category": "port_map", "value": "6901/tcp" }, { "image_id": "b483f0a4fb6546f79064f9b6759758cb", "attr_id": "ec1531322190445db70d10c31766503a", "name": "audio", "category": "port_map", "value": "4901/tcp" }, { "image_id": "b483f0a4fb6546f79064f9b6759758cb", "attr_id": "3634ba1144bc4f64a932a561983c64f5", "name": "uploads", "category": "port_map", "value": "4902/tcp" } ], "docker_user": null, "restrict_to_server": false, "enabled": true, "name": "kasmweb/chrome:1.8.0", "zone_id": null, "y_res": 600, "server_id": null, "network_name": null, "exec_config": { "first_launch": { "environment": { "LAUNCH_URL": "" }, "cmd": "bash -c 'google-chrome --start-maximized \"$KASM_URL\"'" }, "go": { "cmd": "bash -c 'google-chrome --start-maximized \"$KASM_URL\"'" } }, "hash": null, "image_src": "img/thumbnails/chrome.png" } ] }
Groups
Add User to Group
Add a user to an existing group.
- POST /api/public/add_user_group
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_user": { "user_id": "67d7c4e6-f891-4900-897f-ce5ed62fecc0" }, "target_group": { "group_id": "87fd617577984033be5bd269b4d170c6" } }
Example response:
{}
Remove User from Group
Remove a user from an existing group.
- POST /api/public/remove_user_group
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_user": { "user_id": "67d7c4e6-f891-4900-897f-ce5ed62fecc0" }, "target_group": { "group_id": "87fd617577984033be5bd269b4d170c6" } }
Example response:
{}
Login
Get Login
Generate a link for the user to login to Kasm without the need to enter a username or password. Redirect the user to the provided url.
- POST /api/public/get_login
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_user": { "user_id": "67d7c4e6-f891-4900-897f-ce5ed62fecc0" } }
Example response:
{ "url": "https://kasm.server/#/connect/login/dash/57e8fc1afa864ff4947460d9831f42d5/930d6a5d-082e-438a-b5cf-98ae7ca5b67c" }
Licensing
Activate
License the deployment by submitting an activation key. If valid, the returned license key will automatically be applied to the deployment.
- POST /api/public/activate
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "activation_key": "-----BEGIN ACTIVATION KEY-----eyJ0eXAiOiJ...-----END ACTIVATION KEY-----", "seats" : 10, "issued_to": "ACME Corp" }
Example response:
{ "license": { "license_id": "12e887e9e94a4615849f7963e9c85363", "expiration": "2022-11-06 18:07:08", "issued_at": "2021-11-05 18:07:08", "issued_to": "ACME Corp", "limit": 10, "is_verified": true, "license_type": "Per Concurrent Kasm", "features": { "auto_scaling": true, "branding": true, "session_staging": true, "session_casting": true, "log_forwarding": true, "developer_api": true, "inject_ssh_keys": true, "saml": true, "ldap": true, "session_sharing": true, "login_banner": true, "url_categorization": true, "usage_limit": true }, "sku": "Enterprise" } }
Arguments
- activation_key string:
The activation key provide by Kasm Technologies.
- seats* integer:
The desired number of seats to license the deployment for. If omitted the deployment will be licensed using the maximum number of seats as dictated by the entitlement.
- issued_to* string:
A string representing the organization the deployment is licensed for.
* Optional
Response Format
- license json object:
The detailed information about the license generated.
Session Staging
Get Staging Configs
Get a list of Staging Configs.
- POST /api/public/get_staging_configs
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}" }
Example response:
{ "staging_configs": [ { "staging_config_id": "73f18b8826b74fb29a1066fb394878bc", "zone_id": "e35b0ebd444d4120ad6d4f3db221003d", "zone_name": "default", "image_id": "77b244ea4586469abde4feade309c377", "image_friendly_name": "Chrome", "num_sessions": 2, "num_current_sessions": 0, "expiration": 1, "allow_kasm_audio": true, "allow_kasm_uploads": false, "allow_kasm_downloads": true, "allow_kasm_clipboard_down": true, "allow_kasm_clipboard_up": true, "allow_kasm_microphone": true } ] }
Response Format
- staging_configs json object:
A list of Staging Configs.
Get Staging Config
Get an existing Staging Config.
- POST /api/public/get_staging_config
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_staging_config": { "staging_config_id": "ac3f18aa42ca4365874e51ab24f893c6" } }
Example response:
{ "staging_config": { "staging_config_id": "ac3f18aa42ca4365874e51ab24f893c6", "zone_id": "e35b0ebd444d4120ad6d4f3db221003d", "zone_name": "default", "image_id": "23b8330701e8492d985c25b2736ab522", "image_friendly_name": "Kali Linux", "num_sessions": 1, "num_current_sessions": 0, "expiration": 1.0, "allow_kasm_audio": true, "allow_kasm_uploads": true, "allow_kasm_downloads": true, "allow_kasm_clipboard_down": true, "allow_kasm_clipboard_up": true, "allow_kasm_microphone": true } }
Arguments
- target_staging_config.staging_config_id string:
The ID of the staging config to be updated.
Response Format
- staging_config json object:
The requested staging config.
Create Staging Config
Create a new Staging Config.
- POST /api/public/create_staging_config
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_staging_config": { "zone_id": "e35b0ebd444d4120ad6d4f3db221003d", "image_id": "23b8330701e8492d985c25b2736ab522", "num_sessions": 1, "expiration": 1, "allow_kasm_audio": true, "allow_kasm_uploads": true, "allow_kasm_downloads": true, "allow_kasm_clipboard_down": true, "allow_kasm_clipboard_up": true, "allow_kasm_microphone": true } }
Example response:
{ "staging_config": { "staging_config_id": "ac3f18aa42ca4365874e51ab24f893c6", "zone_id": "e35b0ebd444d4120ad6d4f3db221003d", "zone_name": "default", "image_id": "23b8330701e8492d985c25b2736ab522", "image_friendly_name": "Kali Linux", "num_sessions": 1, "num_current_sessions": 0, "expiration": 1, "allow_kasm_audio": true, "allow_kasm_uploads": true, "allow_kasm_downloads": true, "allow_kasm_clipboard_down": true, "allow_kasm_clipboard_up": true, "allow_kasm_microphone": true } }
Arguments
- target_staging_config.zone_id string:
The Zone Id for the staging config.
- target_staging_config.image_id string:
The Image Id to use for the staging config.
- target_staging_config.num_sessions integer
The number of sessions the system will attempt to have staged at any given time.
- target_staging_config.expiration integer
Staged sessions that have not been assigned to a user will expire after this amount of time (in hours). The system will destroy the staged sessions and re-created them.
- target_staging_config.allow_kasm_audio bool
When enabled, the staged session will support streaming audio from the session to the user.
- target_staging_config.allow_kasm_uploads bool
When enabled, the staged session will allow the user to upload files from their local computer to the session via the upload widget in the control panel.
- target_staging_config.allow_kasm_downloads bool
When enabled, the staged session will allow download files from the session to their local computer via the control panel download widget.
- target_staging_config.allow_kasm_clipboard_down bool
When enabled, the staged session will allow copying data from the session to the users local computer via the clipboard.
- target_staging_config.allow_kasm_clipboard_up bool
When enabled, the staged session will allow copying data from the user’s local computer to the session.
- target_staging_config.allow_kasm_microphone bool
When enabled, the staged session will allow the user to pass their local microphone into the session.
Response Format
- staging_config json object:
The created staging config.
Update Staging Config
Get a list of Staging Configs.
- POST /api/public/update_staging_config
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_staging_config": { "staging_config_id": "73f18b8826b74fb29a1066fb394878bc", "zone_id": "e35b0ebd444d4120ad6d4f3db221003d", "image_id": "77b244ea4586469abde4feade309c377", "num_sessions": 2, "expiration": 2, "allow_kasm_audio": false, "allow_kasm_uploads": false, "allow_kasm_downloads": false, "allow_kasm_clipboard_down": false, "allow_kasm_clipboard_up": false, "allow_kasm_microphone": false } }
Example response:
{ "staging_config": { "staging_config_id": "73f18b8826b74fb29a1066fb394878bc", "zone_id": "e35b0ebd444d4120ad6d4f3db221003d", "zone_name": "default", "image_id": "77b244ea4586469abde4feade309c377", "image_friendly_name": "Chrome", "num_sessions": 2, "num_current_sessions": 0, "expiration": 2, "allow_kasm_audio": false, "allow_kasm_uploads": false, "allow_kasm_downloads": false, "allow_kasm_clipboard_down": false, "allow_kasm_clipboard_up": false, "allow_kasm_microphone": false } }
Arguments
- target_staging_config.staging_config_id string:
The ID of the staging config to be updated.
- target_staging_config.zone_id* string:
The Zone Id for the staging config.
- target_staging_config.image_id* string:
The Image Id to use for the staging config.
- target_staging_config.num_sessions* integer
The number of sessions the system will attempt to have staged at any given time.
- target_staging_config.expiration* integer
Staged sessions that have not been assigned to a user will expire after this amount of time (in hours). The system will destroy the staged sessions and re-created them.
- target_staging_config.allow_kasm_audio* bool
When enabled, the staged session will support streaming audio from the session to the user.
- target_staging_config.allow_kasm_uploads* bool
When enabled, the staged session will allow the user to upload files from their local computer to the session via the upload widget in the control panel.
- target_staging_config.allow_kasm_downloads* bool
When enabled, the staged session will allow download files from the session to their local computer via the control panel download widget.
- target_staging_config.allow_kasm_clipboard_down* bool
When enabled, the staged session will allow copying data from the session to the users local computer via the clipboard.
- target_staging_config.allow_kasm_clipboard_up* bool
When enabled, the staged session will allow copying data from the user’s local computer to the session.
- target_staging_config.allow_kasm_microphone* bool
When enabled, the staged session will allow the user to pass their local microphone into the session.
* Optional
Response Format
- staging_config json object:
The updated staging config.
Delete Staging Config
Delete an existing Staging Config.
- POST /api/public/delete_staging_config
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_staging_config": { "staging_config_id": "ac3f18aa42ca4365874e51ab24f893c6" } }
Example response:
{}Arguments
- target_staging_config.staging_config_id string:
The ID of the staging config to be updated.
Response Format
If empty, the delete request was successful
Deployment Zones
Get Zones
Get a list of Deployment Zones.
- POST /api/public/get_zones
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "brief" : true }
Example response (Truncated for brevity):
{ "zones": [ { "zone_id": "556641990fbd433197b9e8f0d1e0404a", "zone_name": "default", "auto_scaling_enabled": false, "aws_enabled": false, "aws_region": "us-east-1", "aws_access_key_id": "changeme", "aws_secret_access_key": "**********", "ec2_agent_ami_id": "changeme" } ] }
Arguments
- brief* bool:
Limit the information returned for each zone.
* Optional
Response Format
- zones json object:
A list of Deployment Zones.
Session Tokens
Session tokens authenticate user’s requests to access functionality within the system.
Attributes
session_token
This is the value of the token: (UUID)
session_date
The time the token was created or last promoted (DateTime)
expires_at
The time the token will no longer be valid. This is session_date + the global setting “Session Lifetime” (DateTime)
Create Session Token
Create a session token for a user.
- POST /api/public/create_session_token
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_user": { "user_id": "009c3779-4fa0-4af8-9722-8daf195718c0" } }
Example response:
{ "session_token": { "session_token": "c324f7296dd3406594a261b411c862bb", "session_token_date": "2021-12-22 08:05:44.508675", "expires_at": "2021-12-23 08:05:44.508675" } }
Get Session Token
Query the information about a specific session token.
- POST /api/public/get_session_token
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_session_token": { "session_token": "b8885ffe108f491dbb66be31bceb34c2" } }
Example response:
{ "session_token": { "session_token": "b8885ffe108f491dbb66be31bceb34c2", "session_token_date": "2021-12-22 08:00:24.033284", "expires_at": "2021-12-25 16:00:24.033284" } }
Get Session Tokens
Get all session tokens for a user.
- POST /api/public/get_session_tokens
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_user": { "user_id": "009c3779-4fa0-4af8-9722-8daf195718c0" } }
Example response:
{ "session_tokens": [ { "session_token": "b8885ffe108f491dbb66be31bceb34c2", "session_token_date": "2021-12-22 07:50:11.047577", "expires_at": "2021-12-25 15:50:11.047577" }, { "session_token": "01904563d58f43f2b6e8fdcc610728dc", "session_token_date": "2021-12-22 07:53:54.742402", "expires_at": "2021-12-25 15:53:54.742402" } ] }
Update Session Token
Promote an existing session token.
- POST /api/public/update_session_token
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_session_token": { "session_token": "b8885ffe108f491dbb66be31bceb34c2" } }
Example response:
{ "session_token": { "session_token": "b8885ffe108f491dbb66be31bceb34c2", "session_token_date": "2021-12-22 08:11:52.913849", "expires_at": "2021-12-23 08:11:52.913849" } }
Delete Session Token
Delete a single session token for the user.
- POST /api/public/delete_session_token
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_session_token": { "session_token": "b8885ffe108f491dbb66be31bceb34c2" } }
Example response:
{}
Delete Session Tokens
Delete all session tokens for a given user.
- POST /api/public/delete_session_tokens
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_user": { "user_id": "009c3779-4fa0-4af8-9722-8daf195718c0" } }
Example response:
{}
Session Casting
Get Cast Configs
Get a list of Casting Configs.
- POST /api/public/get_cast_configs
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}" }
Example response:
{ "cast_configs": [ { "casting_config_name" : "Chrome Configuration", "cast_config_id": "e7fed0de23234a3084bffa3e8397759f", "image_id": "90c473864949488c902aa6e4adbf89a6", "image_friendly_name": "Chrome", "allowed_referrers": [ "acme.com", "contoso.com" ], "limit_sessions": false, "session_remaining": 0, "limit_ips": false, "ip_request_limit": 0, "ip_request_seconds": 0, "error_url": null, "enable_sharing": false, "disable_control_panel": false, "disable_tips": false, "disable_fixed_res": false, "key": "abc123", "allow_anonymous": true, "group_id": "68d557ac4cac42cca9f31c7c853de0f3", "require_recaptcha": true, "group_name": "All Users", "kasm_url": "https://google.com", "dynamic_kasm_url": false, "dynamic_docker_network": false, "allow_resume": true, "enforce_client_settings": true, "allow_kasm_audio": true, "allow_kasm_uploads": false, "allow_kasm_downloads": false, "allow_kasm_clipboard_down": false, "allow_kasm_clipboard_up": false, "allow_kasm_microphone": false, "valid_until": "2022-06-20 10:00:00", "allow_kasm_sharing": false, "kasm_audio_default_on": true, "kasm_ime_mode_default_on": true } ] }
Response Format
- cast_configs json object:
A list of Casting Configs.
Get Cast Config
Get an existing Casting Config.
- POST /api/public/get_cast_config
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "cast_config_id": "ac3f18aa42ca4365874e51ab24f893c6" }
Example response:
{ "cast_config": { "casting_config_name": "Chrome Configuration", "cast_config_id": "e7fed0de23234a3084bffa3e8397759f", "image_id": "90c473864949488c902aa6e4adbf89a6", "image_friendly_name": "Chrome", "allowed_referrers": [ "acme.com", "contoso.com" ], "limit_sessions": false, "session_remaining": 0, "limit_ips": false, "ip_request_limit": 0, "ip_request_seconds": 0, "error_url": null, "enable_sharing": false, "disable_control_panel": false, "disable_tips": false, "disable_fixed_res": false, "key": "abc123", "allow_anonymous": true, "group_id": "68d557ac4cac42cca9f31c7c853de0f3", "require_recaptcha": true, "group_name": "All Users", "kasm_url": "https://google.com", "dynamic_kasm_url": false, "dynamic_docker_network": false, "allow_resume": true, "enforce_client_settings": true, "allow_kasm_audio": true, "allow_kasm_uploads": false, "allow_kasm_downloads": false, "allow_kasm_clipboard_down": false, "allow_kasm_clipboard_up": false, "allow_kasm_microphone": false, "valid_until": "2022-06-20 10:00:00", "allow_kasm_sharing": false, "kasm_audio_default_on": true, "kasm_ime_mode_default_on": true } }
Arguments
- cast_config_id string:
The ID of the casting config to be queried.
Response Format
- cast_config json object:
The requested Casting config.
Create Cast Config
Create a Session Casting Config
- POST /api/public/create_cast_config
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_cast_config": { "casting_config_name": "My New Configuration", "image_id": "5383dd0238a94554b4611d2a9f943cda", "allowed_referrers": [ "example.com", "contoso.com" ], "limit_sessions": false, "session_remaining": 0, "limit_ips": false, "ip_request_limit": 0, "ip_request_seconds": 0, "error_url": null, "enable_sharing": false, "disable_control_panel": false, "disable_tips": false, "disable_fixed_res": false, "key": "123", "allow_anonymous": false, "group_id": null, "require_recaptcha": false, "kasm_url": null, "dynamic_kasm_url": false, "dynamic_docker_network": false, "allow_resume": true, "enforce_client_settings": true, "allow_kasm_audio": true, "allow_kasm_uploads": false, "allow_kasm_downloads": false, "allow_kasm_clipboard_down": false, "allow_kasm_clipboard_up": false, "allow_kasm_microphone": false, "valid_until": "2022-06-20 10:00:00", "allow_kasm_sharing": false, "kasm_audio_default_on": true, "kasm_ime_mode_default_on": true } }
Example response:
{ "cast_config": { "casting_config_name": "My New Configuration", "cast_config_id": "c423b160dc884000981da374842b0ef8", "image_id": "5383dd0238a94554b4611d2a9f943cda", "image_friendly_name": "Ubuntu Focal", "allowed_referrers": [ "example.com", "contoso.com" ], "limit_sessions": false, "session_remaining": 0, "limit_ips": false, "ip_request_limit": 0, "ip_request_seconds": 0, "error_url": null, "enable_sharing": false, "disable_control_panel": false, "disable_tips": false, "disable_fixed_res": false, "key": "123", "allow_anonymous": false, "group_id": null, "require_recaptcha": false, "group_name": null, "kasm_url": null, "dynamic_kasm_url": false, "dynamic_docker_network": false, "allow_resume": true, "enforce_client_settings": true, "allow_kasm_audio": true, "allow_kasm_uploads": false, "allow_kasm_downloads": false, "allow_kasm_clipboard_down": false, "allow_kasm_clipboard_up": false, "allow_kasm_microphone": false, "valid_until": "2022-06-20 10:00:00", "allow_kasm_sharing": false, "kasm_audio_default_on": true, "kasm_ime_mode_default_on": true } }
Arguments
- target_cast_config.casting_config_name string
The configuration name.
- target_cast_config.image_id string:
The Image Id to use for the casting config.
- target_cast_config.allowed_referrers* list:
A list of domains allowed as referrers when a casting link is visited.
- target_cast_config.limit_sessions* bool:
When enabled, the total number of sessions for this config will be limited.
- target_cast_config.session_remaining* integer
The number of sessions that are allowed to be spawned from this casting link.
- target_cast_config.limit_ips* integer
When enabled, the system will limit the number of requests that will employ rate-limiting based on the source IP of the request. (e.g limiting requests to 1 sessions per 60 seconds)
- target_cast_config.ip_request_limit* bool
When limit_ips is enabled, this value is used as the total number of sessions that are allowed for the given time period as defined in Within Seconds.
- target_cast_config.ip_request_seconds* bool
When Llimit_ips is enabled, this value sets the timeframe (in seconds) that is used for the source IP.
- target_cast_config.error_url* bool
If defined, the user will be pushed to this URL when an error (such as IP rate limit violation) occurs. If left blank, an internal error page is shown.
- target_cast_config.enable_sharing* bool
When enabled, this session will automatically have sharing activated.
- target_cast_config.disable_control_panel* bool
When enabled, the Control Panel widget is not shown for the sessions.
- target_cast_config.disable_tips* bool
When enabled, the Tips dialogue is not shown when a user enters a session.
- target_cast_config.disable_fixed_res* bool
When enabled and the session is in sharing mode, the resolution will be dynamic. The resolution is typically fixed when a session enters sharing mode.
- target_cast_config.key* bool
The unique identifier for a Casting URL. If 123abc is the key, users will launch sessions via the following URL https://my.kasm.server/#/cast/123abc
- target_cast_config.allow_anonymous* bool
If enabled, requests to the Casting URL will not require authentication. Instead the system will create an anonymous users account for each new request.
- target_cast_config.group_id* bool
When Allow Anonymous is enabled, the system will create new user accounts for each new request. These anonymous users accounts will automatically be added to the All Users Group and an additional Group defined here. Administrators can configure the appropriate Group Settings to configure permissions such as allow_kasm_downloads etc on this Group.
- target_cast_config.require_recaptcha* bool
When Allow Anonymous is enabled, administrators can choose to have requests validated by Google reCAPTCHA . To use this feature, the Google reCAPTCHA Private Key and Google reCAPTCHA Site Key properties must be set in the Server Settings.
- target_cast_config.kasm_url* bool
If defined, this value will populate as the KASM_URL environment variable for created or assigned Staged Sessions. These values are often used in the Docker Exec Configs of the browser Images.
- target_cast_config.dynamic_kasm_url* bool
When enabled, the user is allowed to append a kasm_url query argument to the cast url. e.g https://kasm.server/#/cast/123?kasm_url=example.com If present the system will use this value as the KASM_URL. When used in conjunction with Allow Resume, this will open a new tab with the specified KASM_URL when the session is resumed
- target_cast_config.dynamic_docker_network* bool
When enabled, the user is allowed to append a docker_network query argument to the cast url. e.g https://kasm.server/#/cast/123?docker_network=example_network The Image used must have Allow Network Selection enabled.
- target_cast_config.allow_resume* bool
When enabled, authenticated users who already have a running session will have their session resumed instead of having a new session created when connecting to the same Casting URL
- target_cast_config.enforce_client_settings* bool
When enabled, the client settings listed below will be enforced on the session , overriding the client settings attached to the user’s group(s)
- target_cast_config.allow_kasm_audio* bool
When enabled and, the staged session will support streaming audio from the session to the user. Applicable if enforce_client_settings is enabled.
- target_cast_config.allow_kasm_uploads* bool
When enabled, the staged session will allow the user to upload files from their local computer to the session via the upload widget in the control panel. Applicable if enforce_client_settings is enabled.
- target_cast_config.allow_kasm_downloads* bool
When enabled, the staged session will allow download files from the session to their local computer via the control panel download widget. Applicable if enforce_client_settings is enabled.
- target_cast_config.allow_kasm_clipboard_down* bool
When enabled, the staged session will allow copying data from the session to the users local computer via the clipboard. Applicable if enforce_client_settings is enabled.
- target_cast_config.allow_kasm_clipboard_up* bool
When enabled, the staged session will allow copying data from the user’s local computer to the session. Applicable if enforce_client_settings is enabled.
- target_cast_config.allow_kasm_microphone* bool
When enabled, the staged session will allow the user to pass their local microphone into the session. Applicable if enforce_client_settings is enabled.
- target_cast_config.valid_until* bool
When defined, the casting link will only be valid until this time, after which the client will be presented with an error. Defined in UTC.
- target_cast_config.allow_kasm_sharing* bool
When enabled, the user will be able to place their session in sharing mode. Applicable if enforce_client_settings is enabled.
- target_cast_config.kasm_audio_default_on* bool
When disabled, the audio service will be muted by default. Applicable if enforce_client_settings is enabled.
- target_cast_config.kasm_ime_mode_default_on* bool
When enabled, IME mode will be enabled by default if the doesnt already have a local preference set. Applicable if enforce_client_settings is enabled.
* Optional
Response Format
- cast_config json object:
The updated casting config.
Update Cast Config
Update a Session Casting Config
- POST /api/public/update_cast_config
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "target_cast_config": { "casting_config_name": "My New Configuration", "cast_config_id": "c423b160dc884000981da374842b0ef8", "image_id": "5383dd0238a94554b4611d2a9f943cda", "allowed_referrers": [ "example.com", "contoso.com" ], "limit_sessions": false, "session_remaining": 0, "limit_ips": false, "ip_request_limit": 0, "ip_request_seconds": 0, "error_url": null, "enable_sharing": false, "disable_control_panel": false, "disable_tips": false, "disable_fixed_res": false, "key": "123", "allow_anonymous": false, "group_id": null, "require_recaptcha": false, "kasm_url": null, "dynamic_kasm_url": false, "dynamic_docker_network": false, "allow_resume": true, "enforce_client_settings": true, "allow_kasm_audio": true, "allow_kasm_uploads": false, "allow_kasm_downloads": false, "allow_kasm_clipboard_down": false, "allow_kasm_clipboard_up": false, "allow_kasm_microphone": false, "valid_until": "2022-06-20 10:00:00", "allow_kasm_sharing": false, "kasm_audio_default_on": true, "kasm_ime_mode_default_on": true } }
Example response:
{ "cast_config": { "casting_config_name": "My New Configuration", "cast_config_id": "c423b160dc884000981da374842b0ef8", "image_id": "5383dd0238a94554b4611d2a9f943cda", "image_friendly_name": "Ubuntu Focal", "allowed_referrers": [ "example.com", "contoso.com" ], "limit_sessions": false, "session_remaining": 0, "limit_ips": false, "ip_request_limit": 0, "ip_request_seconds": 0, "error_url": null, "enable_sharing": false, "disable_control_panel": false, "disable_tips": false, "disable_fixed_res": false, "key": "123", "allow_anonymous": false, "group_id": null, "require_recaptcha": false, "group_name": null, "kasm_url": null, "dynamic_kasm_url": false, "dynamic_docker_network": false, "allow_resume": true, "enforce_client_settings": true, "allow_kasm_audio": true, "allow_kasm_uploads": false, "allow_kasm_downloads": false, "allow_kasm_clipboard_down": false, "allow_kasm_clipboard_up": false, "allow_kasm_microphone": false, "valid_until": "2022-06-20 10:00:00", "allow_kasm_sharing": false, "kasm_audio_default_on": true, "kasm_ime_mode_default_on": true } }
Arguments
- target_cast_config.cast_config_id string:
The ID of the desired casting config to update.
- target_cast_config.image_id string:
The Image Id to use for the casting config.
- target_cast_config.allowed_referrers* list:
A list of domains allowed as referrers when a casting link is visited.
- target_cast_config.limit_sessions* bool:
When enabled, the total number of sessions for this config will be limited.
- target_cast_config.session_remaining* integer
The number of sessions that are allowed to be spawned from this casting link.
- target_cast_config.limit_ips* integer
When enabled, the system will limit the number of requests that will employ rate-limiting based on the source IP of the request. (e.g limiting requests to 1 sessions per 60 seconds)
- target_cast_config.ip_request_limit* bool
When limit_ips is enabled, this value is used as the total number of sessions that are allowed for the given time period as defined in Within Seconds.
- target_cast_config.ip_request_seconds* bool
When Llimit_ips is enabled, this value sets the timeframe (in seconds) that is used for the source IP.
- target_cast_config.error_url* bool
If defined, the user will be pushed to this URL when an error (such as IP rate limit violation) occurs. If left blank, an internal error page is shown.
- target_cast_config.enable_sharing* bool
When enabled, this session will automatically have sharing activated.
- target_cast_config.disable_control_panel* bool
When enabled, the Control Panel widget is not shown for the sessions.
- target_cast_config.disable_tips* bool
When enabled, the Tips dialogue is not shown when a user enters a session.
- target_cast_config.disable_fixed_res* bool
When enabled and the session is in sharing mode, the resolution will be dynamic. The resolution is typically fixed when a session enters sharing mode.
- target_cast_config.key* bool
The unique identifier for a Casting URL. If 123abc is the key, users will launch sessions via the following URL https://my.kasm.server/#/cast/123abc
- target_cast_config.allow_anonymous* bool
If enabled, requests to the Casting URL will not require authentication. Instead the system will create an anonymous users account for each new request.
- target_cast_config.group_id* bool
When Allow Anonymous is enabled, the system will create new user accounts for each new request. These anonymous users accounts will automatically be added to the All Users Group and an additional Group defined here. Administrators can configure the appropriate Group Settings to configure permissions such as allow_kasm_downloads etc on this Group.
- target_cast_config.require_recaptcha* bool
When Allow Anonymous is enabled, administrators can choose to have requests validated by Google reCAPTCHA . To use this feature, the Google reCAPTCHA Private Key and Google reCAPTCHA Site Key properties must be set in the Server Settings.
- target_cast_config.kasm_url* bool
If defined, this value will populate as the KASM_URL environment variable for created or assigned Staged Sessions. These values are often used in the Docker Exec Configs of the browser Images.
- target_cast_config.dynamic_kasm_url* bool
When enabled, the user is allowed to append a kasm_url query argument to the cast url. e.g https://kasm.server/#/cast/123?kasm_url=example.com If present the system will use this value as the KASM_URL. When used in conjunction with Allow Resume, this will open a new tab with the specified KASM_URL when the session is resumed
- target_cast_config.dynamic_docker_network* bool
When enabled, the user is allowed to append a docker_network query argument to the cast url. e.g https://kasm.server/#/cast/123?docker_network=example_network The Image used must have Allow Network Selection enabled.
- target_cast_config.allow_resume* bool
When enabled, authenticated users who already have a running session will have their session resumed instead of having a new session created when connecting to the same Casting URL
- target_cast_config.enforce_client_settings* bool
When enabled, the client settings listed below will be enforced on the session , overriding the client settings attached to the user’s group(s)
- target_cast_config.allow_kasm_audio* bool
When enabled and, the staged session will support streaming audio from the session to the user. Applicable if enforce_client_settings is enabled.
- target_cast_config.allow_kasm_uploads* bool
When enabled, the staged session will allow the user to upload files from their local computer to the session via the upload widget in the control panel. Applicable if enforce_client_settings is enabled.
- target_cast_config.allow_kasm_downloads* bool
When enabled, the staged session will allow download files from the session to their local computer via the control panel download widget. Applicable if enforce_client_settings is enabled.
- target_cast_config.allow_kasm_clipboard_down* bool
When enabled, the staged session will allow copying data from the session to the users local computer via the clipboard. Applicable if enforce_client_settings is enabled.
- target_cast_config.allow_kasm_clipboard_up* bool
When enabled, the staged session will allow copying data from the user’s local computer to the session. Applicable if enforce_client_settings is enabled.
- target_cast_config.allow_kasm_microphone* bool
When enabled, the created session will allow the user to pass their local microphone into the session. Applicable if enforce_client_settings is enabled.
- target_cast_config.valid_until* bool
When defined, the casting link will only be valid until this time, after which the client will be presented with an error. Defined in UTC.
- target_cast_config.allow_kasm_sharing* bool
When enabled, the user will be able to place their session in sharing mode. Applicable if enforce_client_settings is enabled.
- target_cast_config.kasm_audio_default_on* bool
When disabled, the audio service will be muted by default. Applicable if enforce_client_settings is enabled.
- target_cast_config.kasm_ime_mode_default_on* bool
When enabled, IME mode will be enabled by default if the doesnt already have a local preference set. Applicable if enforce_client_settings is enabled.
* Optional
Response Format
- cast_config json object:
The updated casting config.
Delete Cast Config
Get an existing Casting Config.
- POST /api/public/delete_cast_config
Example request:
{ "api_key": "{{api_key}}", "api_key_secret": "{{api_key_secret}}", "cast_config_id": "ac3f18aa42ca4365874e51ab24f893c6", "casting_config_name": "Chrome Configuration", }
Example response:
{}Arguments
- cast_config_id string:
The ID of the casting config to be queried.
API Example
This is an example implementation of the Kasm Developer API using Python and Flask. The code can be downloaded from Bitbucket
