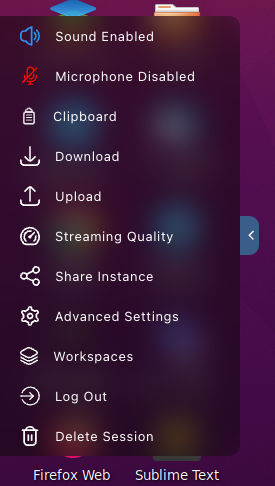

Control Panel
The in-session control panel provides the end-user with access to many tools and features that are useful for interacting with the remote desktop environment.
Streaming quality
Kasm Workspaces allows users to control settings that affect streaming quality which have direct impact not only on the image quality but also server performance and network bandwith usage.
The settings can be found in the Control Panel under the Streaming Quality section.
Quality presets
In order to simplify settings Kasm Workspaces provides a range of preset qualities that can be used to easily control the rendering quality.
Name |
Description |
|---|---|
Static |
A fixed resolution of 1280x720. The image is scaled client side to fit as much screen as possible while preserving the aspect ratio. The frame rate is limited at 24fps. |
Low |
A dynamic resolution with a maximum width of 1280. The height is scaled accordingly while preserving the aspect ratio. The image is scaled client side to fill the screen. The frame rate is limited at 24fps. |
Medium |
A dynamic resolution matching client’s resolution, resized automatically. The frame rate is limited at 60ps. |
High |
Same as the medium quality but with a much higher image quality. The frame rate is limited at 60ps. |
Extreme |
Same as the high quality but with the video mode disabled. The frame rate is limited at 60ps. |
Lossless |
A true lossless compression providing no loss in image quality. Recommended for local networks due to very high bandwidth requirements. The frame rate is limited at 60fps. |
Advanced settings

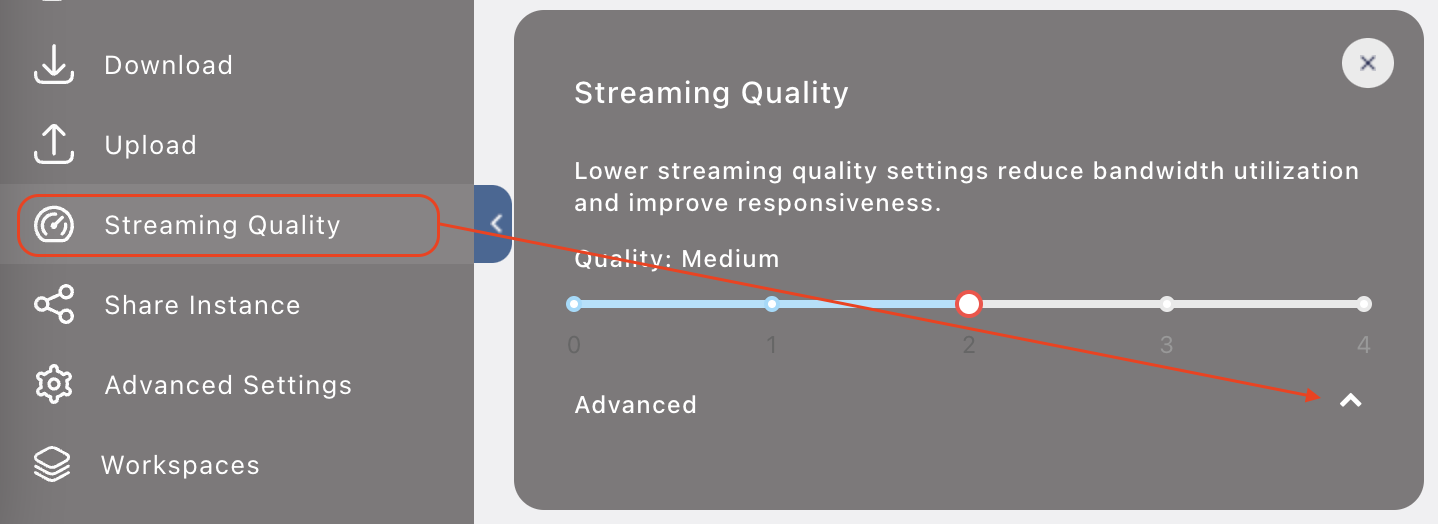

Users that require a finer control over streaming quality can use the advanced settings that can be found by toggling the Advanced dropdown available when a medium or higher quality is chosen.
The following settings can be adjusted:
Name |
Description |
|---|---|
Scaling mode |
Controls where the image scaling is applied. |
Set Resolution |
Forces the server to use a given resolution. |
Max FPS |
Limits the frame rate at which the server can stream. |
Performance Stats |
Toggles showing of performance related statistics (CPU, Network, FPS) |
